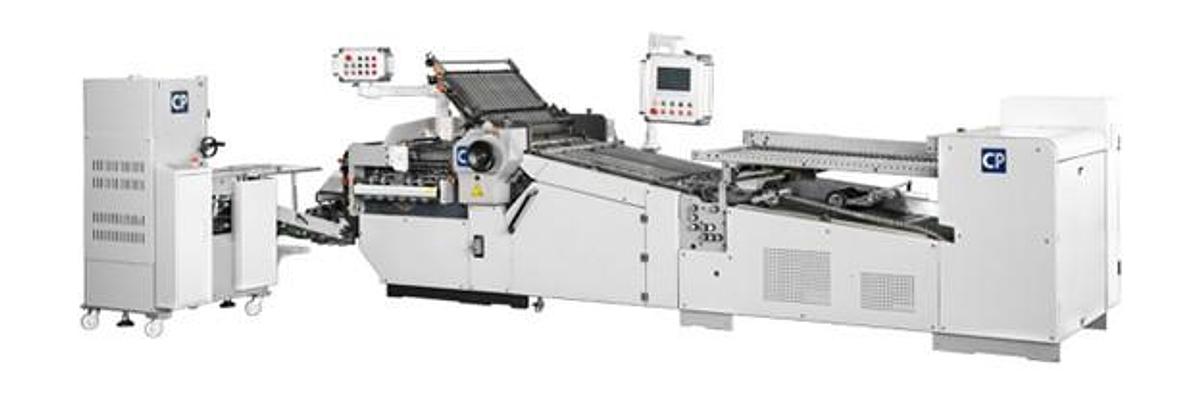

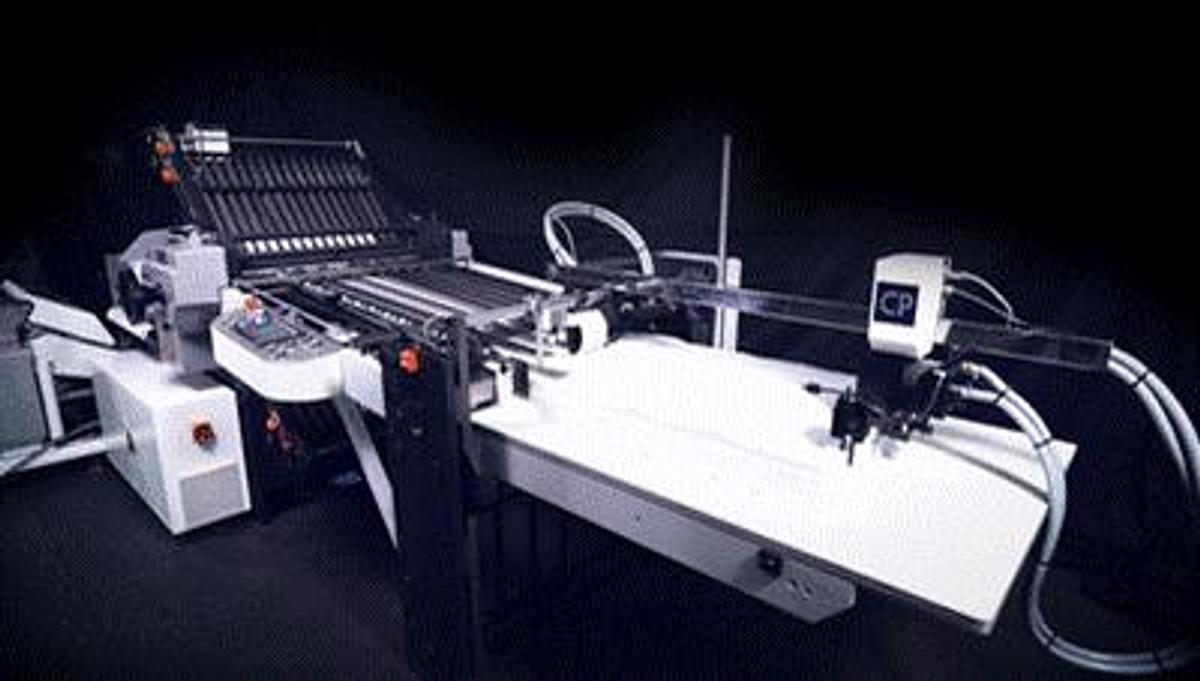

HXCP CP Round Pile Buckle / Knife Paper Folder

The CP highspeed round pile combination folding machine is designed to accommodate medium to long run lengths due to its non-stop operation allowing for up to a 15% increase in output. The machine’s extreme versatility allows for easy folding of thin papers, pre-folded, pre-perforated, or creased signatures.

The sheetfed folder can be supplied as a combination folder with 6 or 4 plates in the 1^st unit and a choice of either two or three combination knife units to provide a 16 or 32 page folder.

If a combination machine is not preferred, then the round pile folder can be offered as an all buckle folding machine consisting of 6, 4, or 2 buckle plates in each unit.

Crimping knife, slitting knife, or creasing knives can be utilized. There are 3 variants available for various sheet size requirements along with further customization options to fit your exact production needs.

The machine consists of the following:

·       Round Pile Continuous Feeder

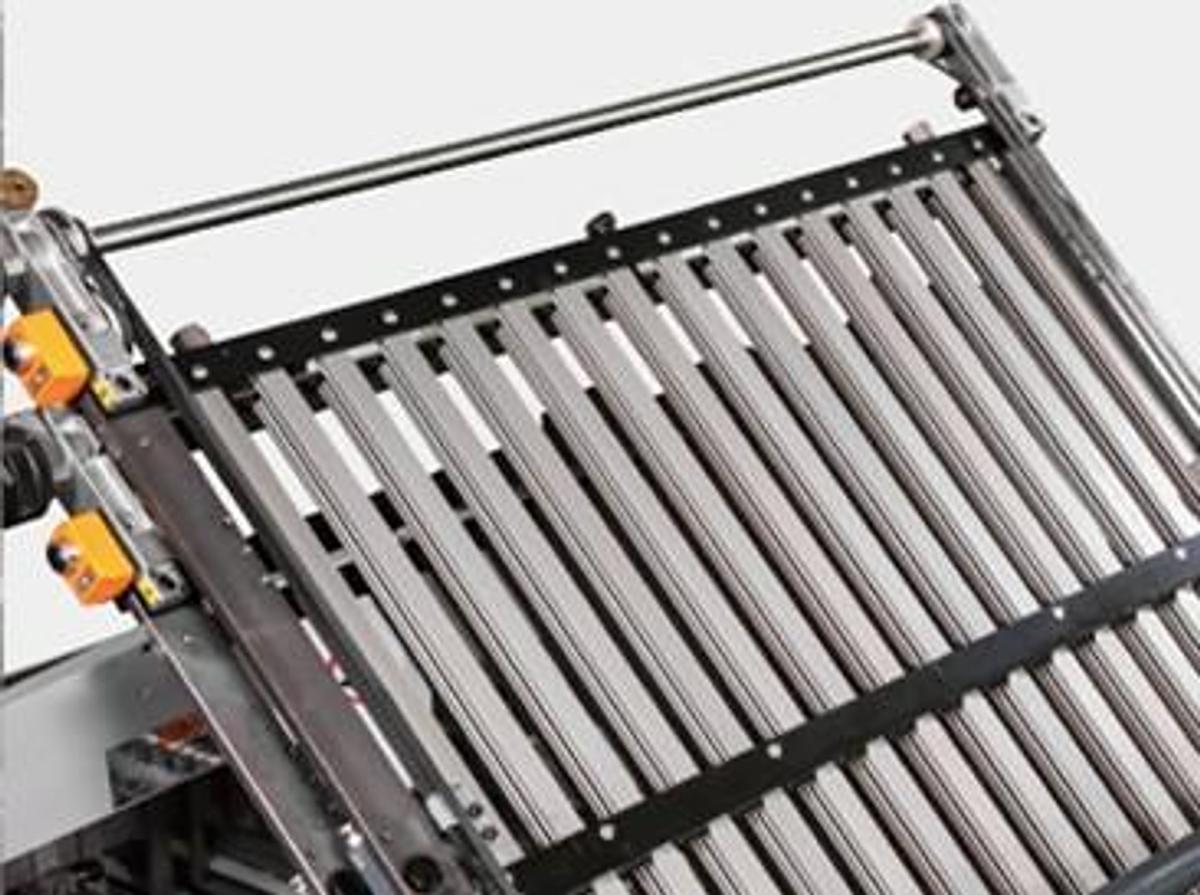

·       Aluminum Scratch-Proof Buckle Plates

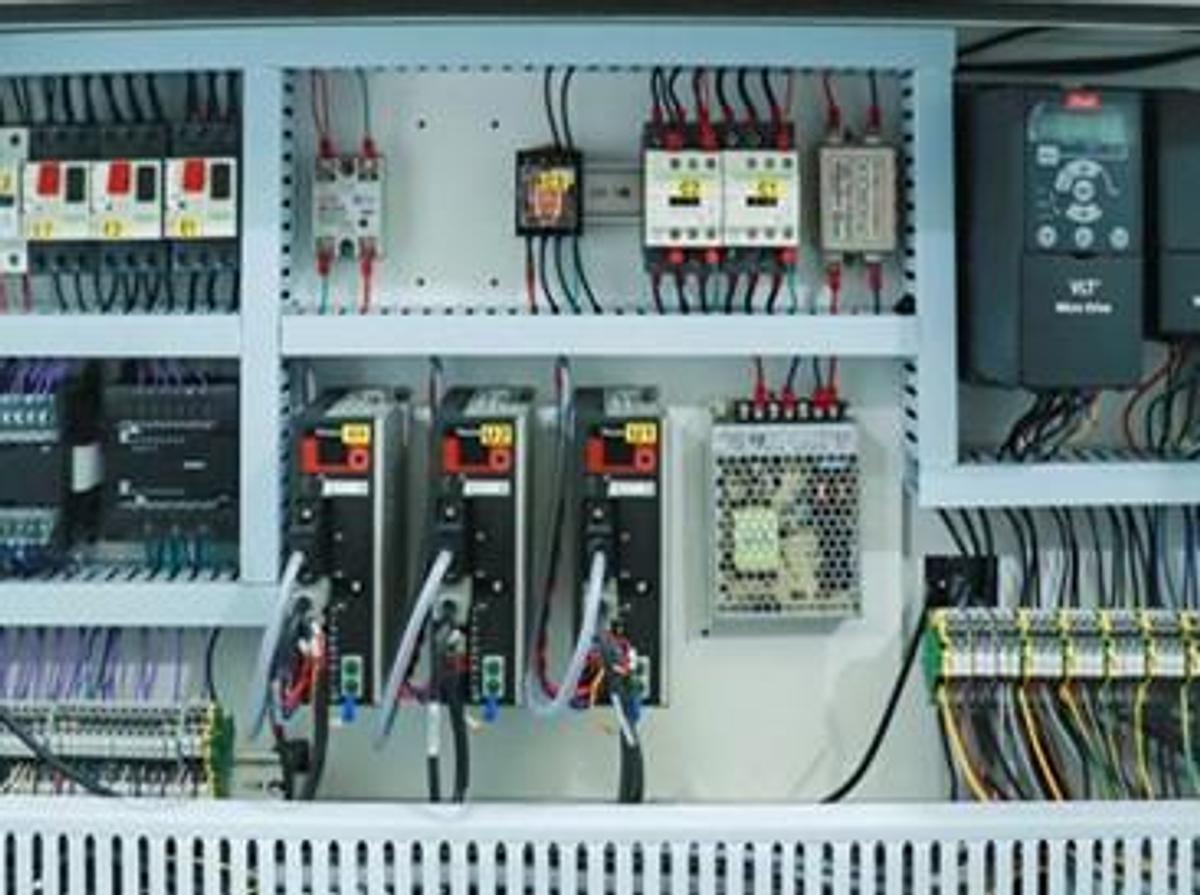

·       Servo Driven Electric Knives

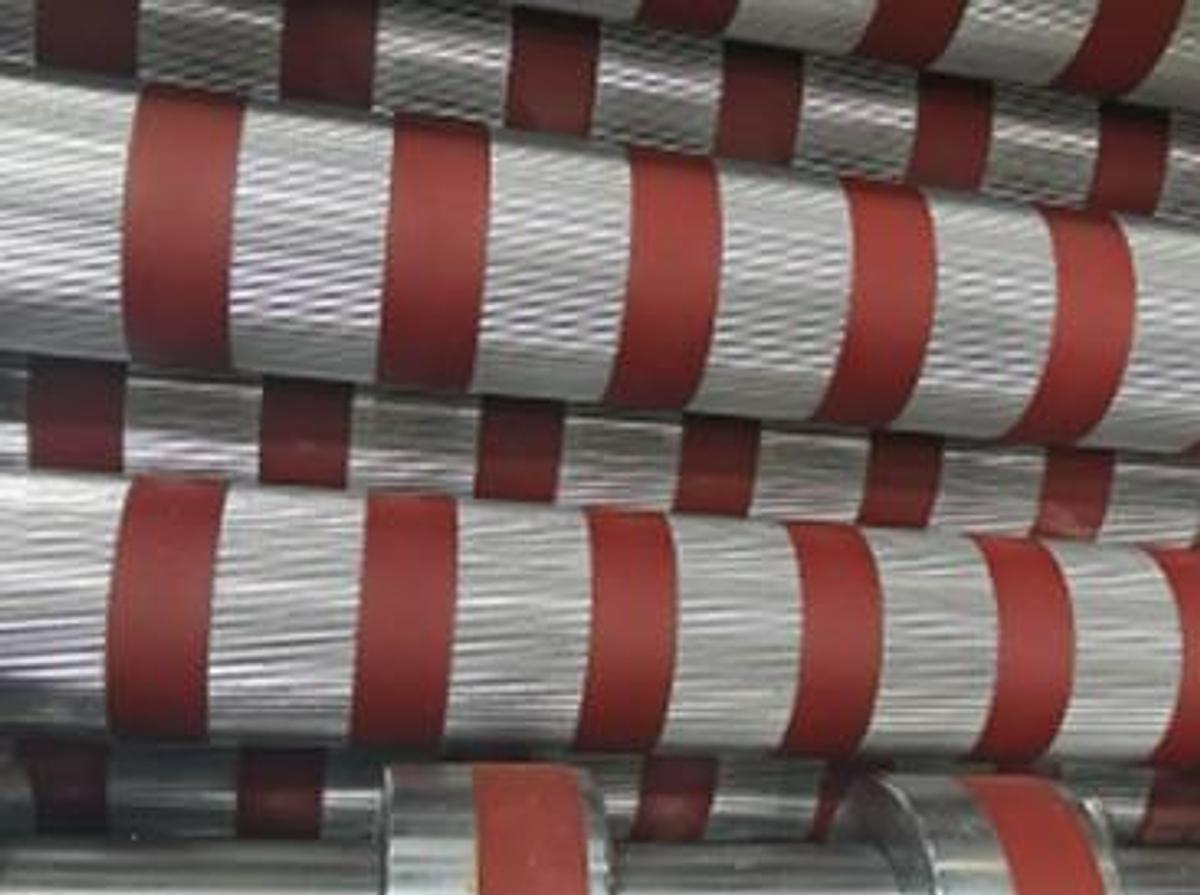

·       Fine & Straight Grain Folding Rollers

·       Sheet Detection System

·       Noiseless Air Pump

·       Automatic Lubrication Device

·       Up/Down Knife Folding Unit

·       Down/Up Knife Folding Unit

·       Four-Directional Knife Folding Unit for Quadruple Fold

·       Multiple Delivery Options

o   Horizontal Presser Stacker & Bundling Delivery

o   Stream Presser Stacker Delivery

o   Stream Stack Delivery

Model CP66-R

Maximum Sheet Size: 26” x 41” (660 x 1040mm)

Minimum Sheet Size: 7.08” x 3.94” (180 x 100mm)

Sheet Thickness: 40 – 210g/m2

Mechanical Speed: 690 feet/minute (210 meters/minute)

Model CP78-R

Maximum Sheet Size: 30.7” x 44.88” (780 x 1140mm)

Minimum Sheet Size: 7.87” x 5.9” (200 x 150mm)

Sheet Thickness: 40 – 210g/m2

Mechanical Speed: 690 feet/minute (210 meters/minute)

Model CP80-R

Maximum Sheet Size: 31.5” x 47.24” (800 x 1200mm)

Minimum Sheet Size: 7.87” x 5.9” (200 x 150mm)

Sheet Thickness: 40 – 210g/m2

Mechanical Speed: 690 feet/minute (210 meters/minute)
