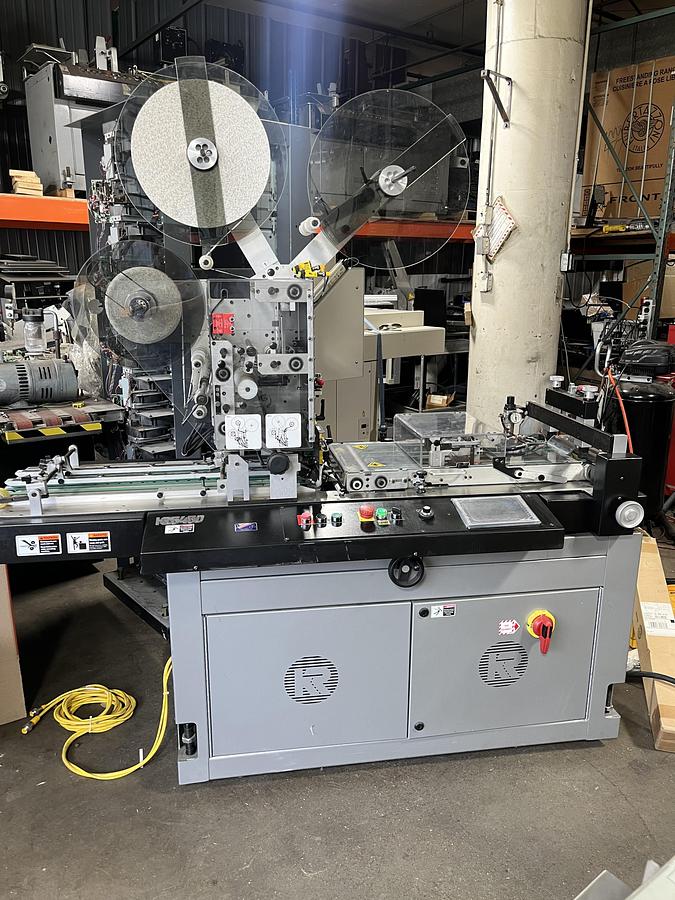

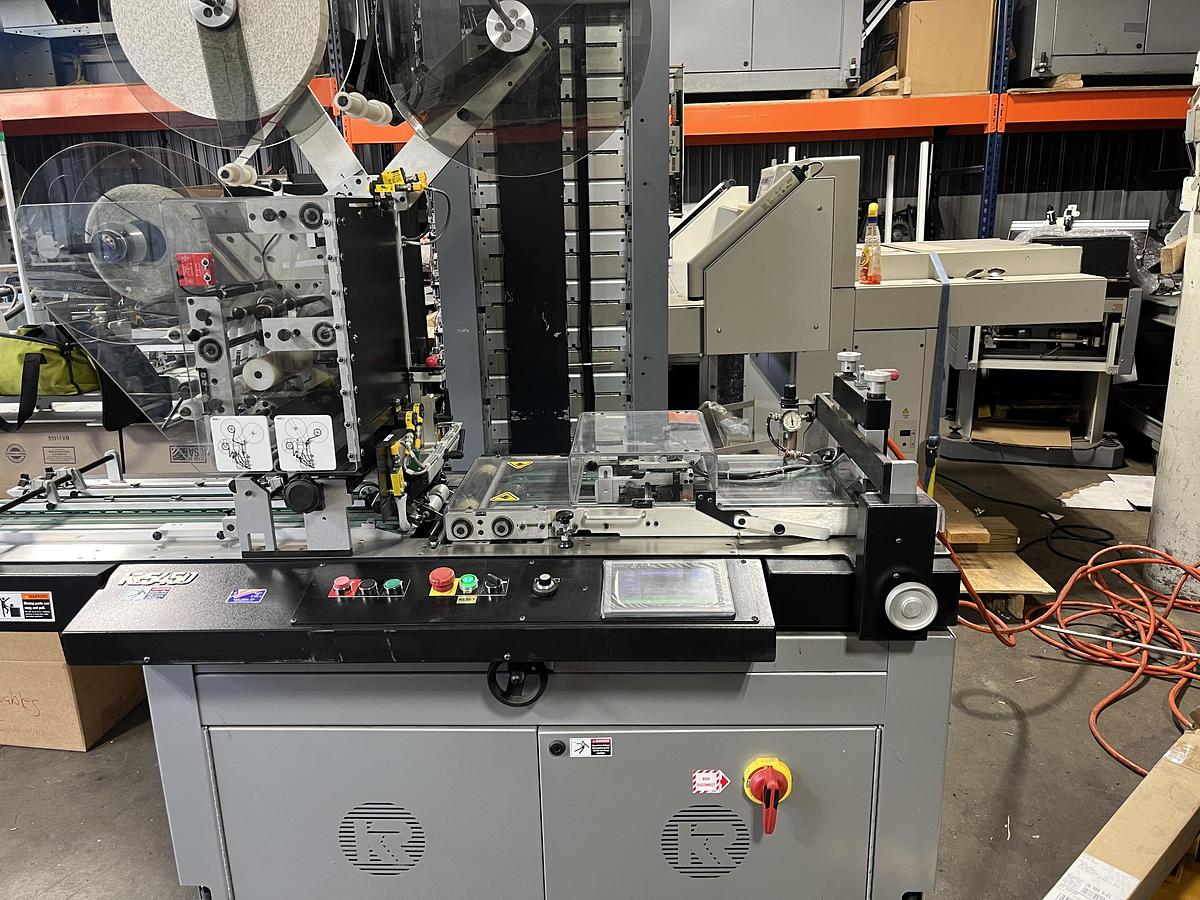

2014 Kirk-Rudy 545D Tabber

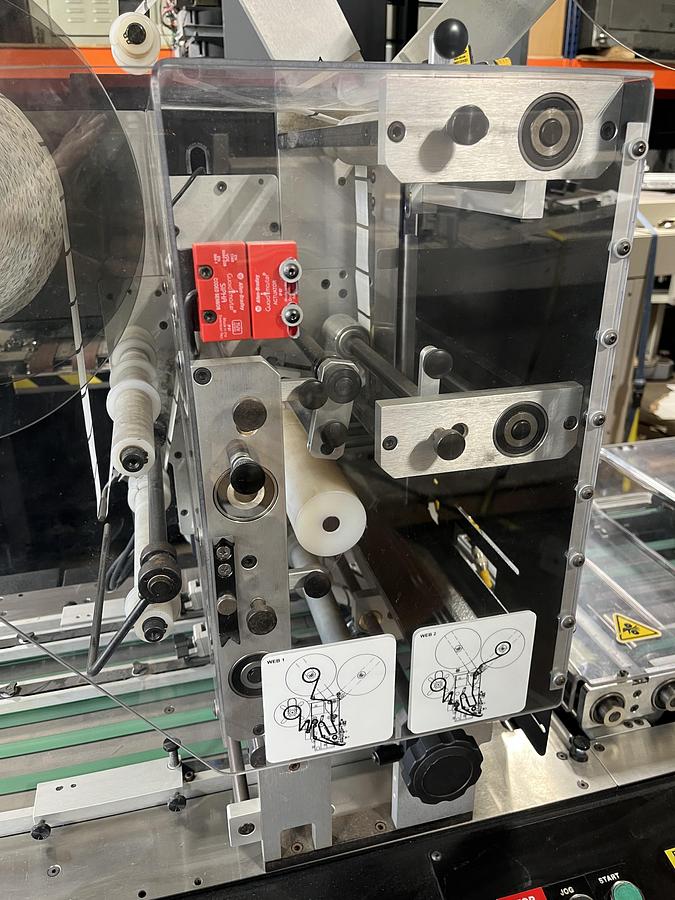

Designed and engineered to meet the USPS specifications for self-mailers and booklets that require multiple tabs per piece, the KR545D utilizes a unique dual web applicator and innovative, patented, trailing edge tab mechanism.

• Servo driven web and trailing edge kicker
• Handles large 18" diameter rolls
• Also applies labels and stamps
• Operates inline with standard addressing systems

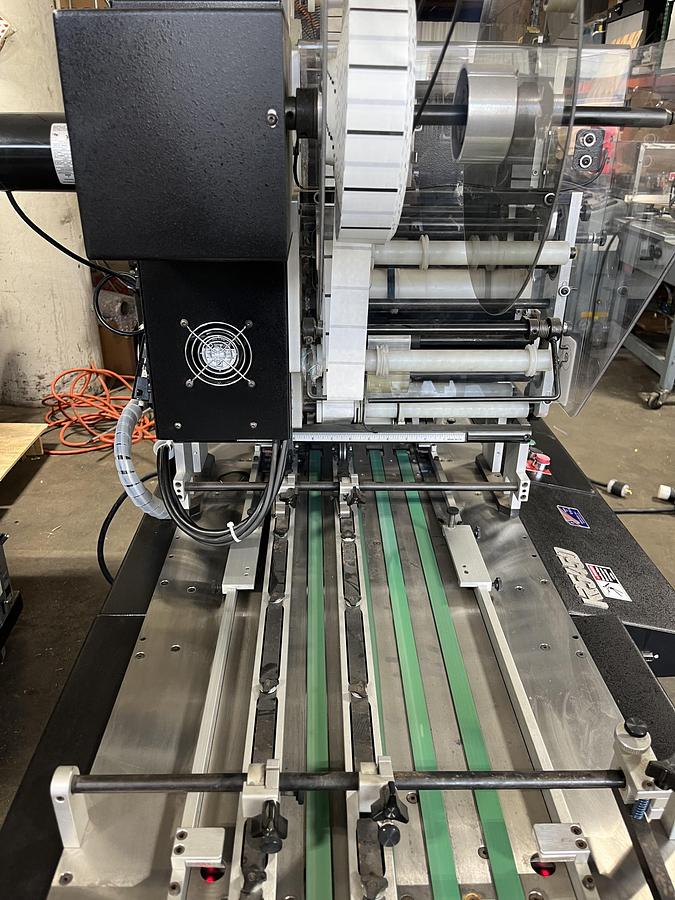

• Side register belts for tight tabs

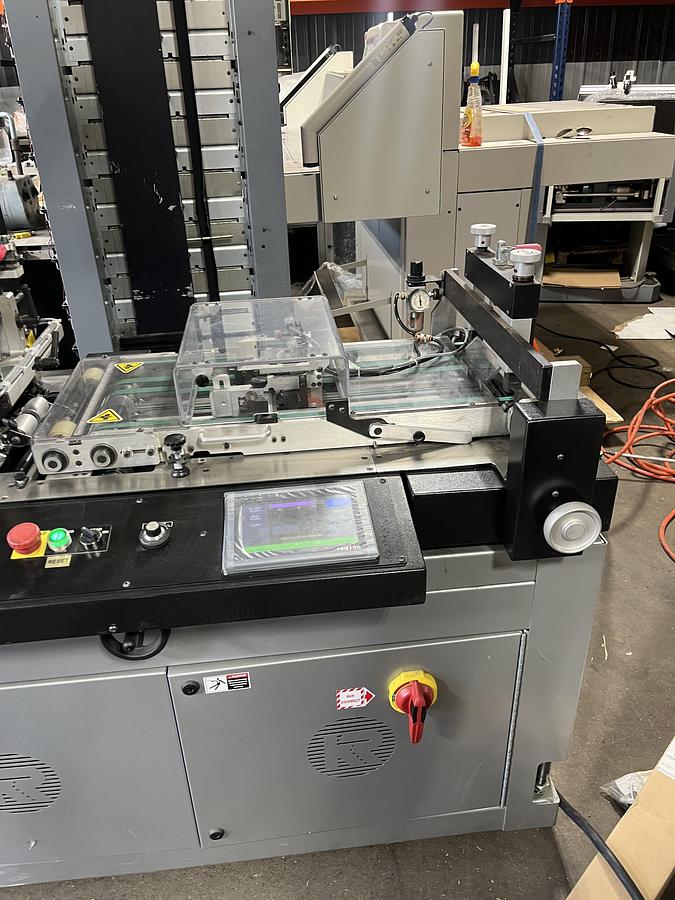

• Touchscreen operator interface
• Side to side tabletop adjustment
• Quick-release upper belt system
• Quick-release peel plates
• Stop-in/Stop-out electrical interface

Specifications

Maximum Speed: 350 fpm (138 mpm)

Maximum Material Size: 11" x 12" x 0.25" (279 x 304.8 x 6.3mm)

Minimum Material Size: 3.5" x 3.5" x 0.008" (89 x 89 x 2mm)

Tabs/Labels Size Range: 1" - 1.5" Diameter (254 - 381mm)

Tab Quantity: 1 to 6 Tabs or Stamps

Tab Accuracy: +/- 0.0625" (1.6mm)

Labels: 3" x 2" (76.2 x 51mm)
