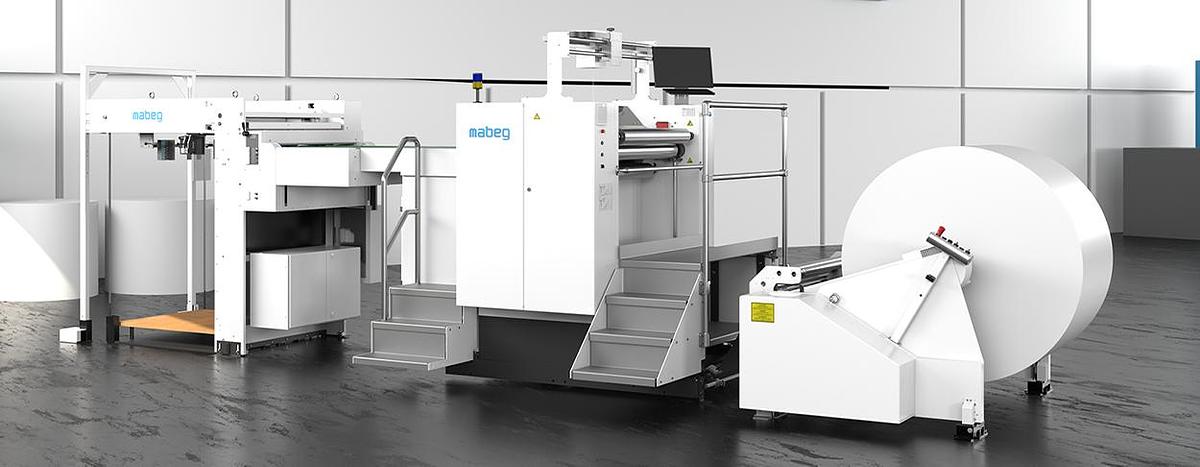

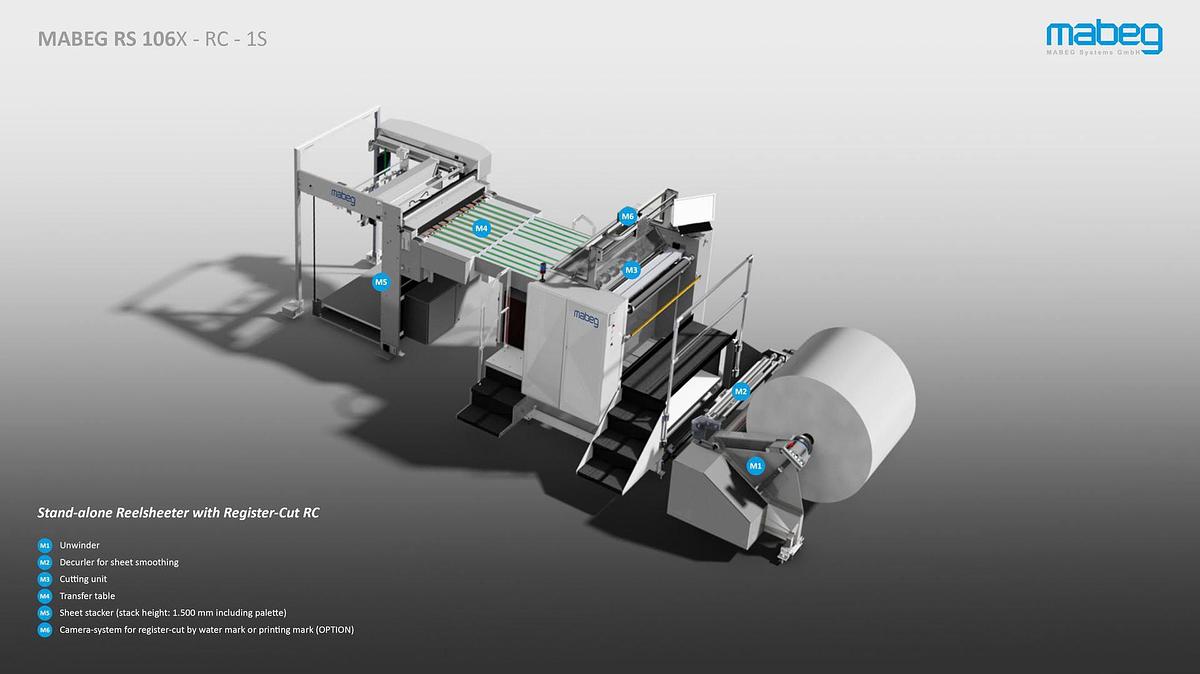

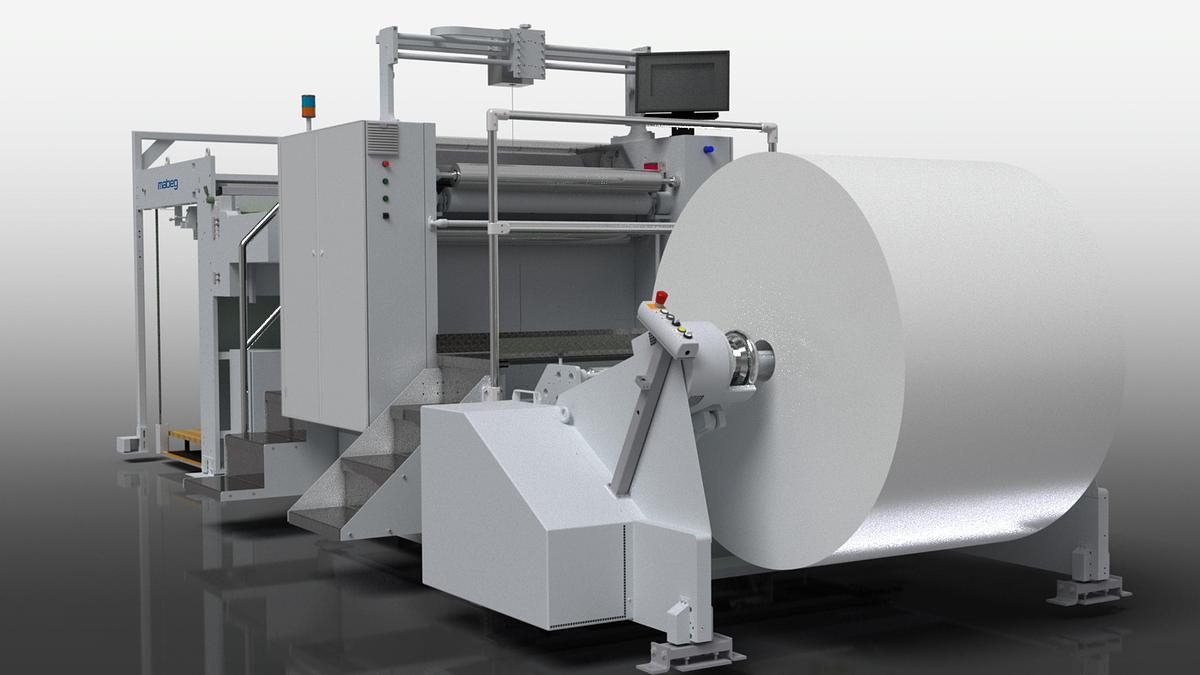

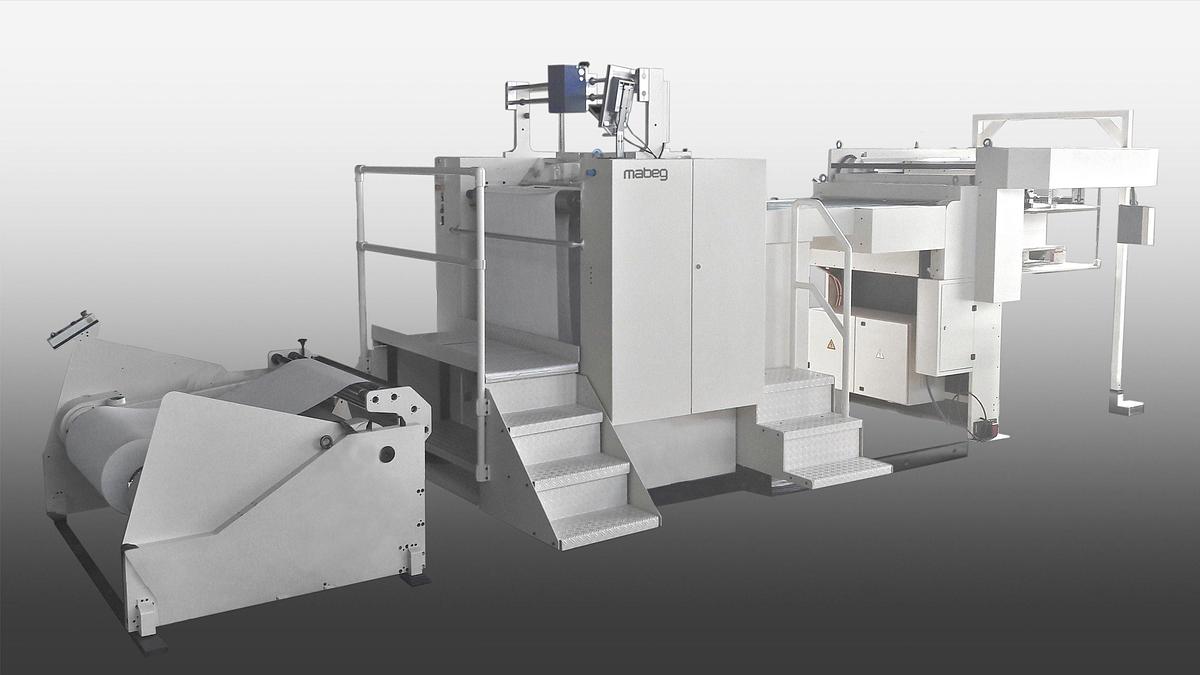

NEW MABEG RS 106X – RC – 1S Standalone Reel Sheeter

NEW! AVAILABLE IMMEDIATELY. The MABEG RS 106X – RC – 1S Standalone Reel Sheeter is a high-performance, compact reel-to-sheet converting system engineered to deliver exceptional cutting accuracy, production efficiency, and operational flexibility. Designed for demanding printing, packaging, paper manufacturing, and security printing applications, this advanced system combines MABEG's proven reel sheeting technology with the integrated MST 3 sheet stacker to provide a complete, standalone converting solution.

Capable of processing paper and paperboard directly from reels into precisely cut, neatly stacked sheets, the RS 106X – RC – 1S helps manufacturers streamline production, reduce material handling, minimize waste, and improve overall workflow efficiency.

Its innovative open-design construction, intelligent controls, and automated adjustments allow for quick setup, easy maintenance, and rapid job changeovers, making it an ideal solution for operations requiring precision, flexibility, and dependable performance.

Key Features & Benefits

• High-Speed Reel-to-Sheet Conversion: Capable of producing up to 12,000 sheets per hour, supporting efficient, high-volume production requirements.
• Precision Cross Cutting: Delivers accurate, consistent sheet lengths to maintain quality and minimize material waste.
• Integrated MST 3 Sheet Stacker: Automatically collects and stacks finished sheets, providing efficient material handling and organized output for downstream operations.
• Optional Advanced Register Cutting: Available with cutting-mark sensor technology or a high-resolution camera system for precise cutting relative to printed marks or watermarks.
• Fast Job Changeovers: Intelligent machine controls and automated adjustments minimize setup time and allow operators to transition efficiently between production requirements.
• Easy Fast Adjustment (EFA) System: Integrated pneumatic locking technology allows quick, accurate repositioning of sheet stops without time-consuming manual adjustments.
• Compact Standalone Configuration: Combines reel sheeting and stacking into one independent production system, providing flexibility without requiring direct integration into an existing printing press.
• Operator-Friendly Design: Open machine construction provides excellent accessibility for setup, routine maintenance, and servicing.
• Versatile Material Processing: Accommodates a wide range of paper and paperboard substrates, making it suitable for commercial, industrial, and specialty applications.
• Reduced Material Waste: Accurate cutting and efficient reel processing help maximize material utilization and support cost-effective production.

Technical Specifications

Web width min.500 mm – max. 1060 mm

Cut-off length min.450 mm – max. 780 mm optional max. 1.010 mm

Material Paper and paperboard 60 g/m² – 250 g/m²

Reel diameter max. 1.500 mm

Stack weight max. 1.500 kg

Stack height max. 1.500 mm

Performance max. 12.000 sheets/h or 200 m (max. mechanical performance)*

*The production speed depends upon the application, the substrate (type, paper weight, material thickness), the sheet size and the ambient conditions.
