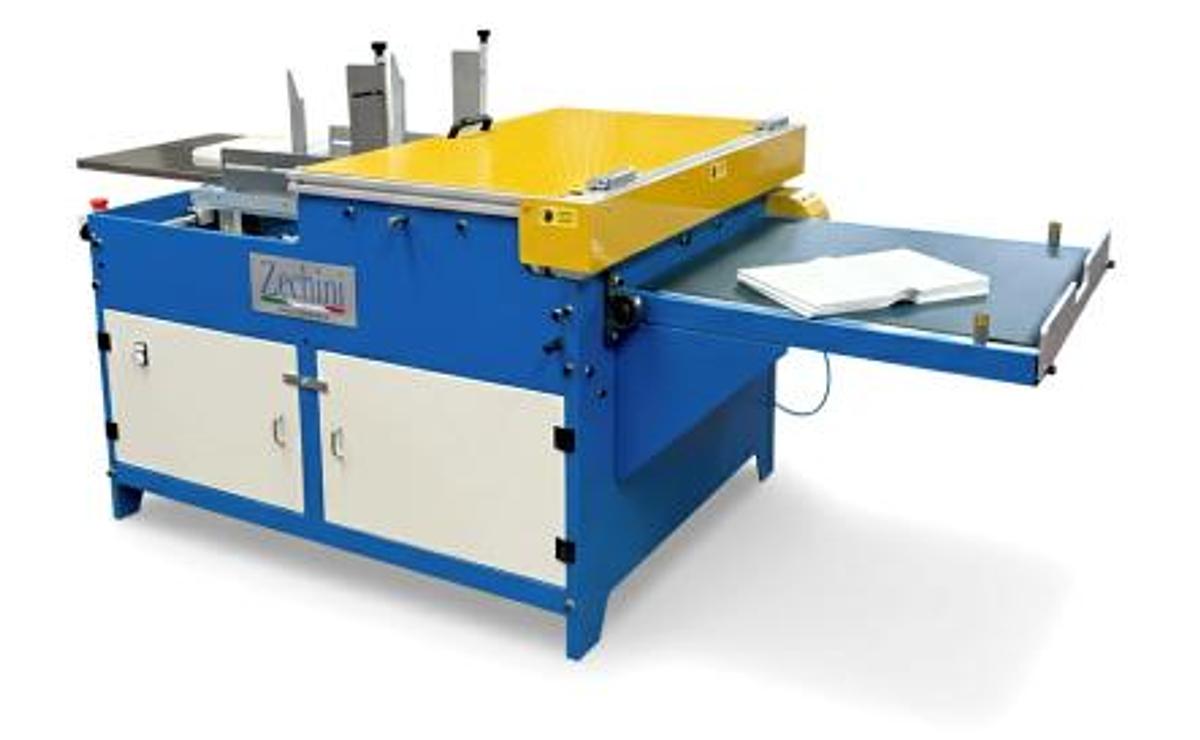

Zechini BETA 25 Automatic Case Spine Rounding Machine
Zechini BETA 25 Automatic Case Spine Rounding Machine
Contact us for price
or
Call +1 847-450-0786
Description
BETA 25 is designed to automatically round the spines of hardcovers, ensuring they fit the book
block perfectly. It uses a pneumatic forming system and an air cylinder that heats the mold, making
the process fast and efficient. The molds can be easily replaced to adapt to different book
thicknesses, and their curves are customizable. In addition, both the forming time and heating
temperature are fully adjustable, offering precise control over the process.
Specifications
| Manufacturer | Zechini |
| Model | BETA 25 Automatic Case Spine Rounding Machine |
| Condition | New |
| Stock Number | Beta 25 |
| Case Spine Width | .59" - 2.76" (15-70 mm) |
| Max Length of Case Spine (H) | 16.53" |
| Case Width | 6.89" - 31.10" (175 - 790 mm) |
| * Max speed | up to 800 pcs/h |
| Dimensions | 98" x 39.37" x 39.37" (250 x 100 x 100 cm) |
| * Weight | 330.69 lbs (150 kgs) |
