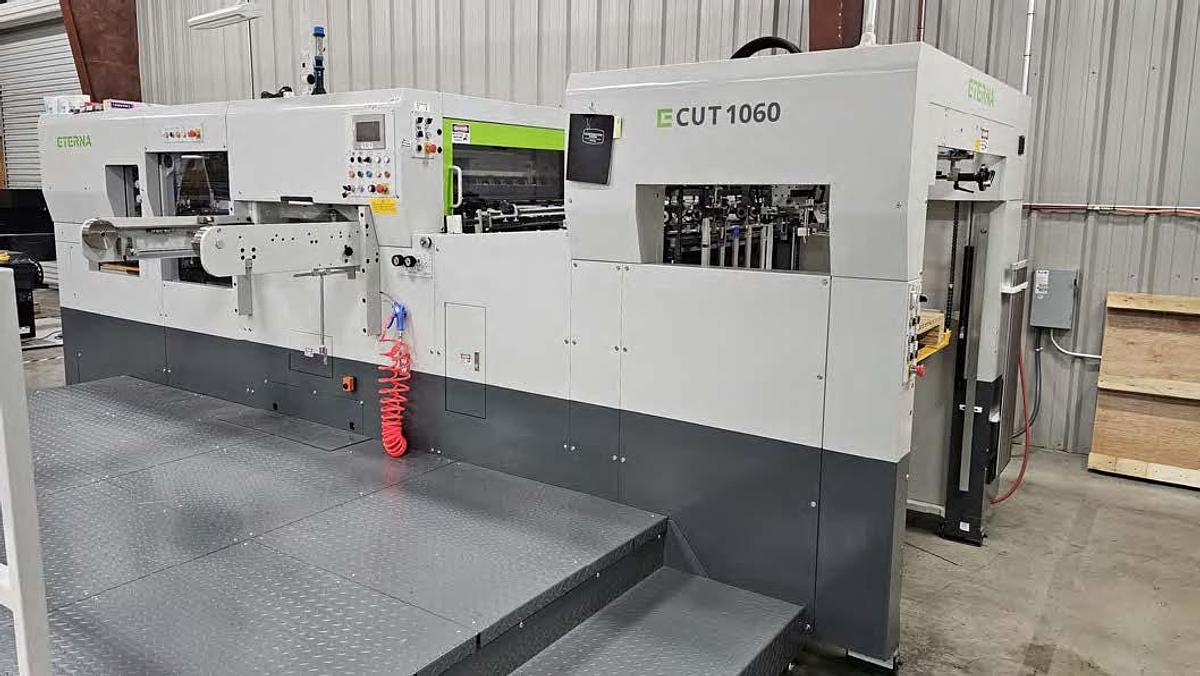

2024 Eterna ECUT 1060E Automatic Die Cutter with Stripping

Only 611 Production Hours! Fully Automatic 40” Die Cutter with in-line Stripping.

Maximum Sheet Size: 41.75" x 29.5" (1060mm x 750mm)

Minimum Sheet Size: 15.75" x 14.1875" (400mm x 360mm)

Maximum Mechanical Speed: 7,500 sheets per hour

Maximum Cutting Pressure: 300 tons

Maximum Pile Height: 1250mm

Minimum Gripper Margin: 8mm

Cutting Rule Height: 23.8mm

Stock Range: (Cardboard) 80 – 2000 g/m2

                       (Corrugated) thickness ≤ 4mm

Feeder

• Preloading system with either preloading rail cart or pallet jack to reduce down time.
• Non-stop feeder with automatic pile lift.
• Four pick up and four forward suction heads with angle adjustment.
• Patented turbo spiral air blower for smooth sheet transport.

Feeding Table & Sheet Registration System

• Slanted Feed Table to obtain stable and accurate registration especially for lightweight paper at high speed.
• Side lays on both left and right hand sides push and pull convertible.
• Sheet slow down device of feeding belts with selective on/off switch to ensure accurate registration of the sheet at front lays.

Die Cutting Section

• Pneumatic push button diechase locking mechanism to ensure safe and operator-friendly job change.
• Gripper bar driving chain tension wheel to keep the tension constant.
• Digital cutting pressure tonnage display with maximum pressure limit protection.
• Seven high-precision alloy gripper bars. State-of-art 3 cam index gripper bar driving system to ensure smooth and precise gripper bar intermittent movement.
• Air blasting nozzle bar for stretching lightweight paper.

Stripping Section

• Triple action movement of the upper and lower strip­ping frames with lower spring loaded stripping pins.
• Upper and lower stripping tool mounting frame can be pulled out for job setup.
• Gripper edge removal system as standard.
• Motorized upper frame suspending hoister

Delivery Section

• Non-stop delivery with automatic slow down, designed with safety device.
• Sheet-stretching air blower and sheet tail pressing down brush bar.
• Rear and side joggers with easy position adjustments.
• Counter with tape inserter as standard.
