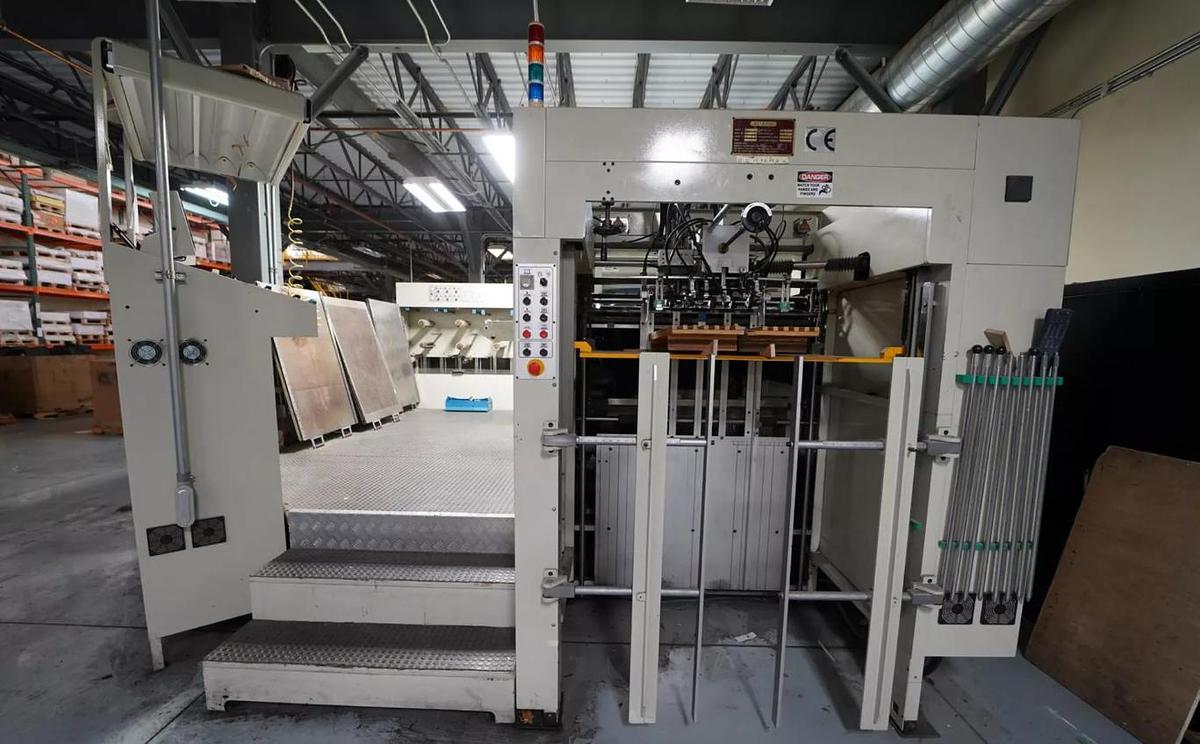

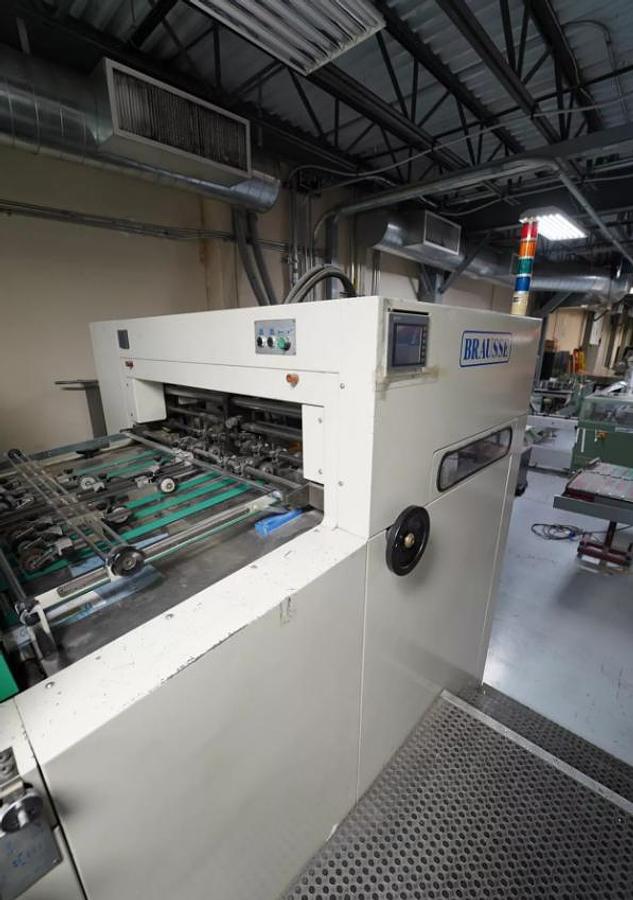

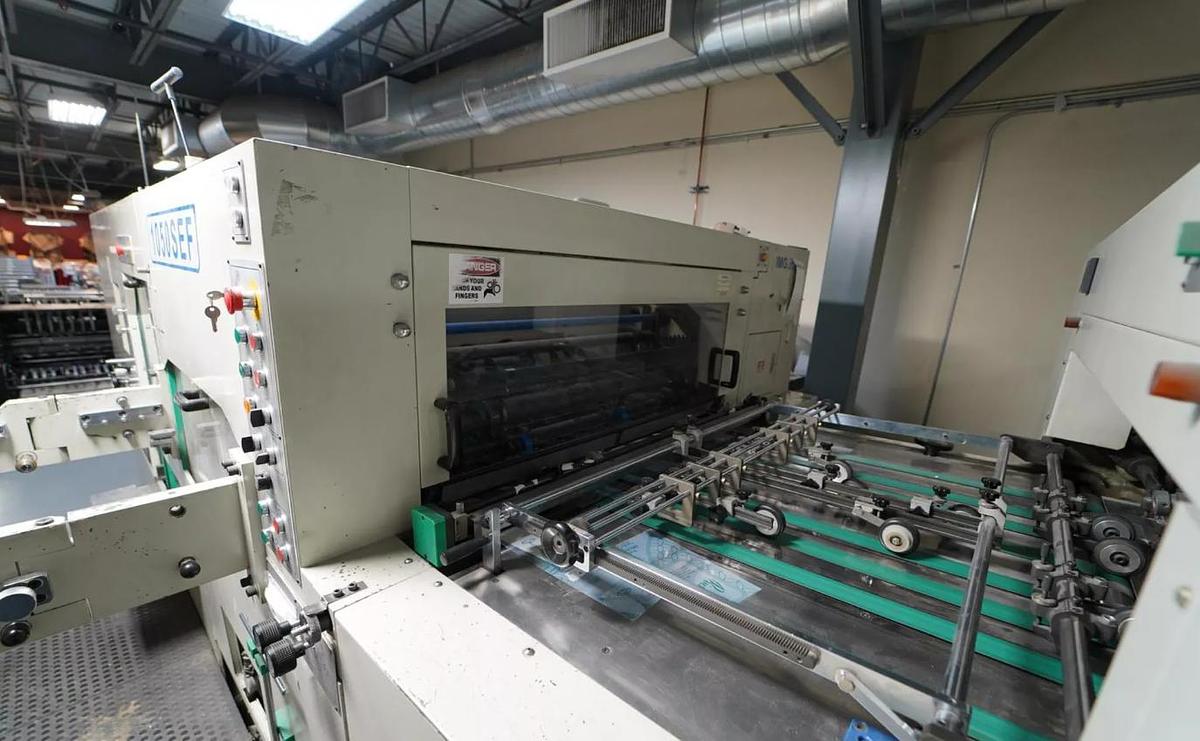

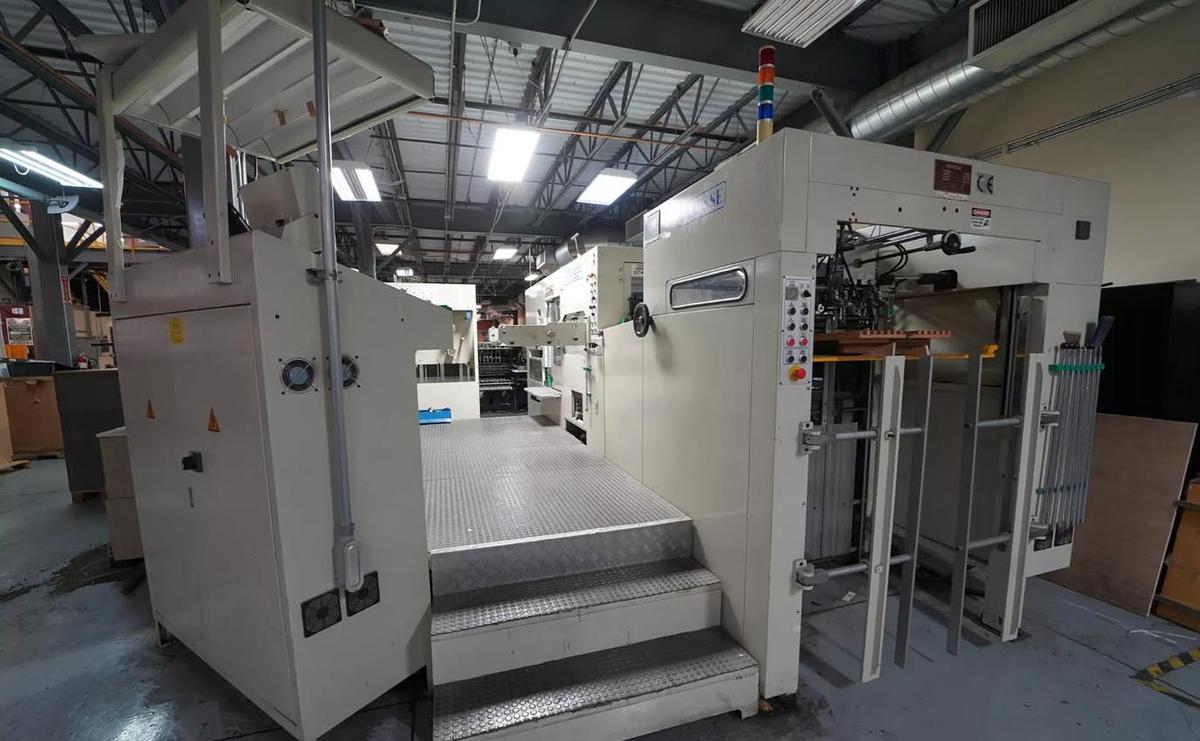

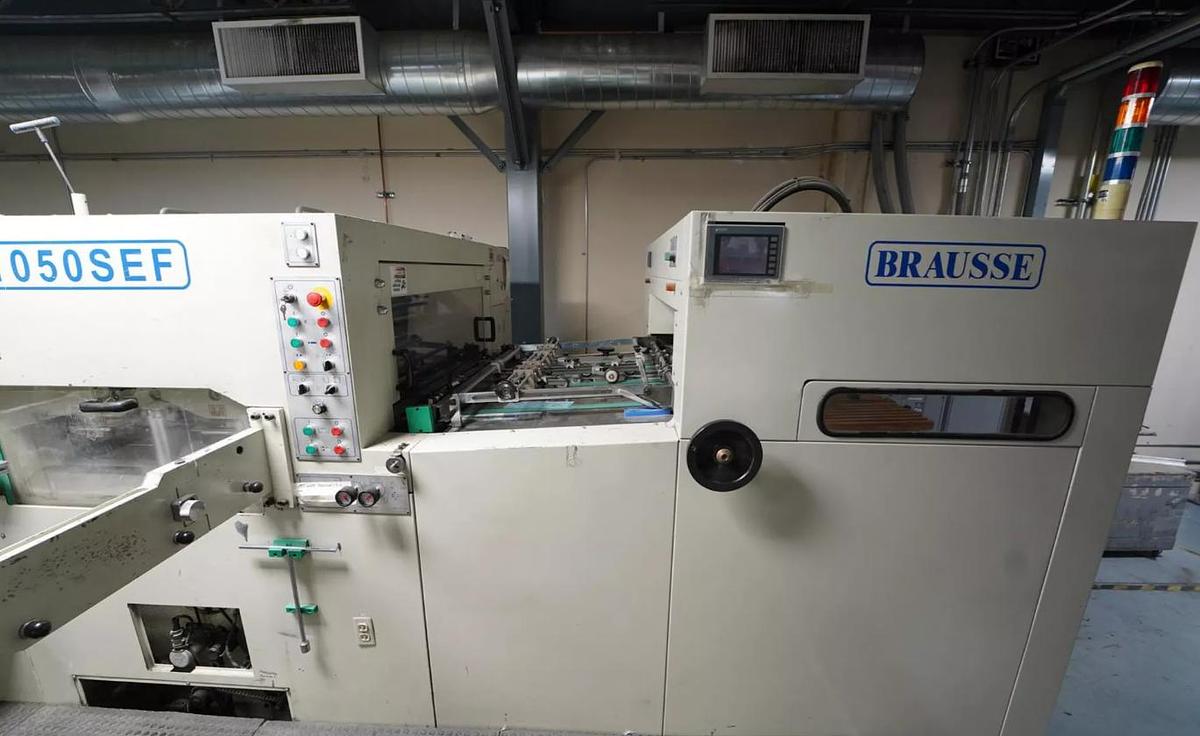

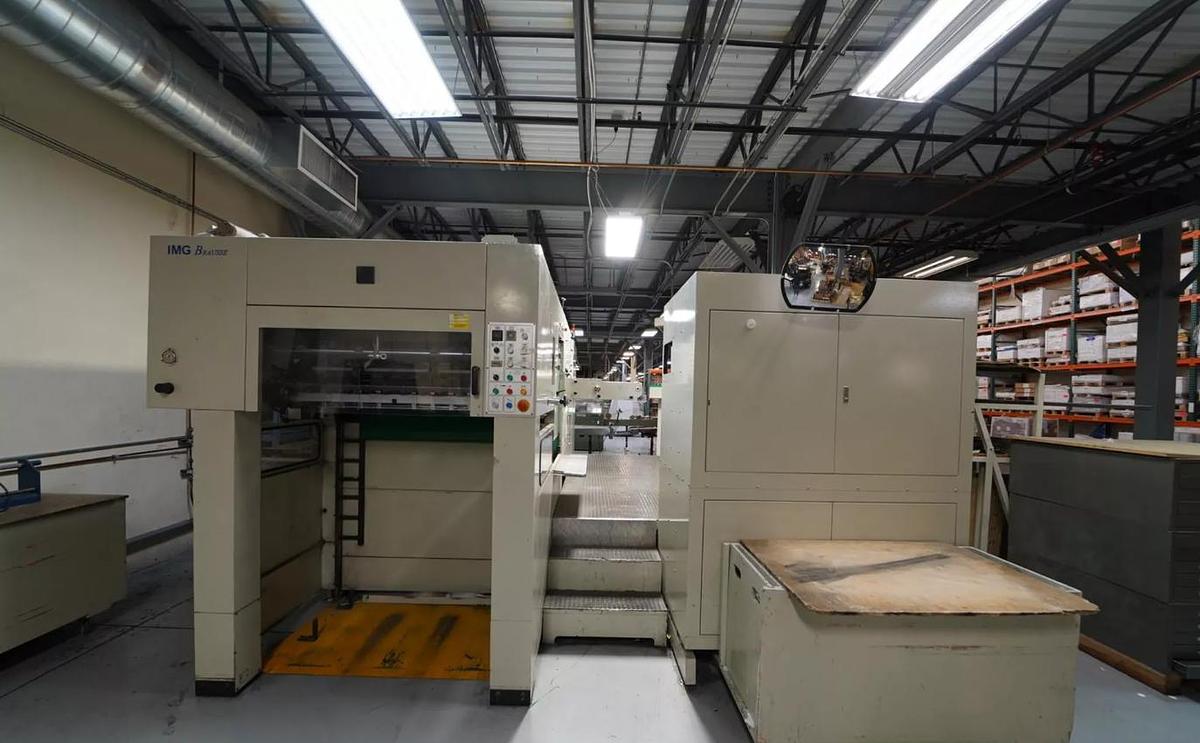

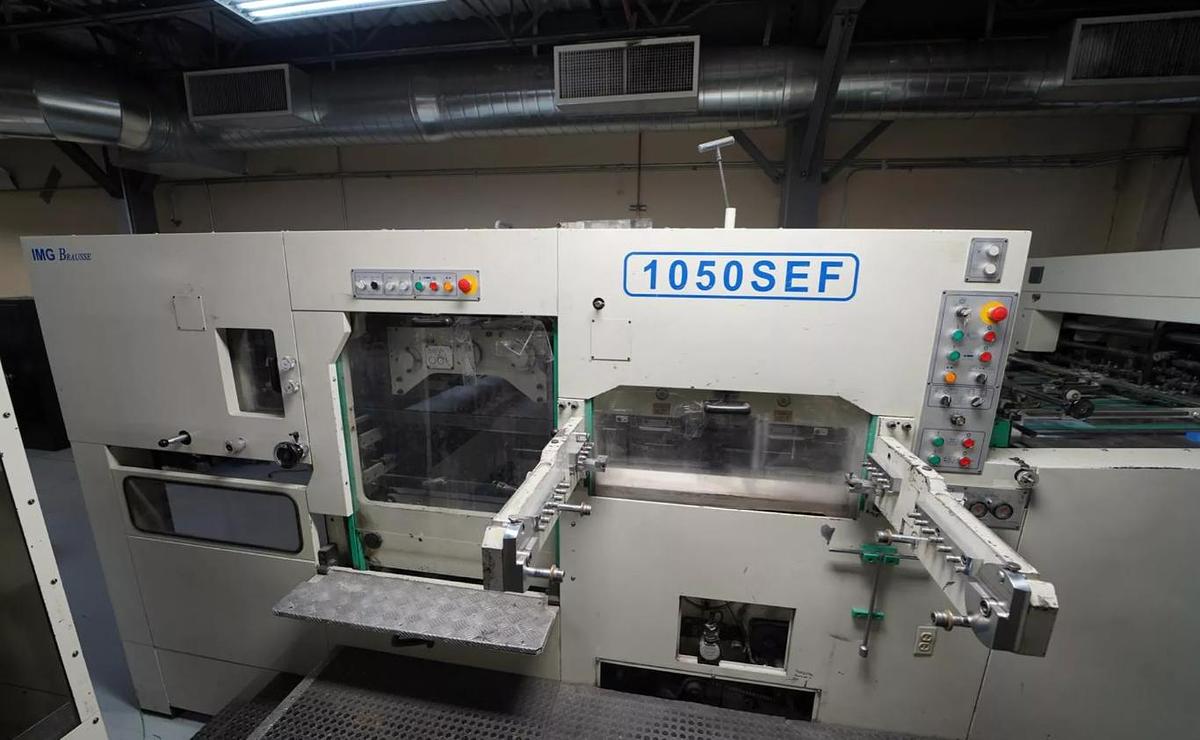

2005 Brausse 1050SEF 40” Automatic Die Cutter Foil Stamper

Brausse Model 1050SEF Automatic Foil Stamping with Die Cutting & Stripping

Features

• Turbo air blast at feeder head for easy separation of thinner paper.
• Tonnage gauge system, which can be set at a pre-determined parameter, up to a maximum of 300 tons.
• Automatic impression on/off with tonnage searching program to re-set the tonnage to the previously set figure after machine stoppage.
• 12-zone heating unit built in upper platen with individual temperature controls.
• Computer controlled foil pulling unit with standard 2-pull.
• Dynamic servo motors to accommodate better accuracy at high foil stamping speeds.
• Computerized programmable foil puller to accommodate a variation of short and long pulls.
• Foil unwinding with automatic machine speed tracking for smooth foil advancing.
• Fully computer controlled air blast system to assist in foil separation, but it can also be programmed to smooth out thinner stock before stamping.
• Easy-to-lock foil holding bracket for extremely quick changeover, which will support an 8” diameter foil roll (4000-5000 ft, depending on the type of roll).
• Foil splitter to split the wide webs of foil to narrow webs, to fit through window at delivery; and then into rewinder.

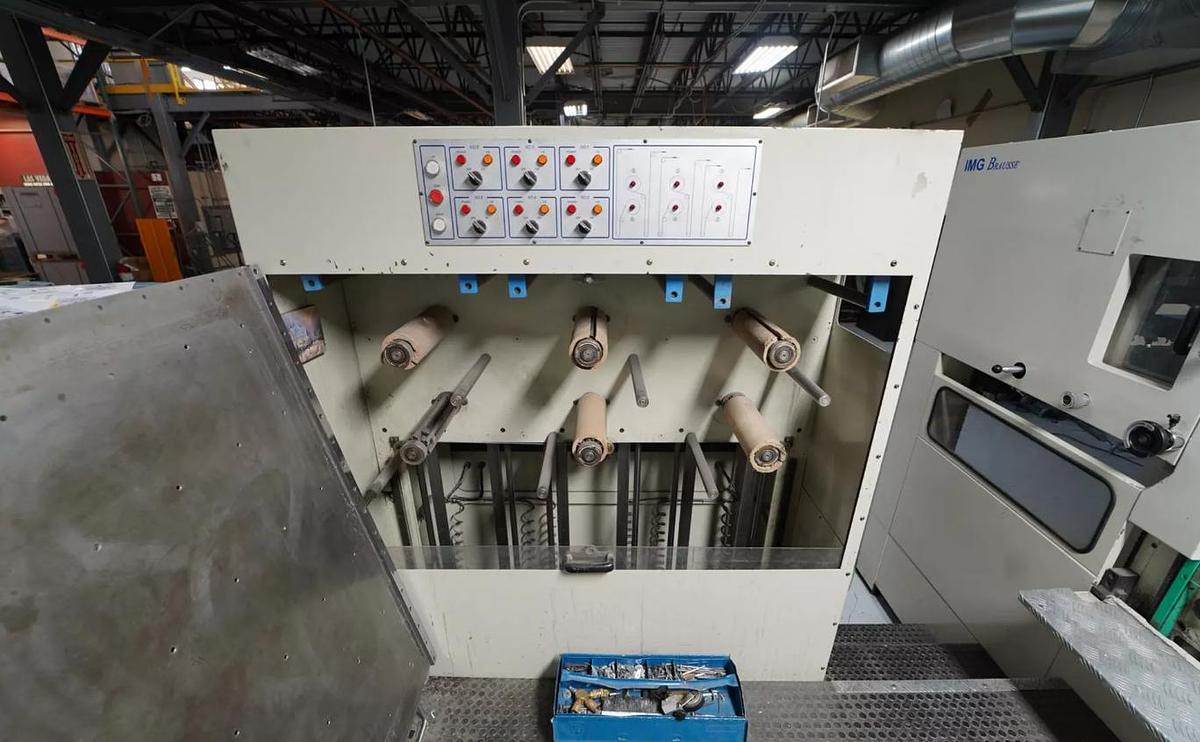

• Outside free-standing foil rewinder unit which consists of 6 rewind shafts driven by high torque variable speed motors.
• Very unique series of dancing rollers in rewind unit to assist in taking up foil slack, even on narrow foil webs, thus allowing machine to stamp at speeds never achieved before.
• Machine also comes equipped with full stripping capability, including gripper edge waste removal and very easy to change from foil stamping to die cutting and full stripping.

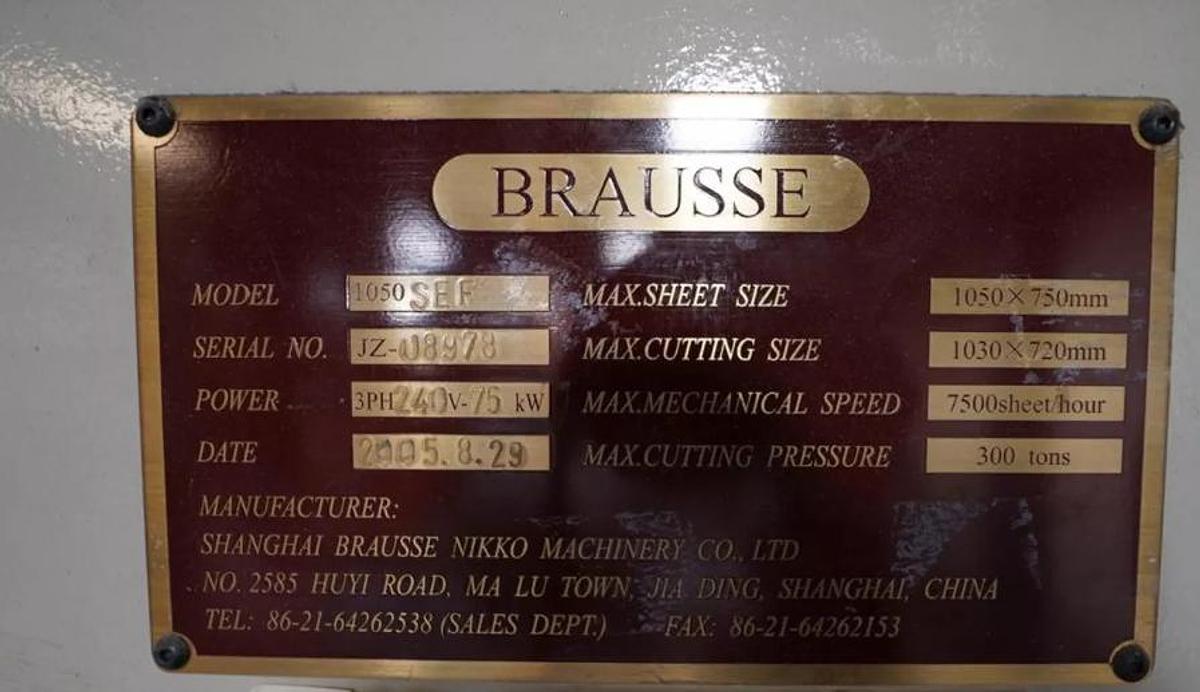

Specifications

Maximum Sheet Size: 41.34” x 29.53” (1050mm x 750mm)

Minimum Sheet Size: 15.75” x 14.57” (400mm x 370mm)

Maximum Cutting Pressure: 300 tons

Paper Thickness Range: 0.0039” – 0.078” (0.1 - 2mm)

Maximum Speed: 7,5000 sheets/hour

Maximum Foil Width: 41” (1020mm)

Maximum Stamping Width: 41” (1020mm)

Maximum Stamping Depth: 28” (730mm)

Maximum Foil Pull: 28” (730mm)
