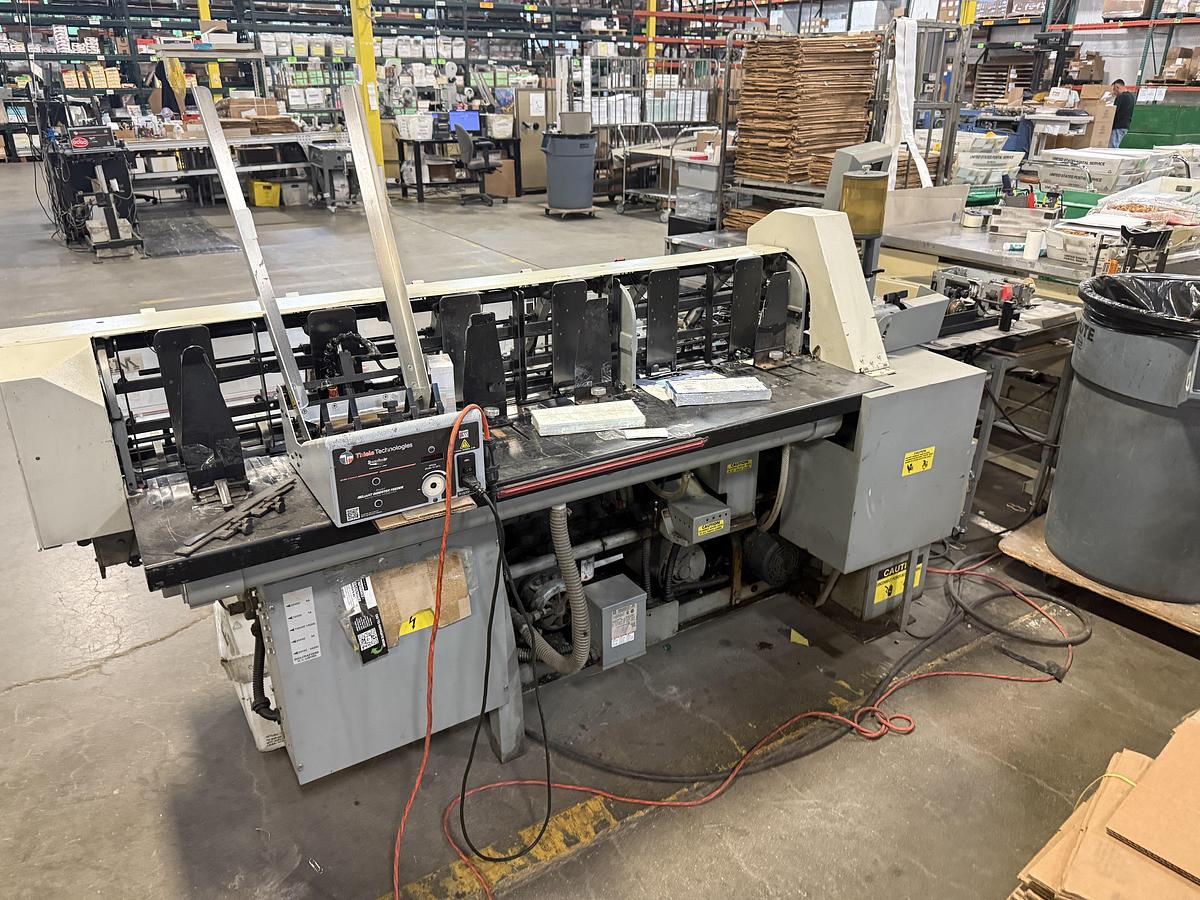

Mailcrafters Edge 9800 6 Station Mail Inserter

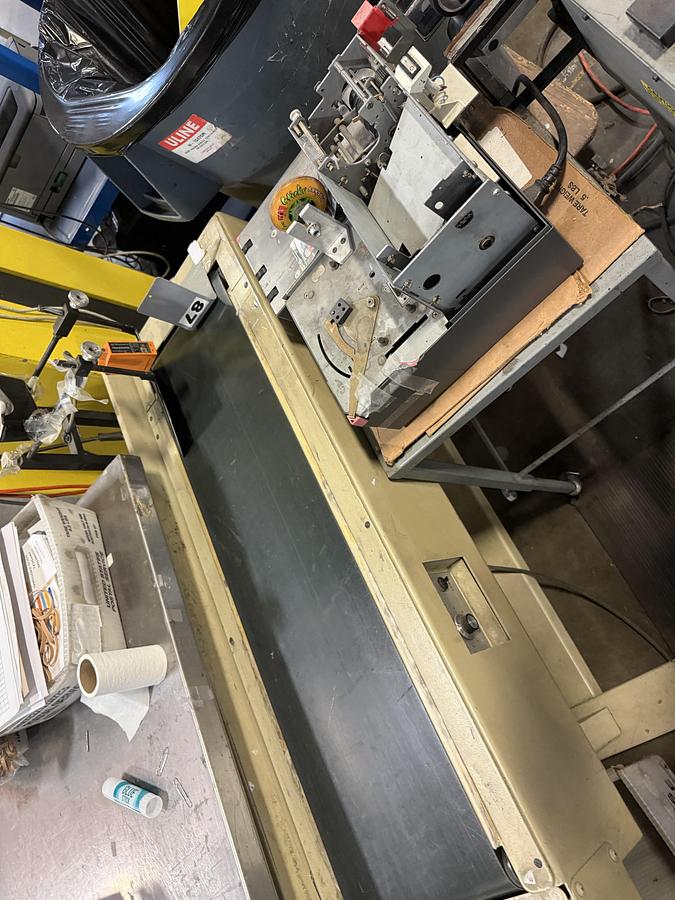

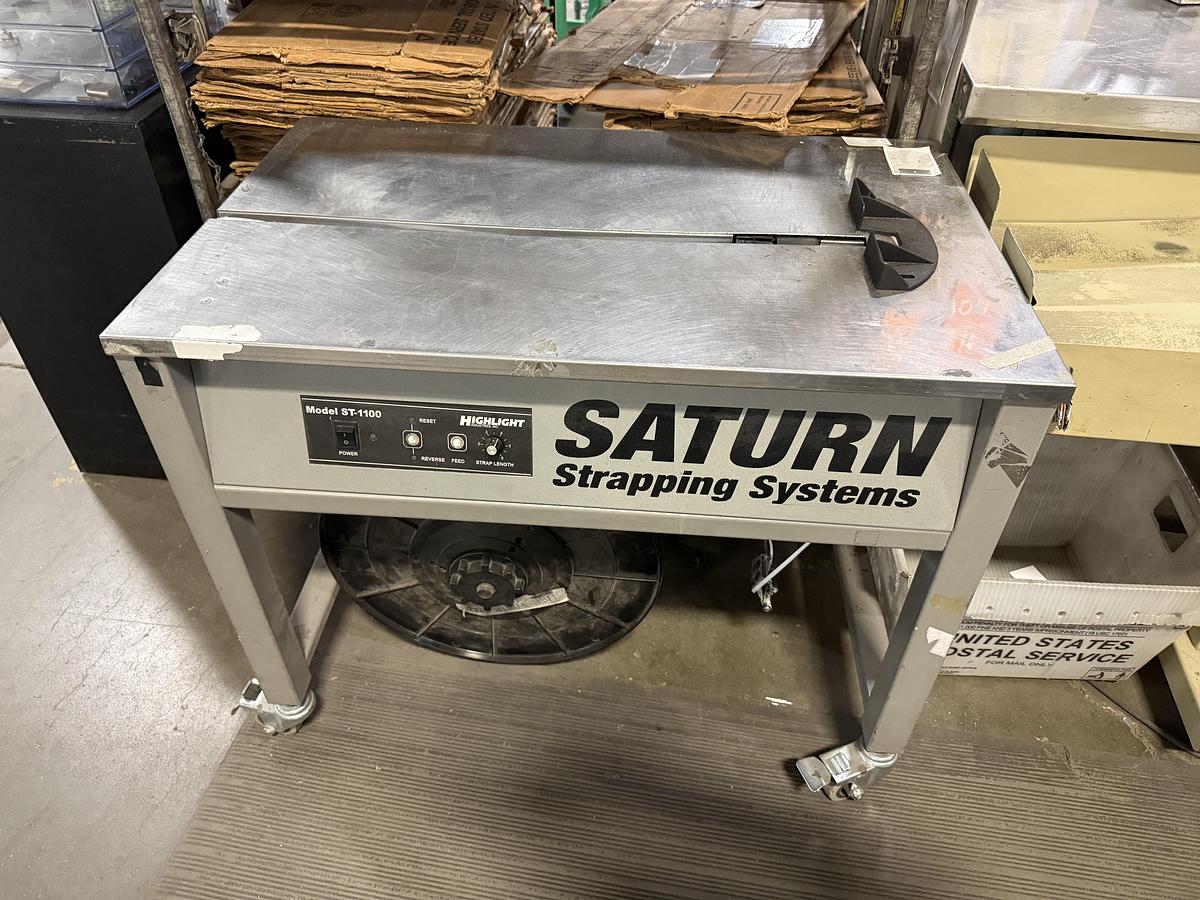

This inserter includes a Thiele / Streamfeeder Friction Feeder, 6 Station Edge Series Mail Inserter, Postmatic Stamp Head, and Saturn ST1100 Strapper.

This rugged workhorse of the mailing industry is universally known as the best production value for the busy mail center and/or office environment. Engineered for reliable and long lasting service, the 9800, receiving periodic enhancements, has been in production for over 30 years. It will automatically collate, stuff, seal and stack envelopes or pass them through an inline postage meter to yield a finished mailing ready for bundling.

The basis of its smooth high-speed operation is the parallel or conjugated cam. Mailcrafters gripper arm detection system guards against missed or double inserts and is regarded as the most reliable in the industry. Document selection and separation from the insert stations is by vacuum control which gives 9800/9800L a high degree of consistency and reliability for all types of paper media.

The Edge Series Model 9800/9800L is available in stacker, envelope turn-over, sealer-roller and conveyor configuration. Standard features include a safety two hand start and simple initial machine setup, without special tools. A true “operator friendly” inserting machine.

Features:

Conjugated Cam Drive

Rugged Drive System

Two Hand “Safety” Start

Simple Set-Up Procedure

Color Operator Interface (Touch Screen)

PLC Control with Self Diagnostics

Station Toggle

Positive Vacuum Insert Selection

“Whisper” Vacuum Pump

Sequential Start-Up/Shut-Down Programming

Specifications:

Insert stations available: 4 – 6 and up

Insert size: 6″ x 9″ – 1/4″ thickness

Envelope size: 6-1/2″ x 9-1/2″ maximum

3-1/2″ x 5-1/2″ minimum

Envelope flap depth: 2-3/8″ maximum

(depending on flap construction)
