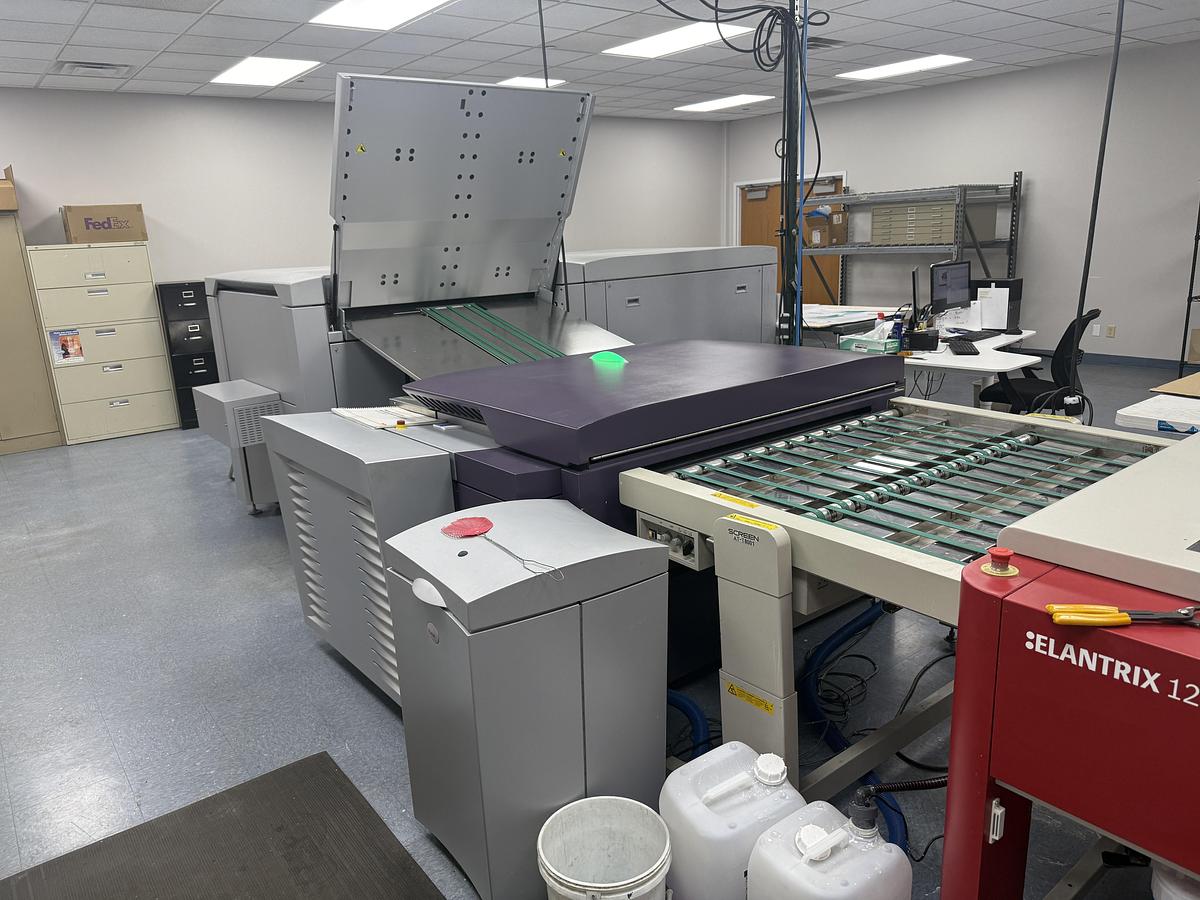

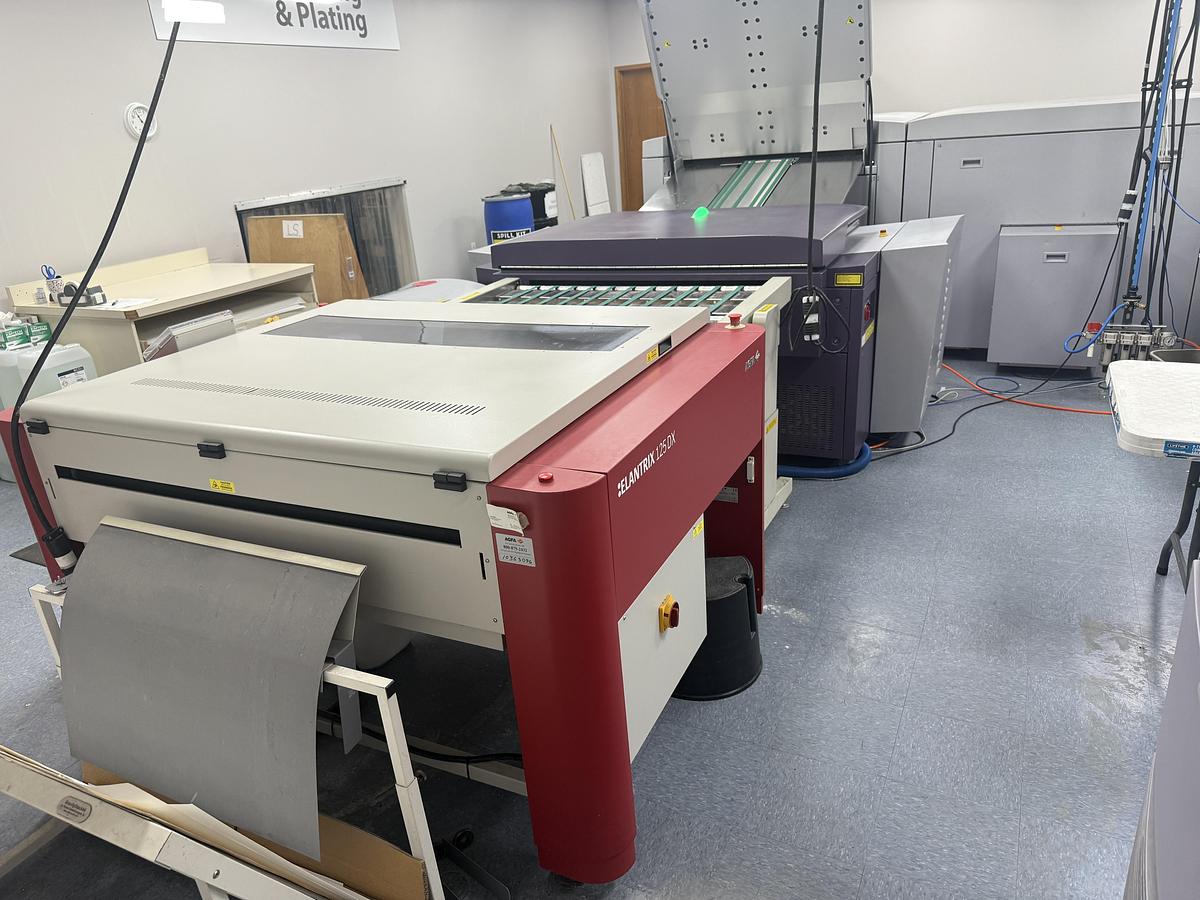

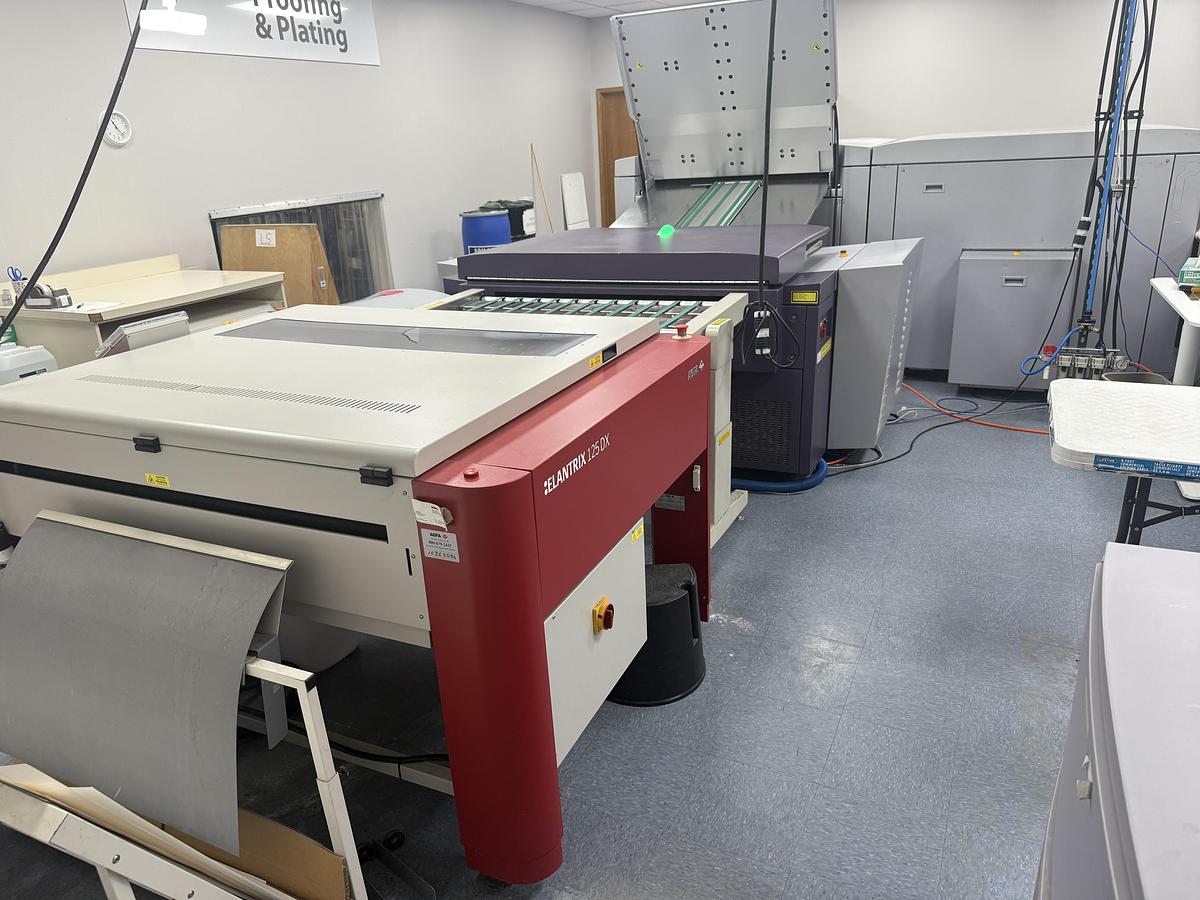

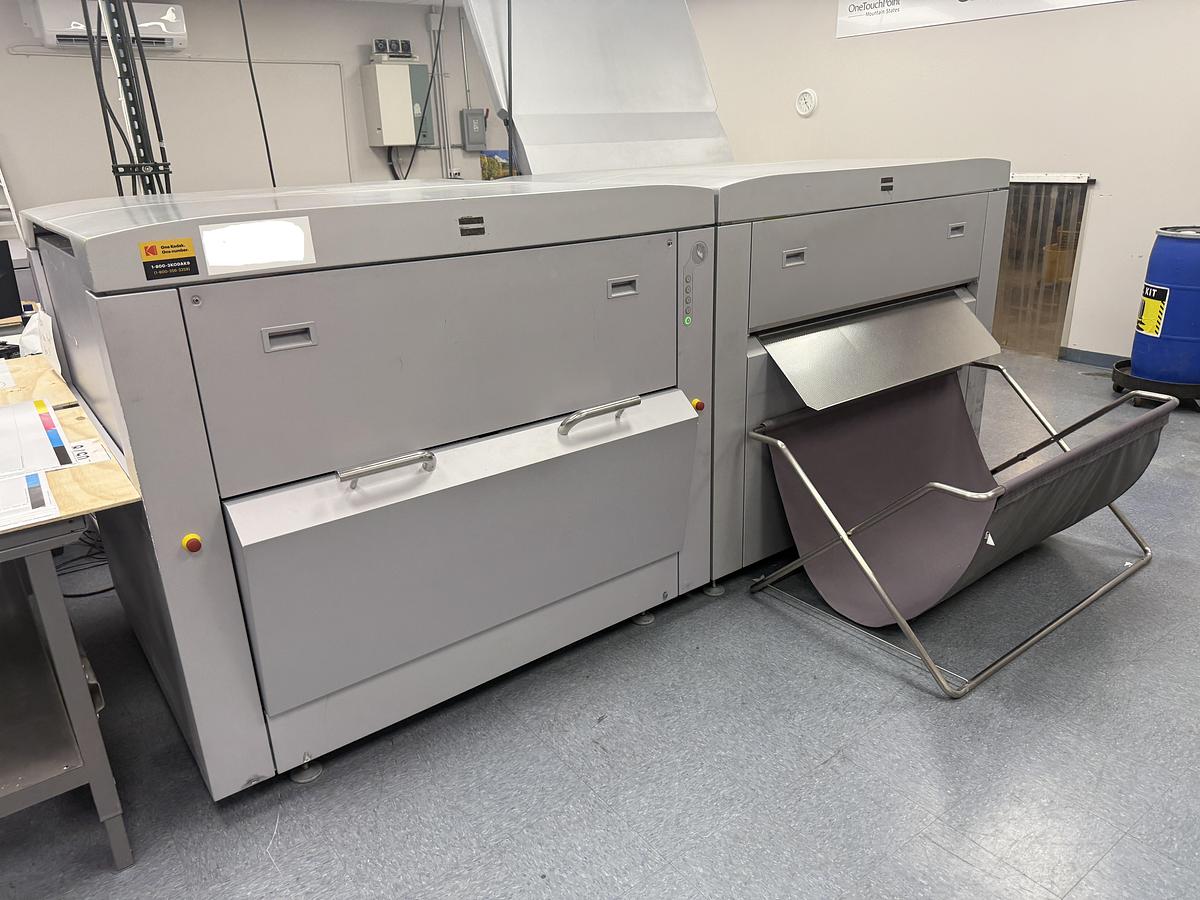

2008 Kodak Magnus Q800 with 2018 Agfa Elantrix 125 DX Plate Processor

The KODAK MAGNUS Q800 Platesetter provides exceptional productivity and efficiency to meet the needs of both small and large commercial printers. It is the fastest 8-page CTP available, imaging up to 84 plates per hour, with a modular design for easy scalability and

various plate options. When combined with optional 10-micron KODAK STACCATO Screening, KODAK PRINERGY Workflow and KODAK Digital Plates, MAGNUS Q800 Platesetters deliver photorealistic results that you have to see to believe. Automating prepress production helps reduce waste and costly errors while optimizing throughput and efficiency.

Multi-Cassette Unit (MCU) Fully automated; holds up to 550 plates in 5 cassettes, each containing up to 110 plates of the same size and thickness with slip sheets, enabling up to 5 different plate sizes online. The required cassette is automatically selected according to the

job definition. Empty cassettes can be reloaded while the platesetter is running. Right access is standard; available with optional left access.

Technology: 830nm platesetter with KODAK Squarespot Imaging Technology, external drum

Integrated Punch: Up to 10 customized punch heads

Resolution: 2400 dpi

Screening: 450 lpi max line screen

Maximum Plate Size: 37.4" x 45.78" (950 x 1,163mm)

Minimum Plate Size: 12.99" x 12" (330 x 305mm)

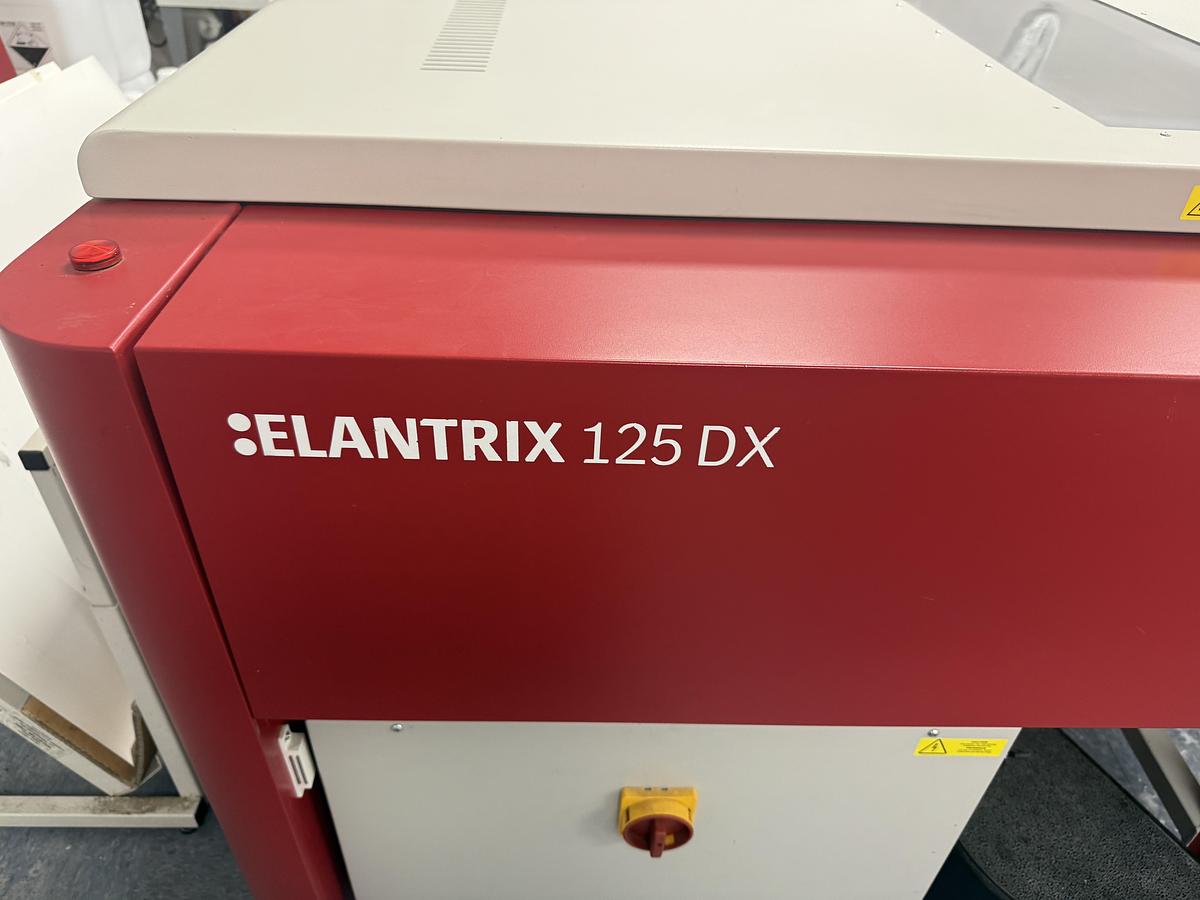

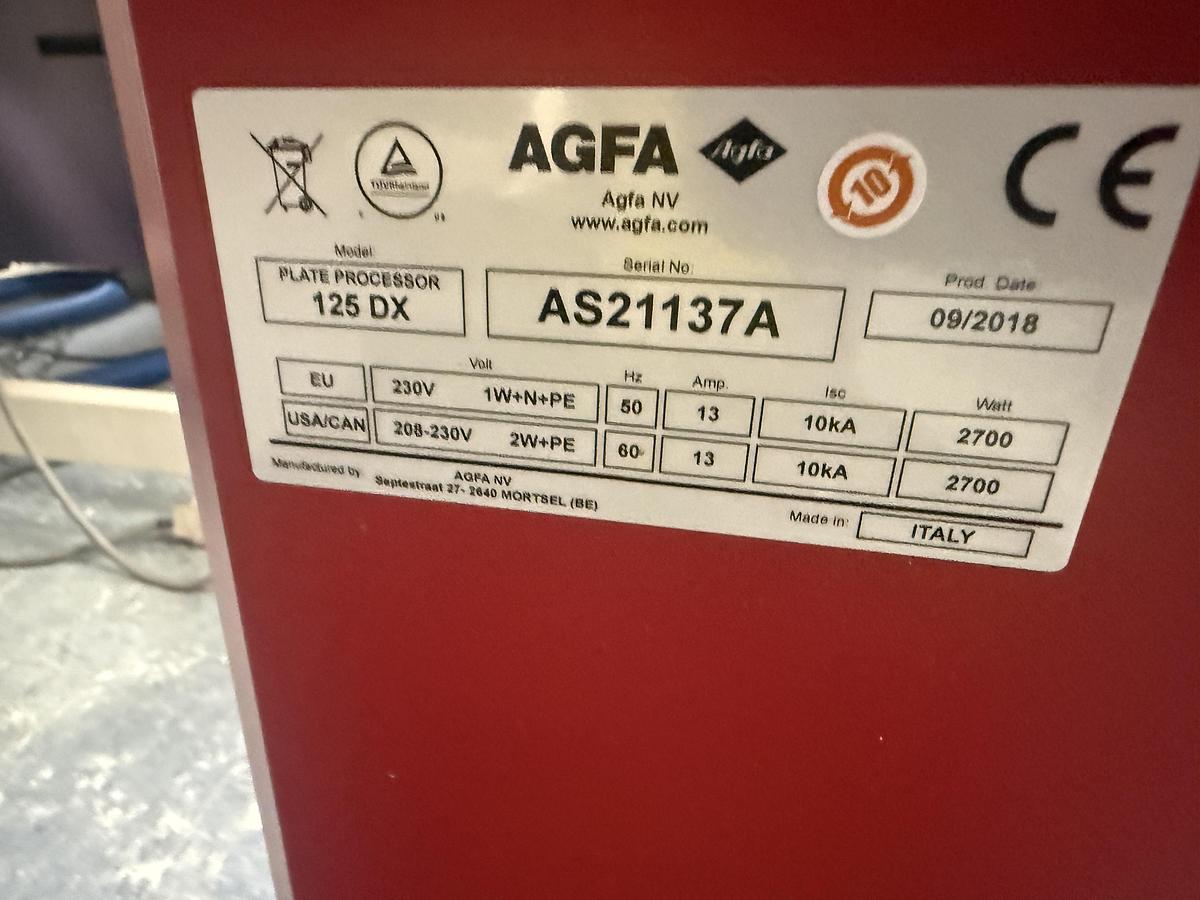

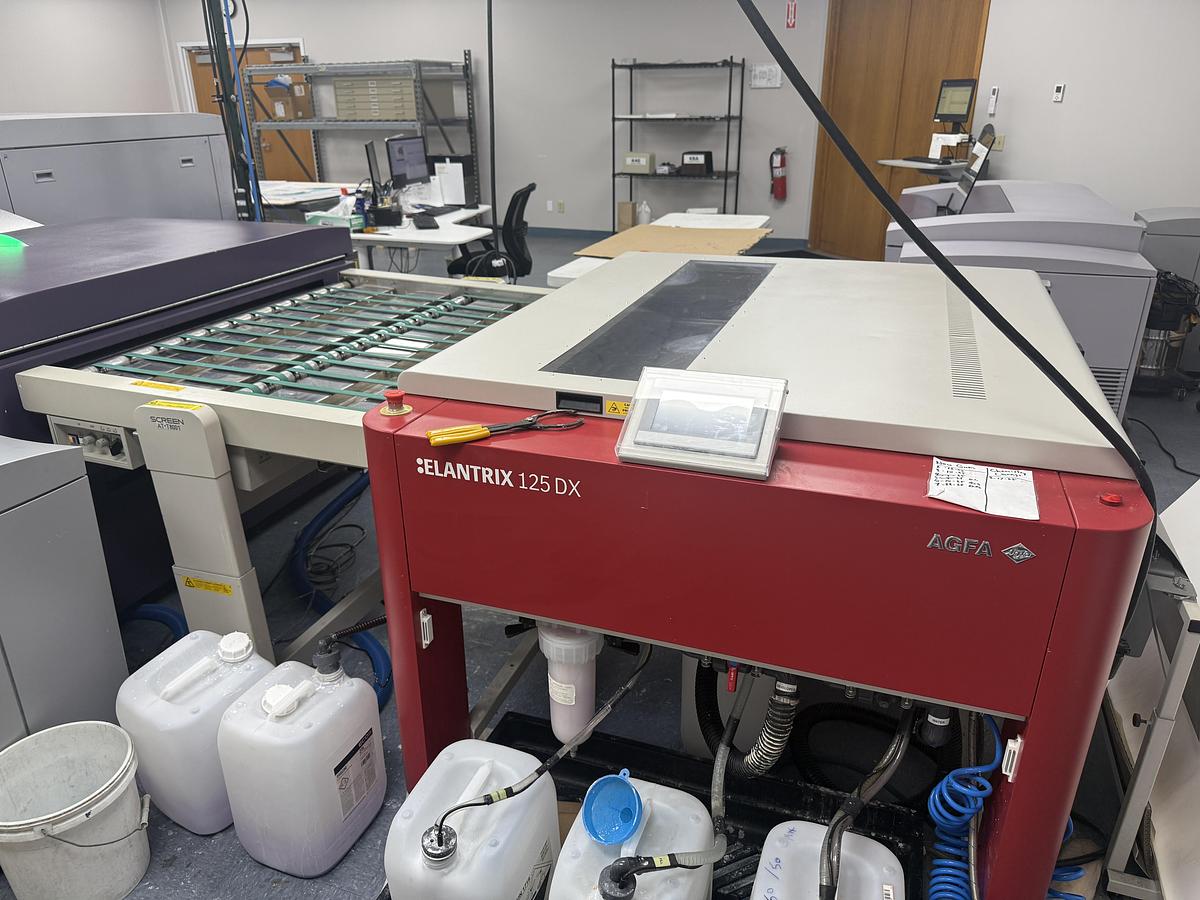

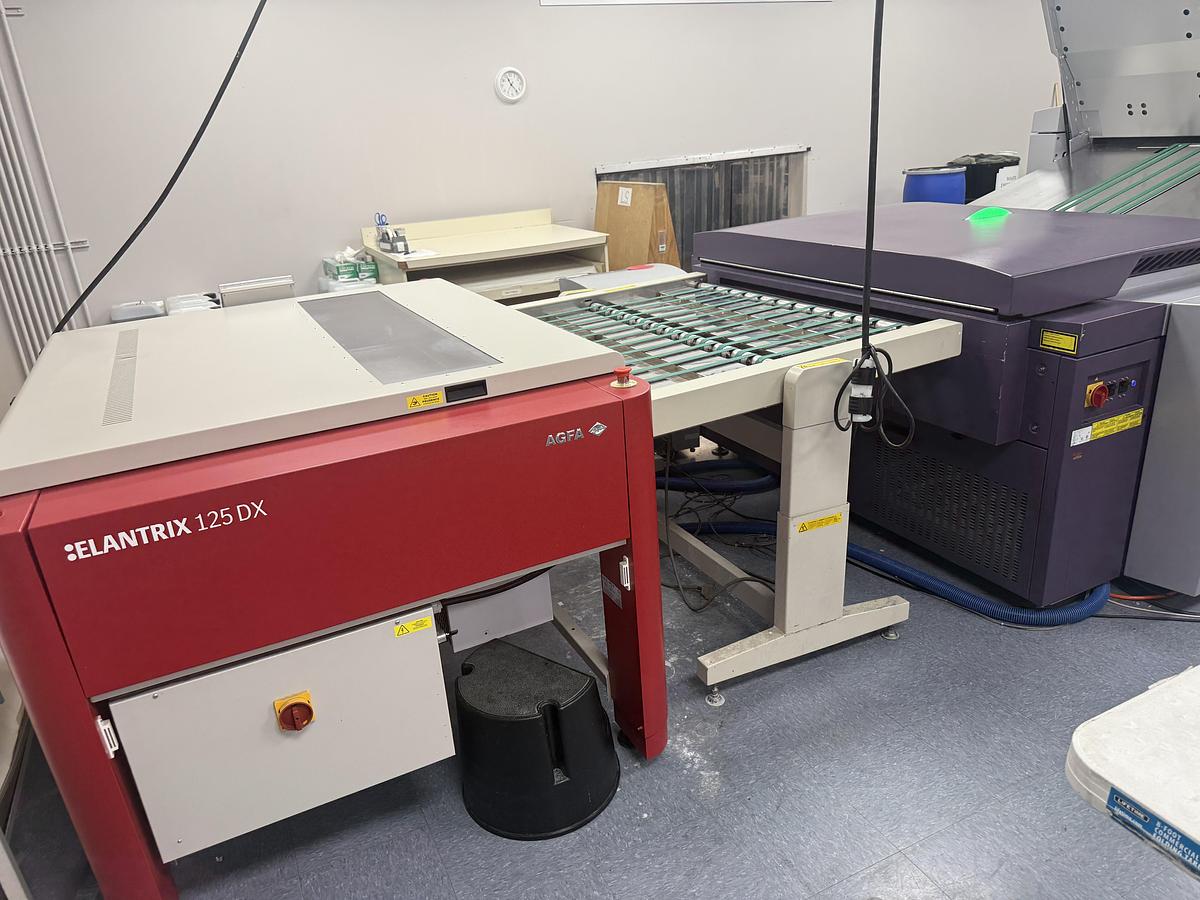

Elantrix 125 DX Plate Processor

Plates: P970, Energy Elite, Energy Elite Pro, Energy Elite Eco, Amigo TS

Plate Type: Positive-working and negative-working thermal offset plates

Plate Width: 7.9" - 49.2" (200 - 1250mm)

Minimum Plate Length: 11.8" (300mm)

Plate Thickness: 0.006 - 0.016" (0.15 - 0.4mm)

Maximum Plate Speed: 63" (160cm) per minute
