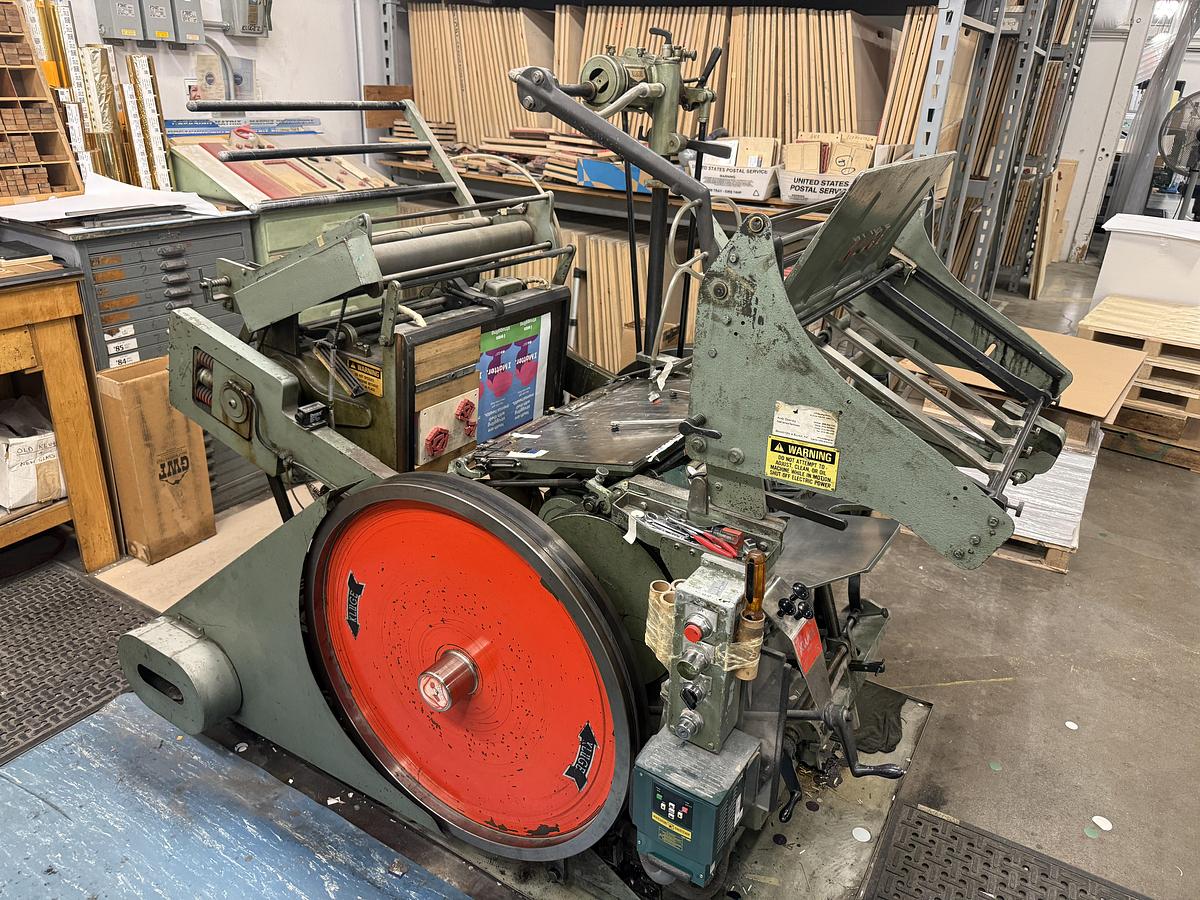

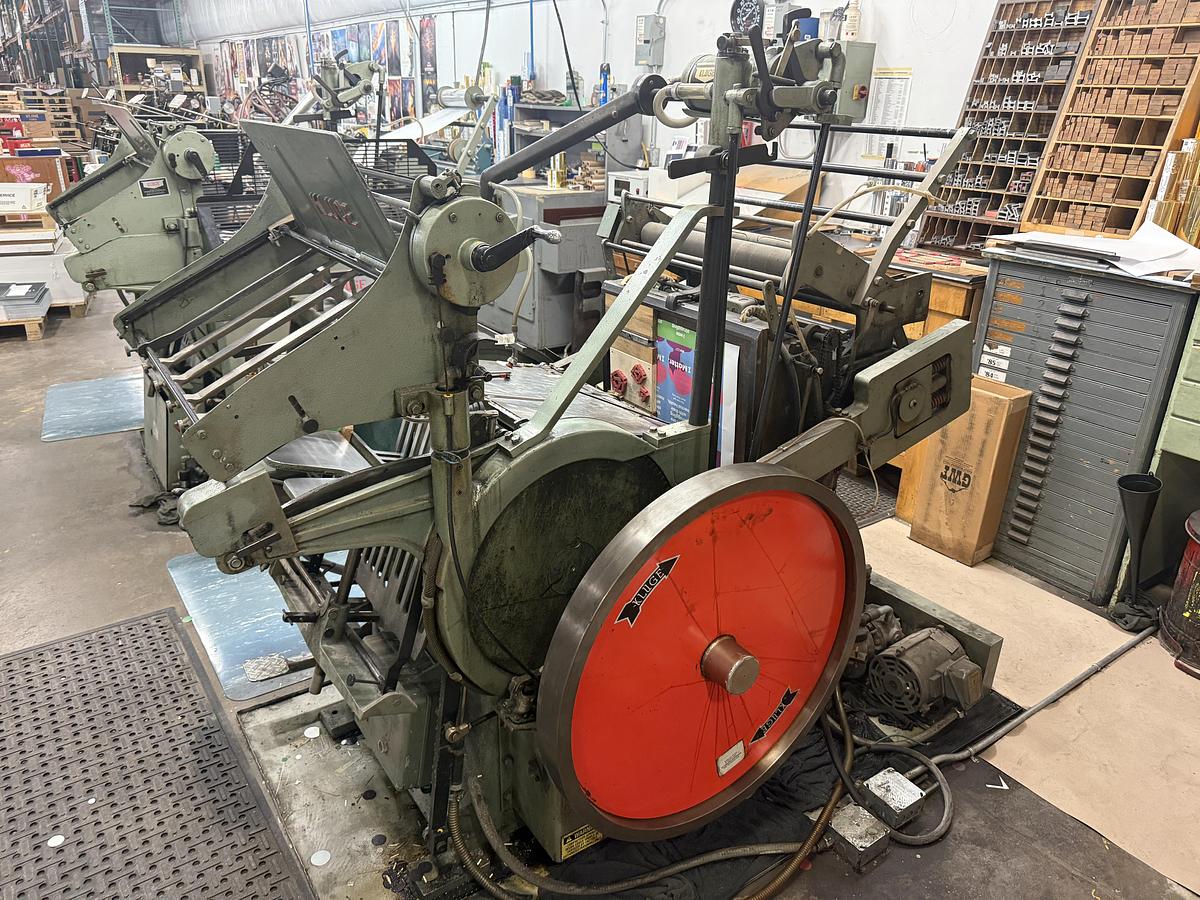

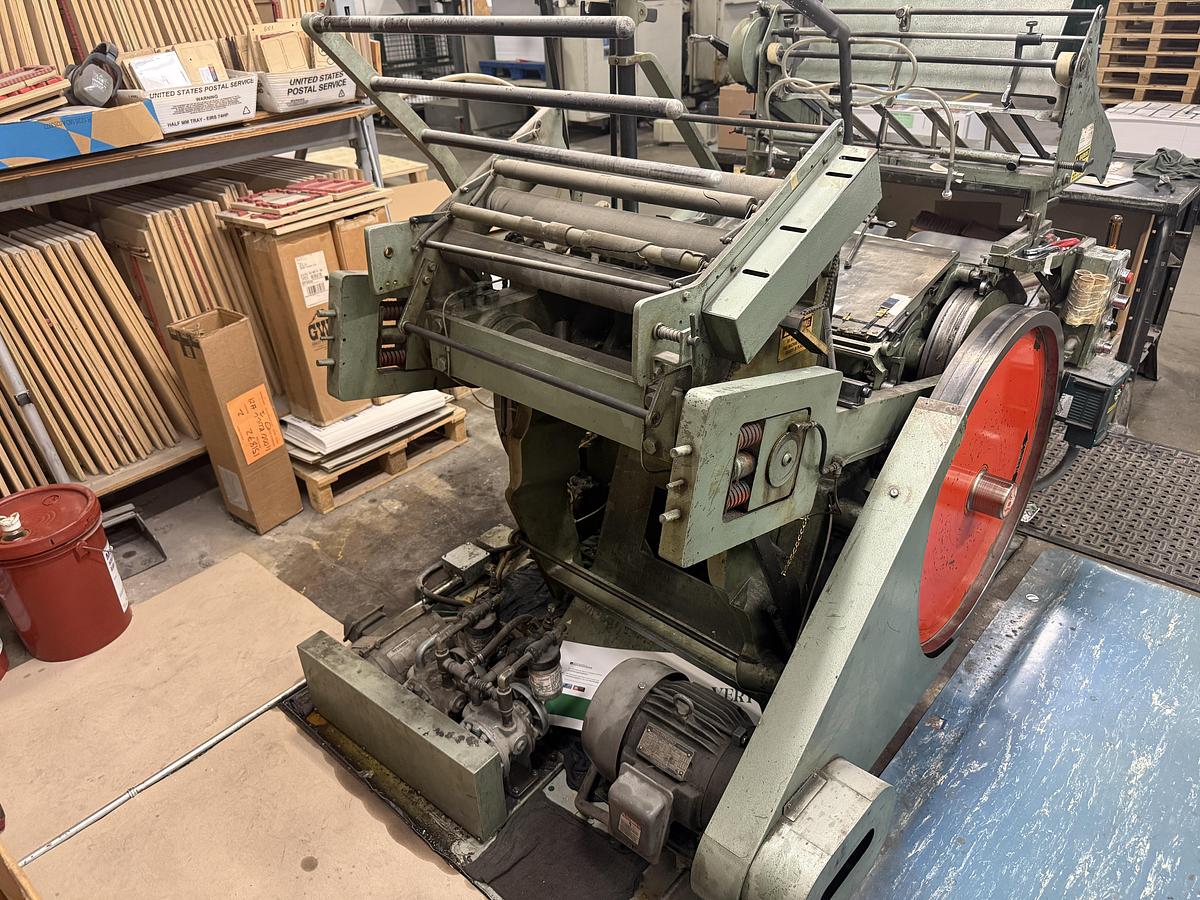

Kluge EHD 14x22 Foil Stamping, Embossing & Die Cutting Press

Impression strength, controlled heat and dwell time are the core elements that make the Kluge EHD Series Press the standard of the industry.

Features

• Feeder - Straight in/straight-out feeding motion prevents misfeeding of stock, allows for a wide range of stock thicknesses and shapes and ensures registration of +/- .004”.
• Mechanical Foil Control System (MFCS) - a 3-draw system for a range of foil, includes one foil rewind shaft and three separate rewind clutches. Electronic model available.
• Toggle Base and Dual Zone Hot Plate - The toggle base enables an infinite range of die mounting positions and the hot plate has two independently controlled heating zones.
• Adjustable Impression - Simple impression adjustment by turning the crank handle
• Micro Adjustable Gauge Band - Precisely adjust the gauge band for sheet placement.
• Delivery - Four-finger delivery arm, with a receding pile delivery table and impression counter.
• Control Panel - Operator-friendly controls for start, on/off impression, feed, vacuum, stop and feed without impression.
• Reversible Register Cam - Enables operator to switch from left to right side registration in seconds.
• Missed Sheet Detector - Prevents die, make-ready and press damage.

Specifications

Platen Size: 14" x 22" (356 x 559mm)

Maximum Sheet Size: 17" x 24.75" (432 x 629mm)

Minimum Sheet Size: 4" x 5" (102 x 127mm)

Stock Range: Onion Skin to .200" board

Operating Speed: 3,300 impressions per hour
