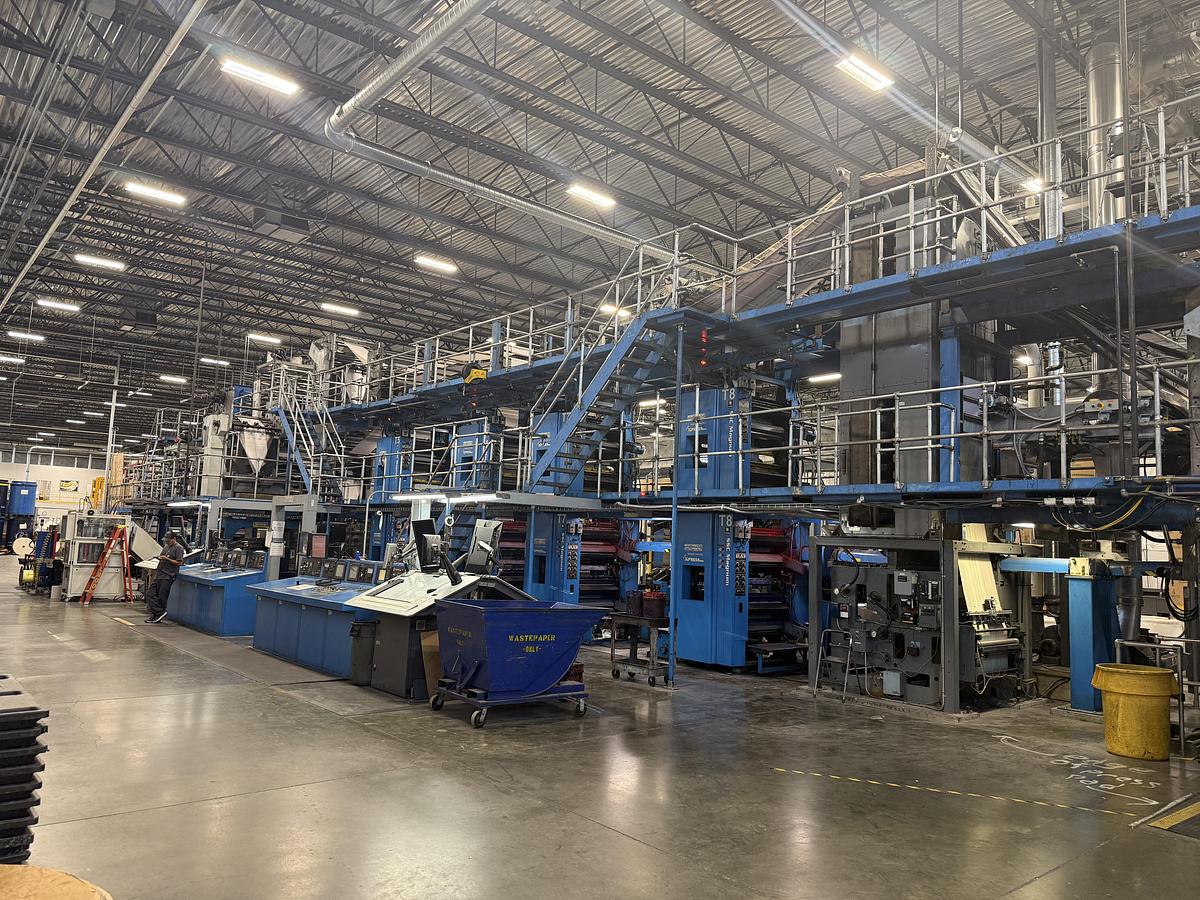

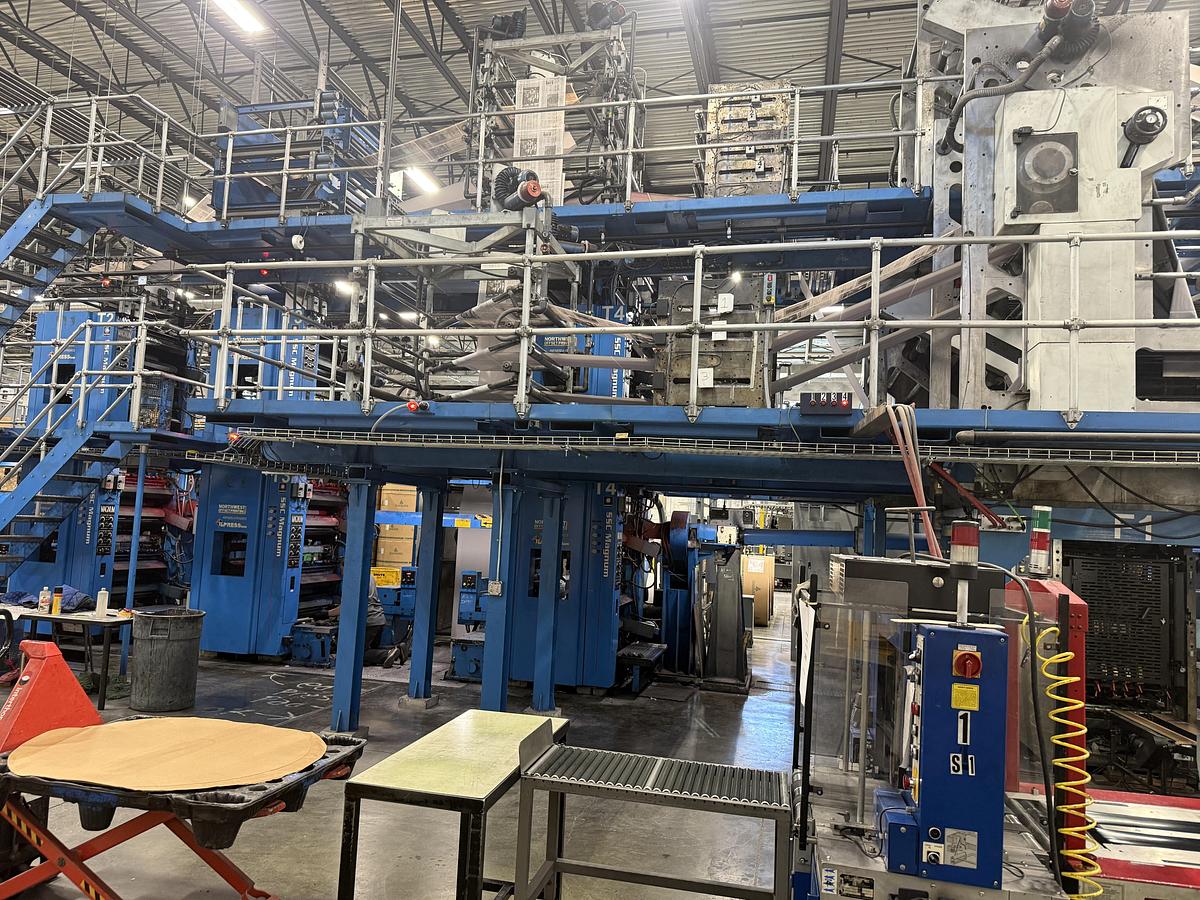

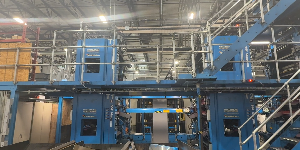

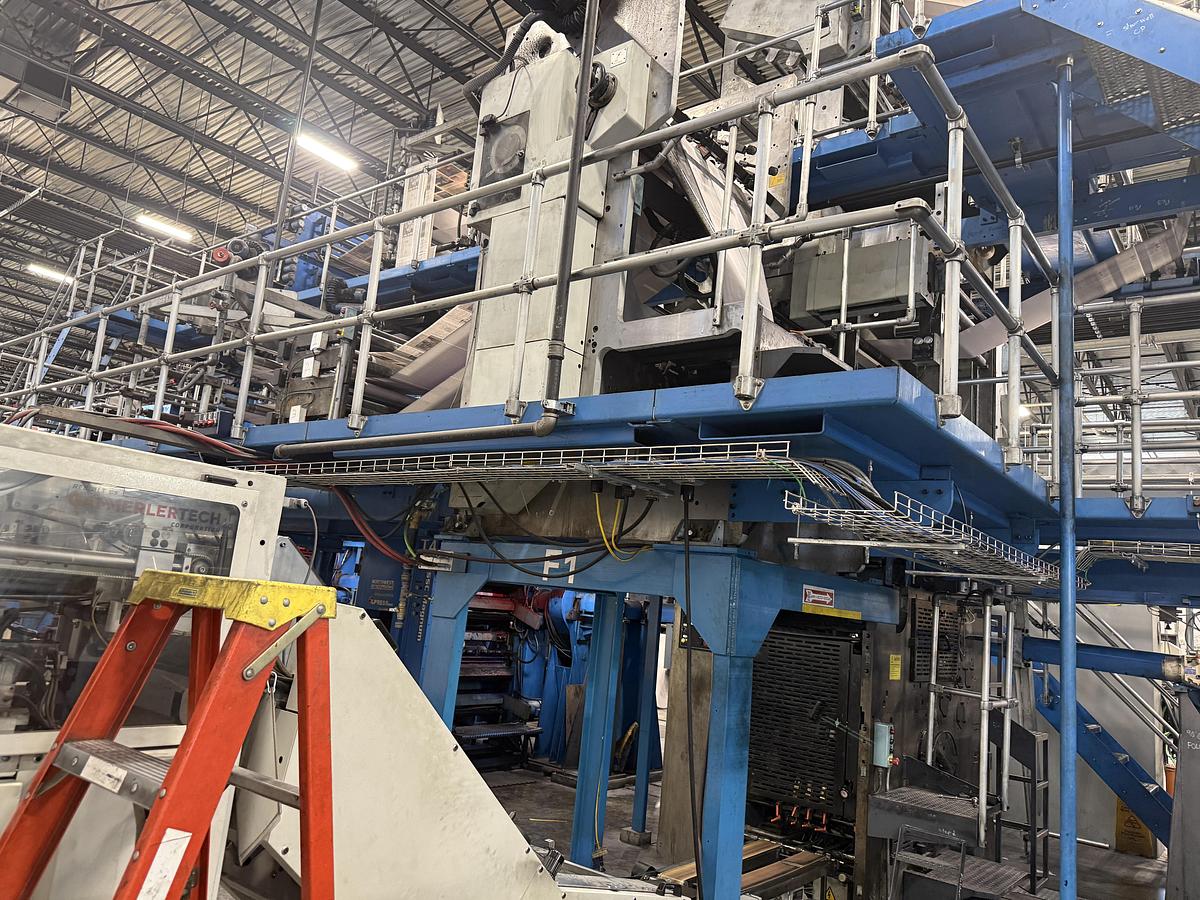

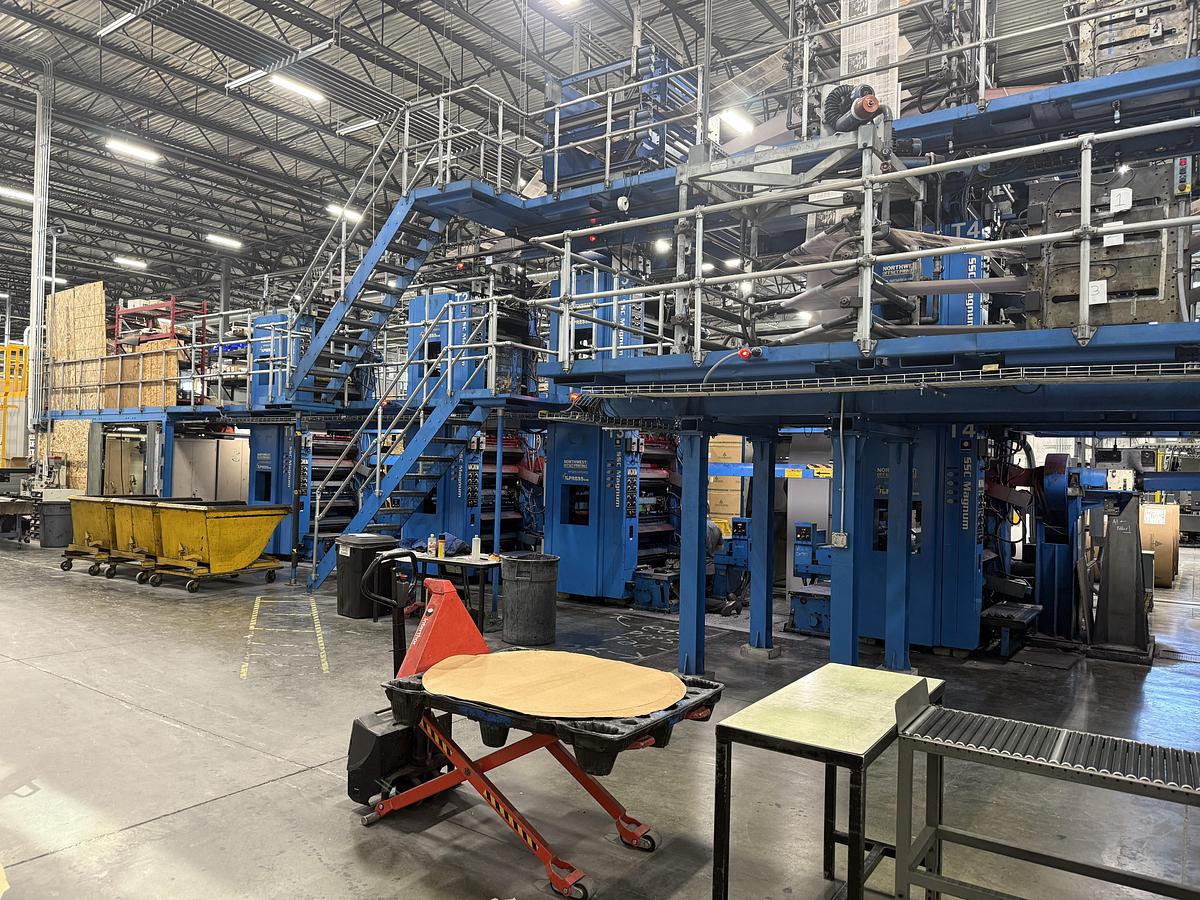

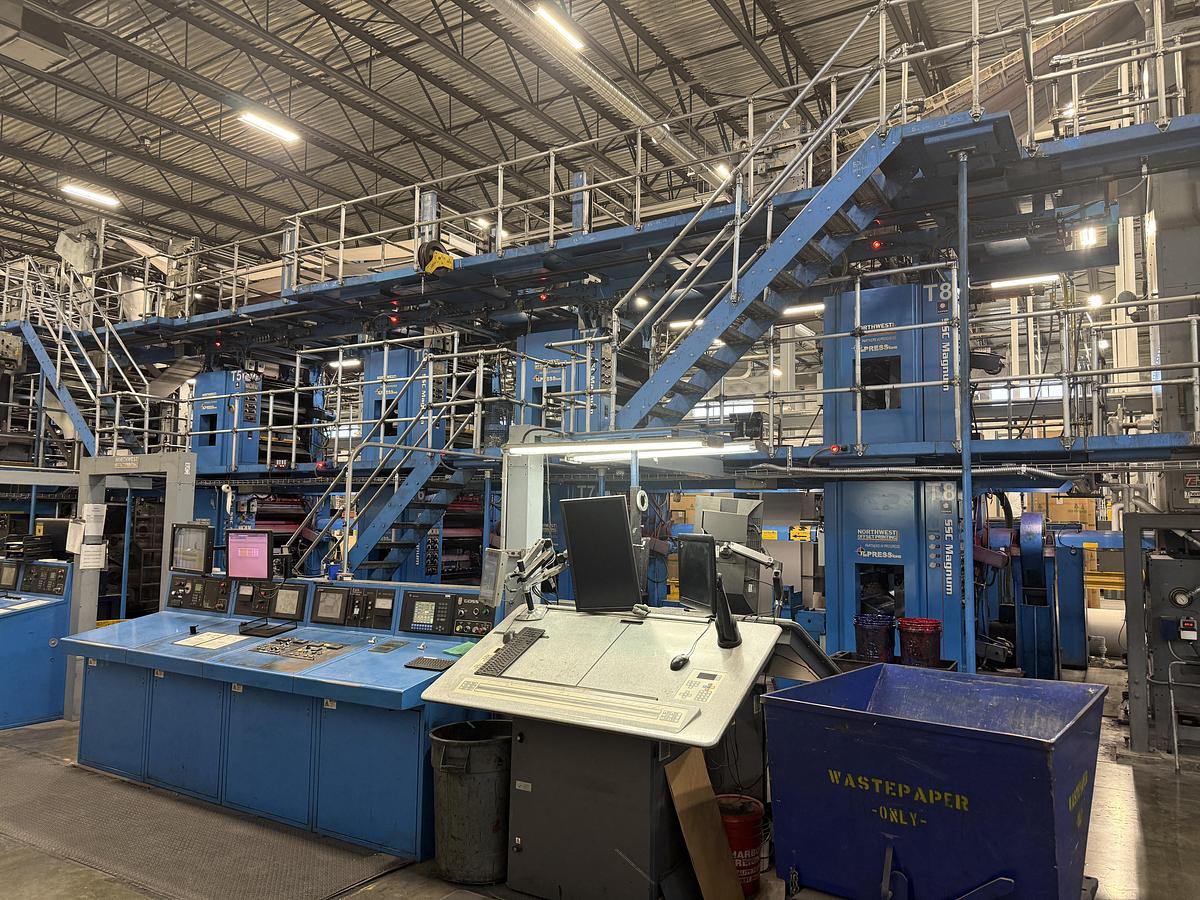

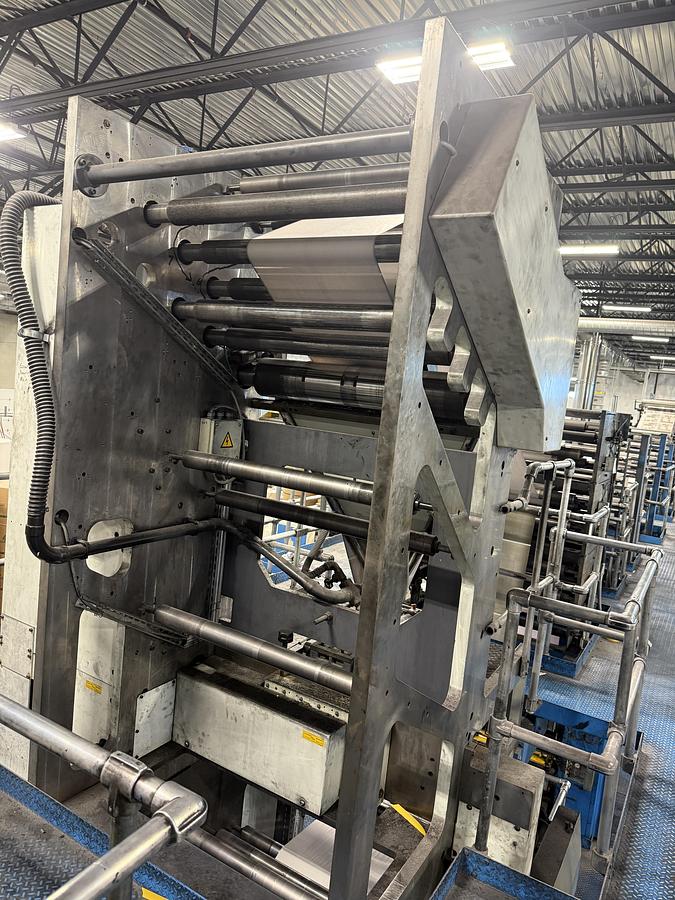

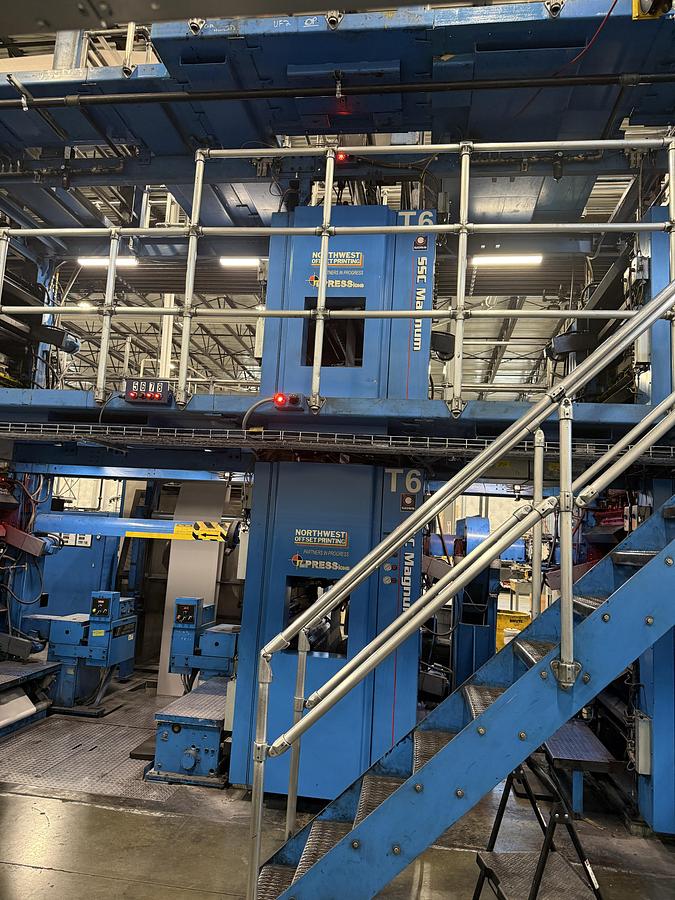

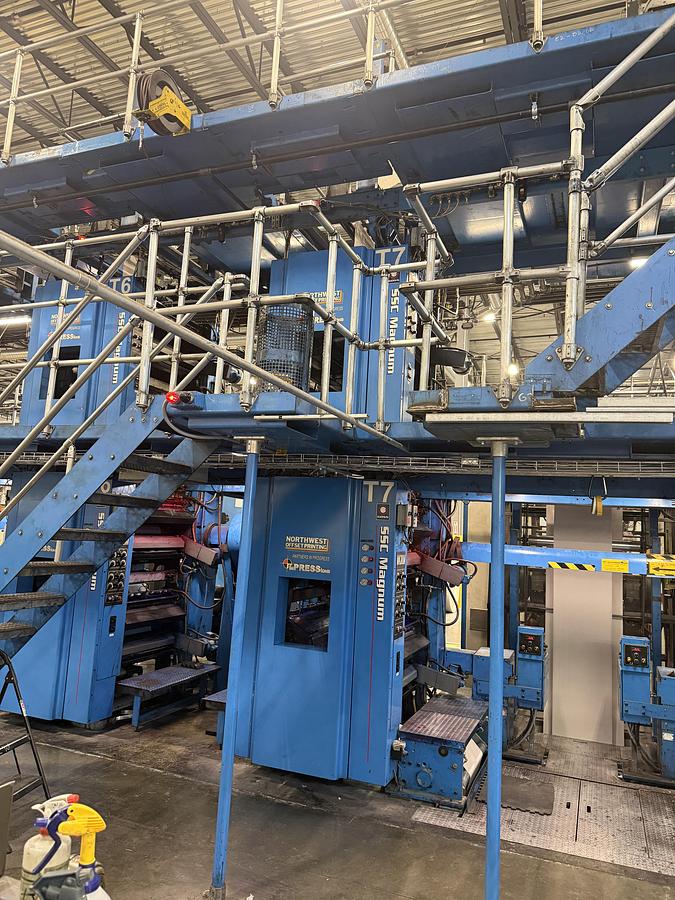

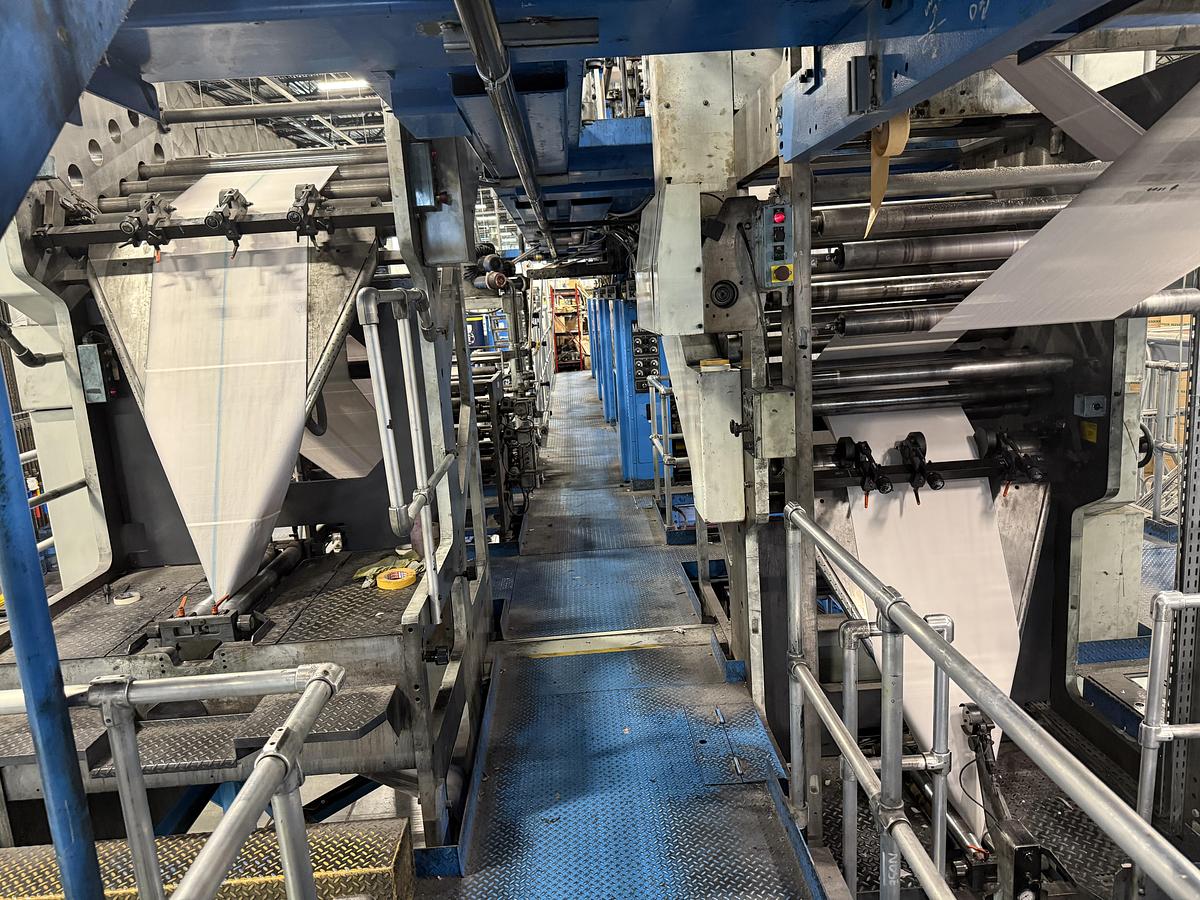

2001 Goss SSC/Magnum (8) Tower 22" Offset Press - HIGHLY UPGRADED

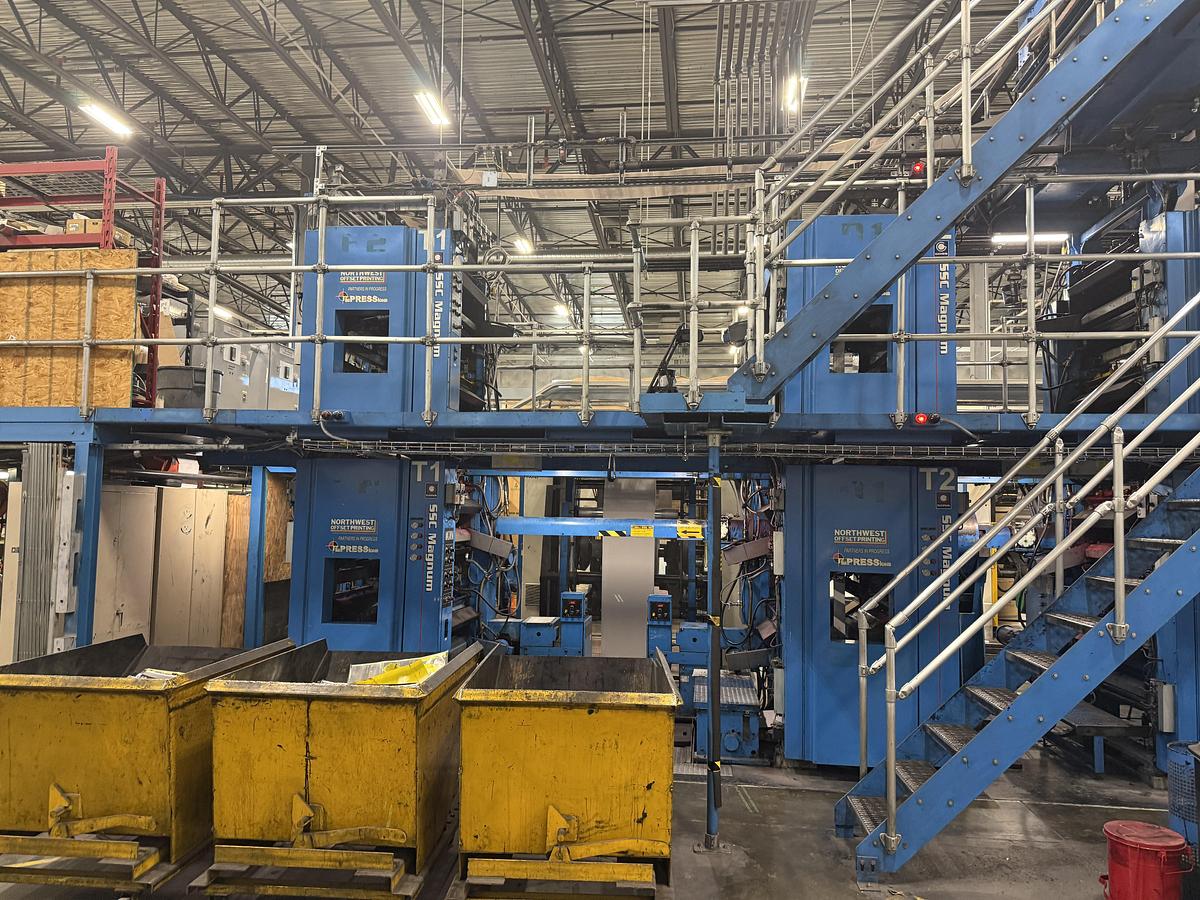

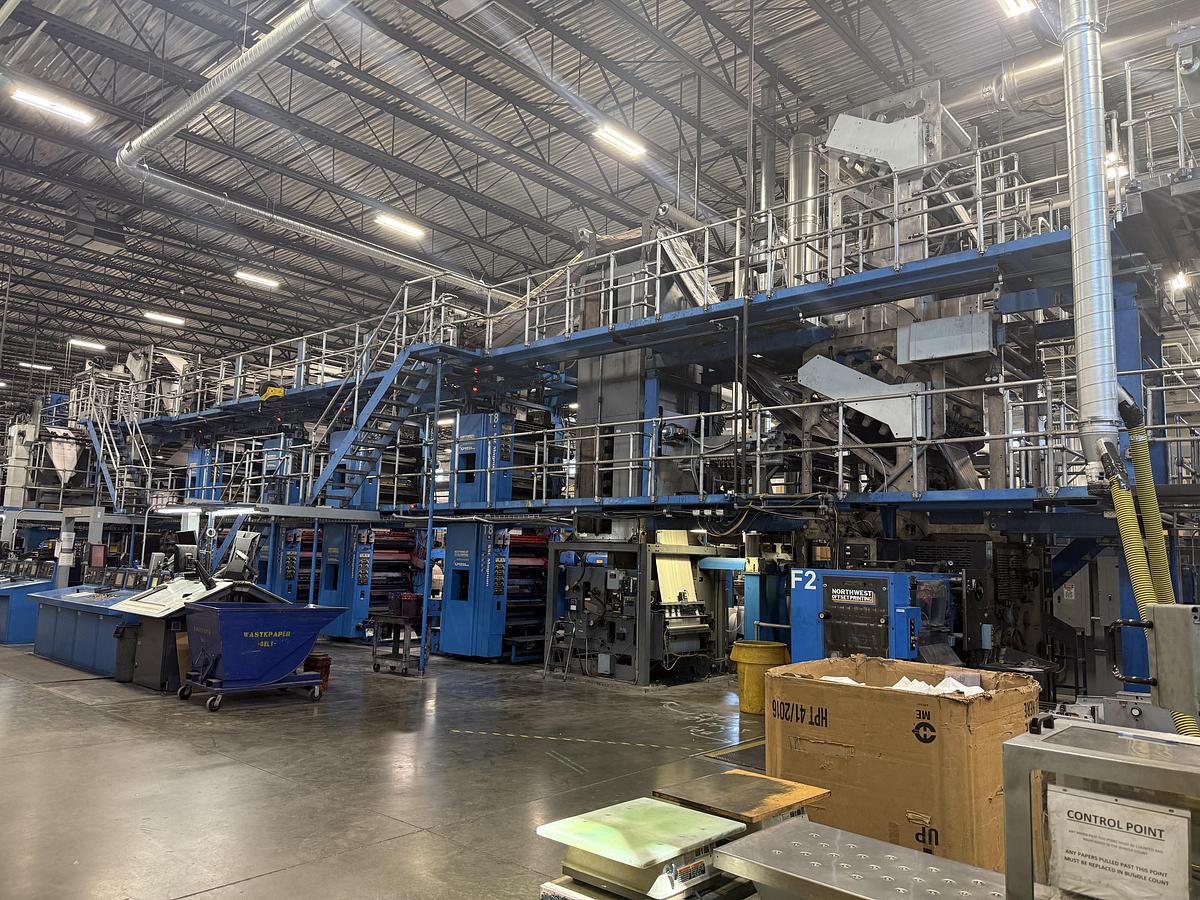

Goss Community SSC/ Magnum 8 Tower Web Press - HIGHLY UPGRADED

Cutoff: 22" (558.8mm)

Web Width: 36" (914.4mm)

Maximum Speed: 40,000 iph

Full Color QuadTech MultiCam Auto Registration for 1-3 Broadsheet Section

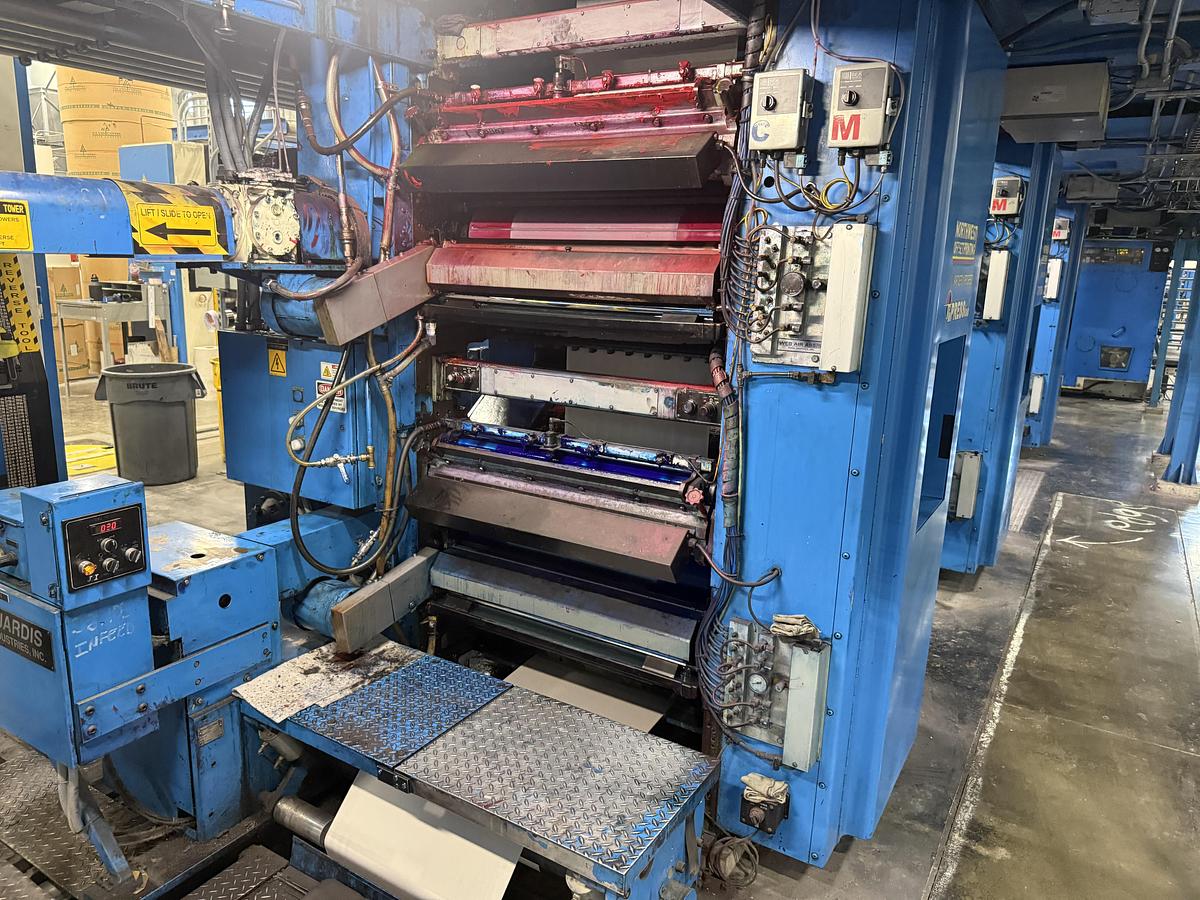

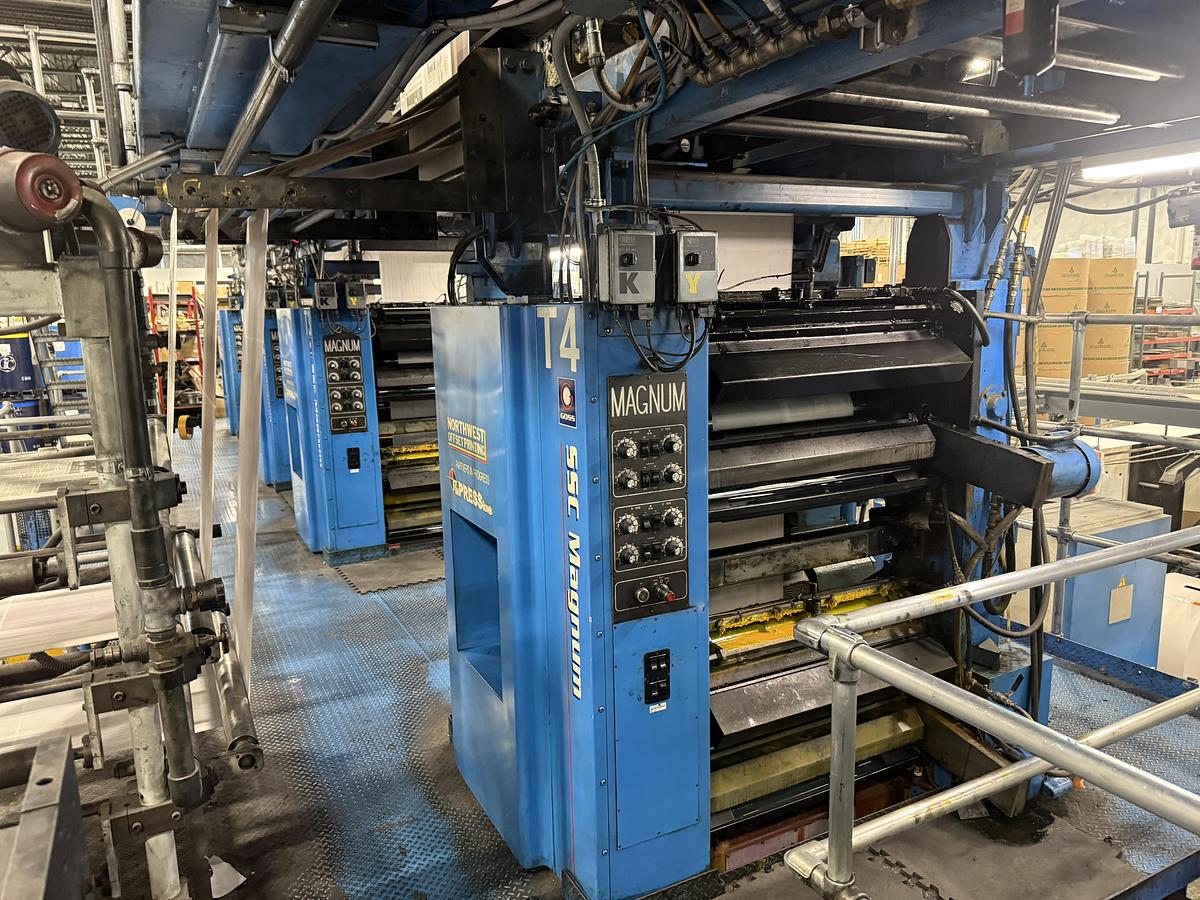

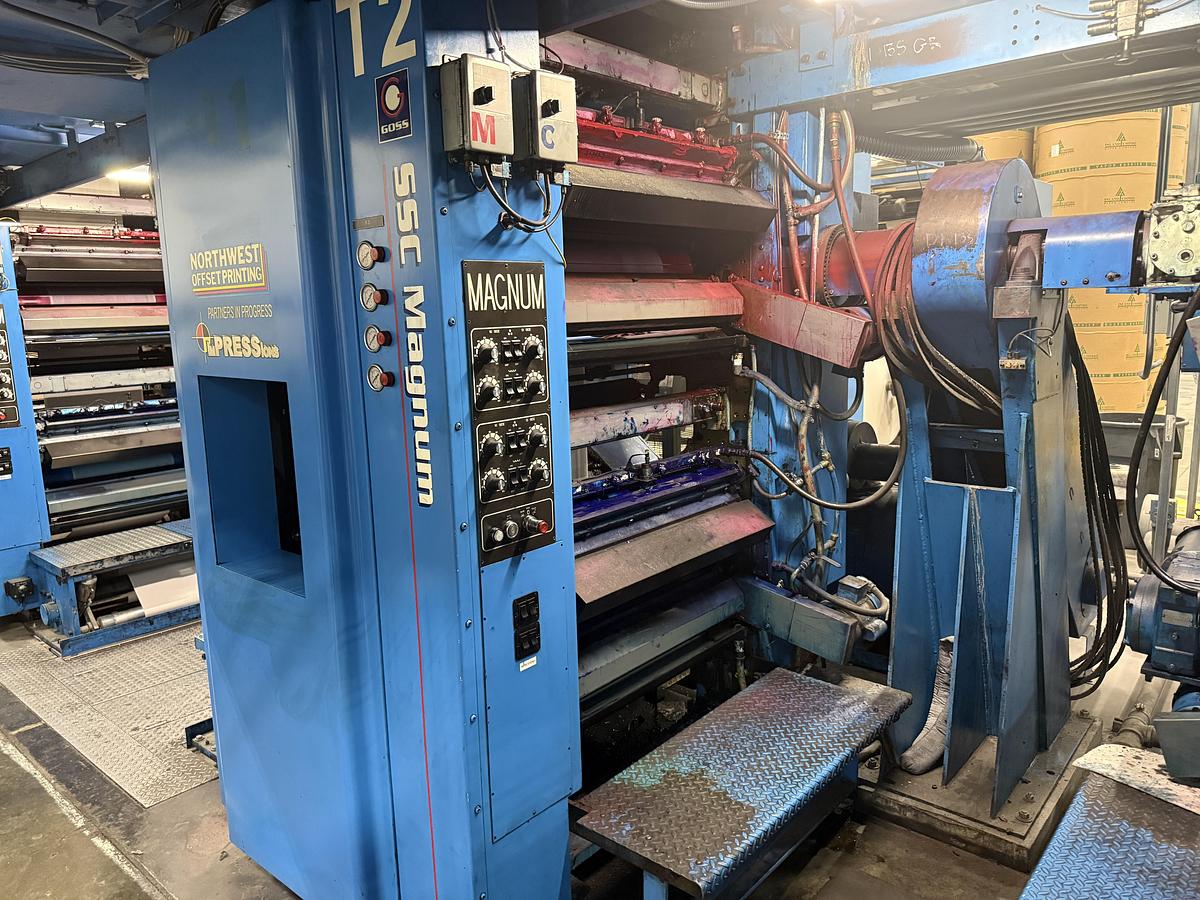

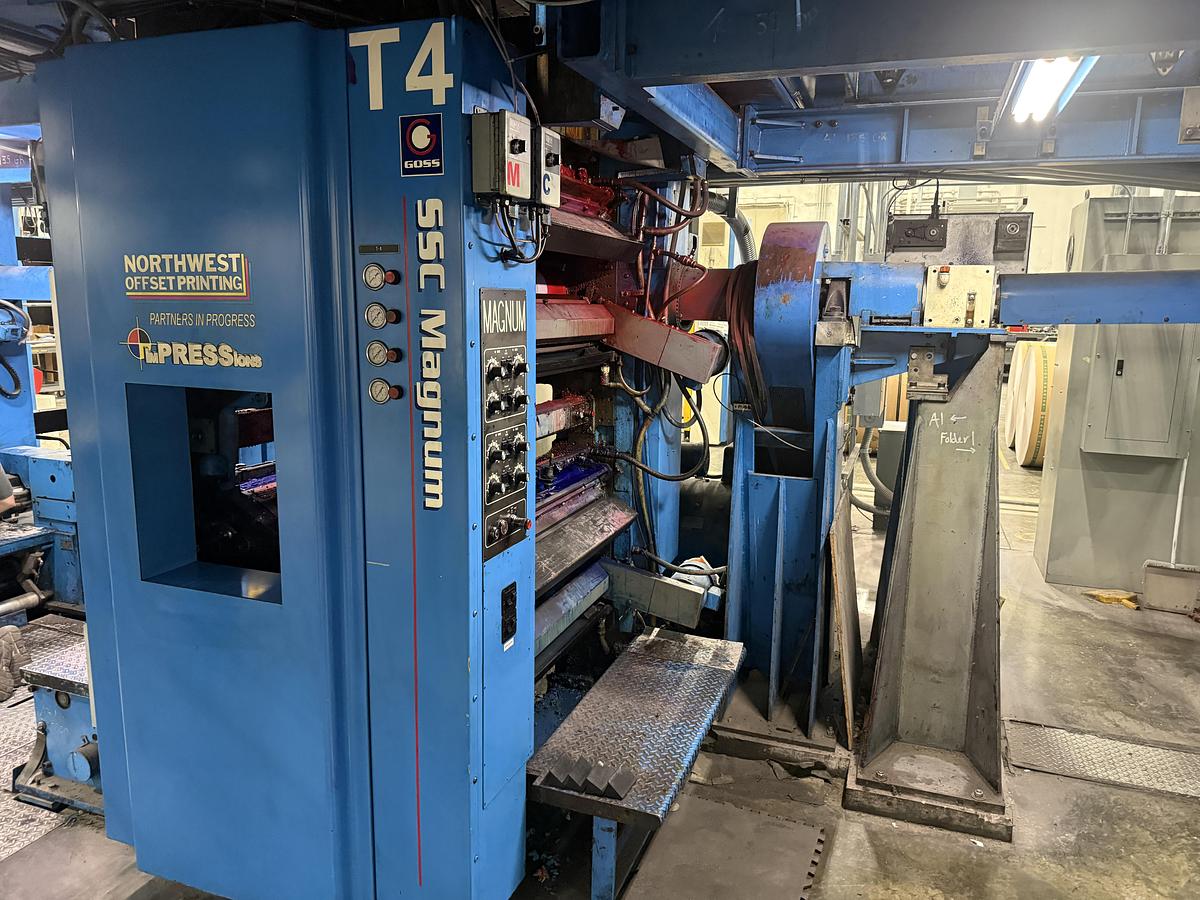

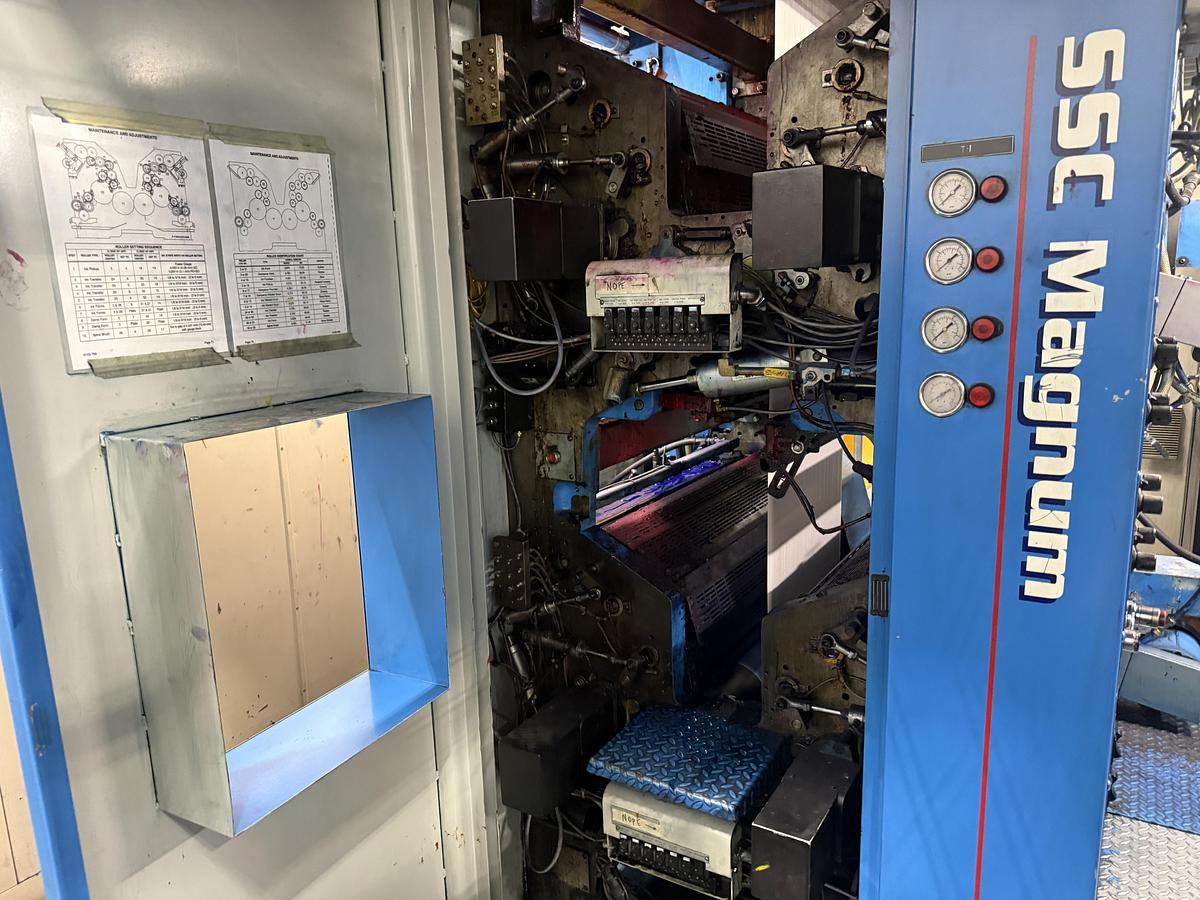

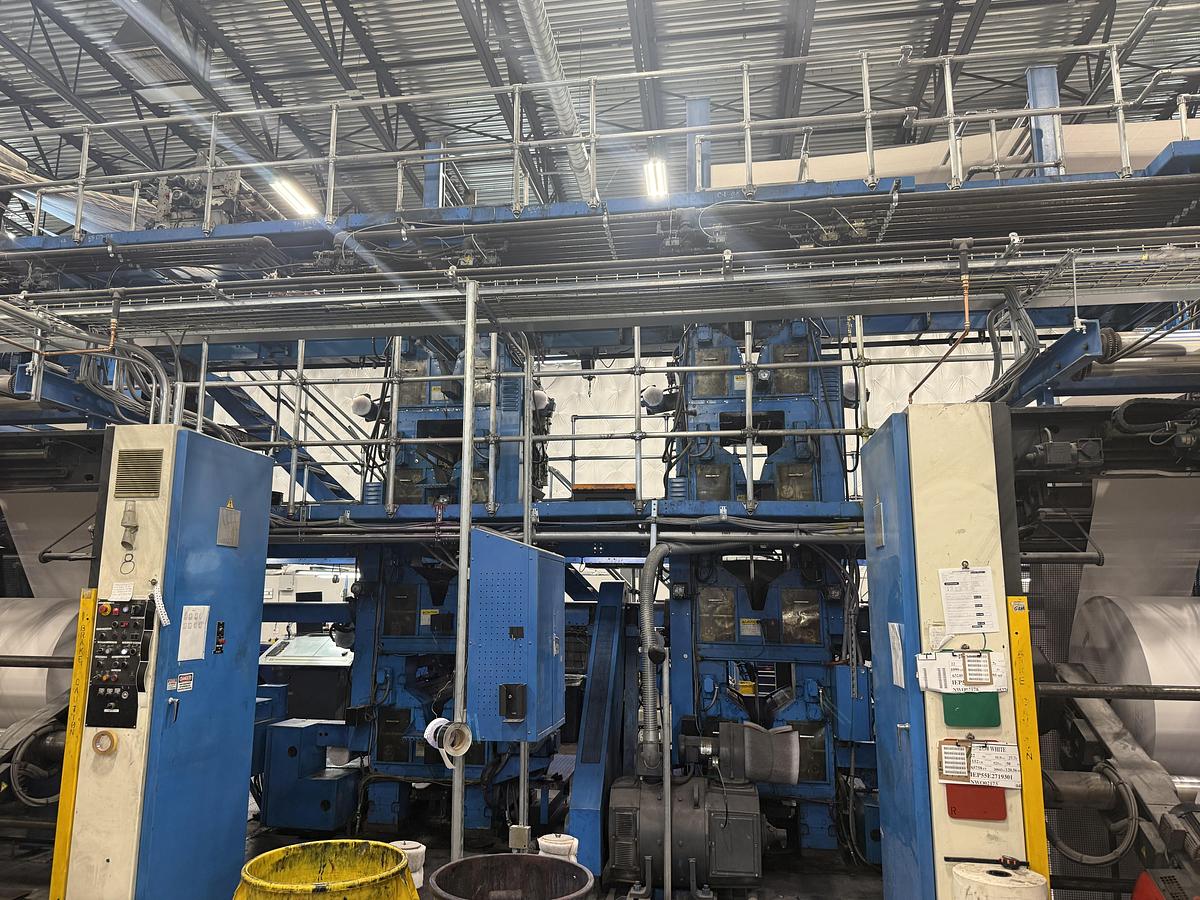

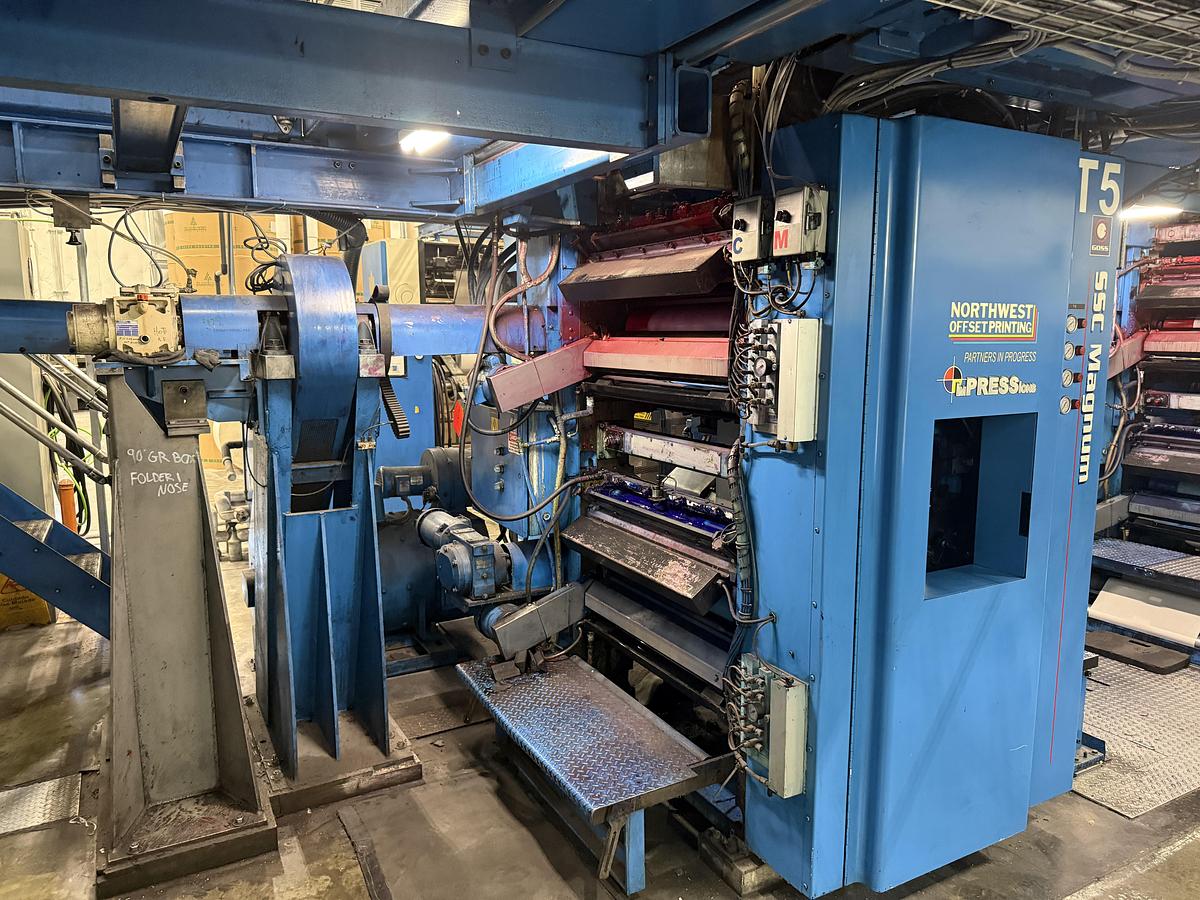

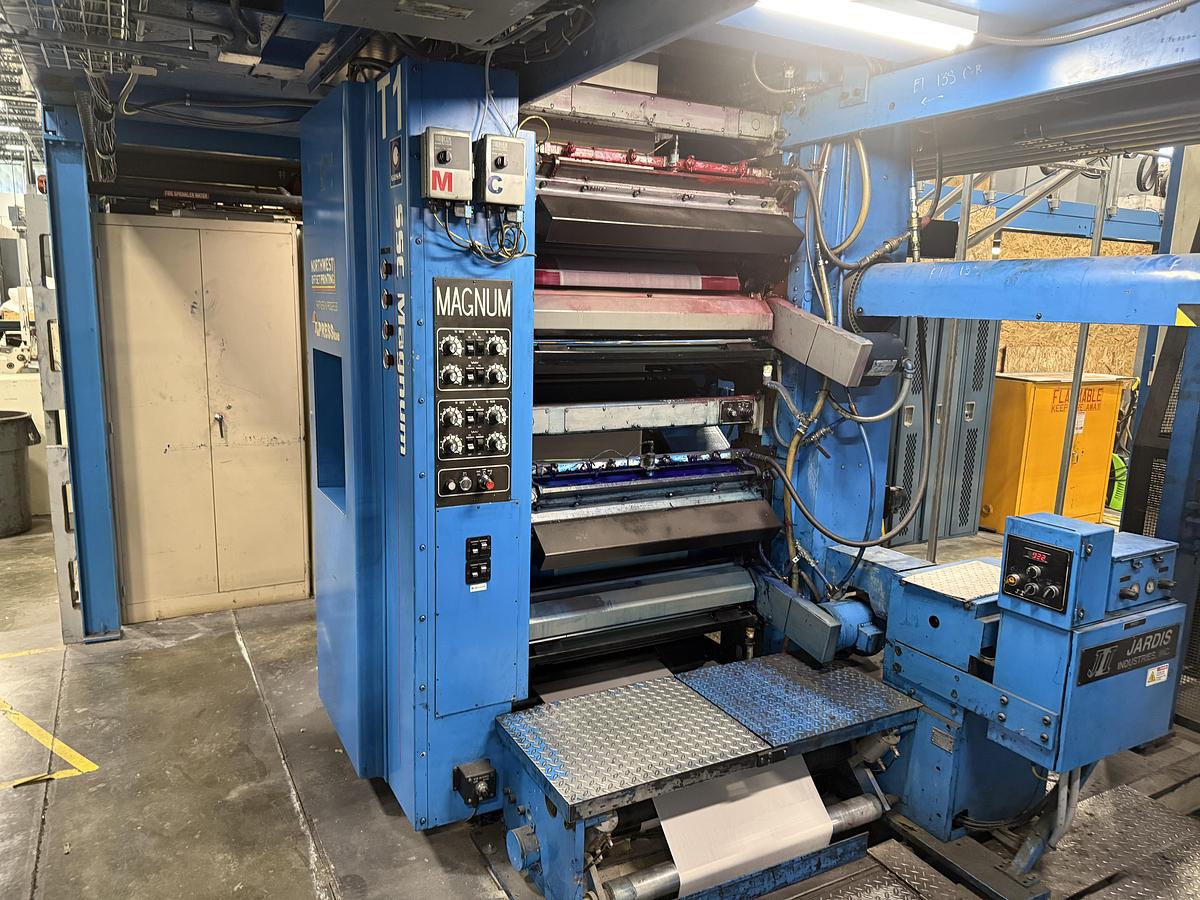

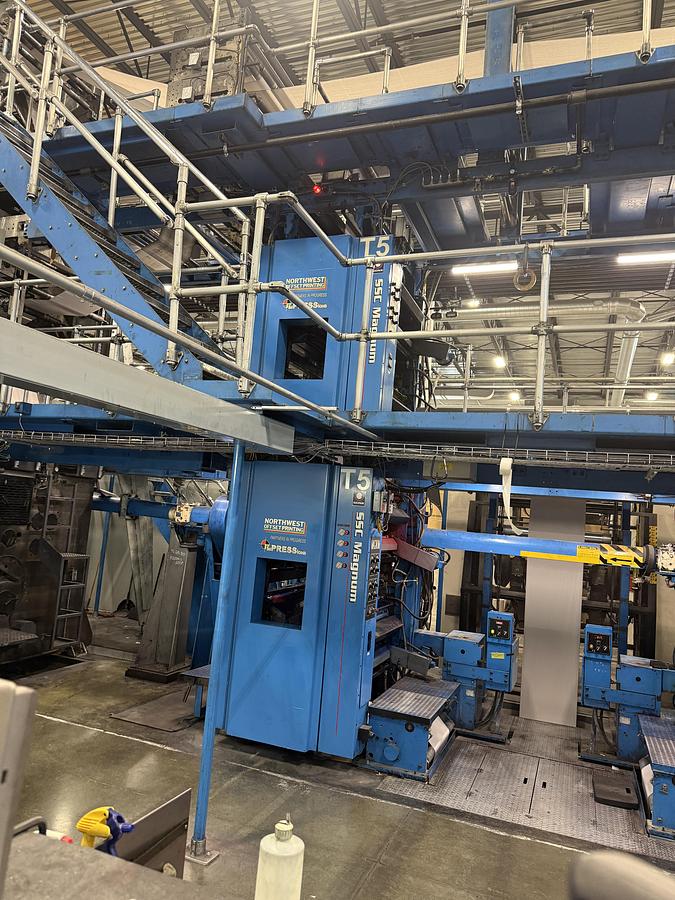

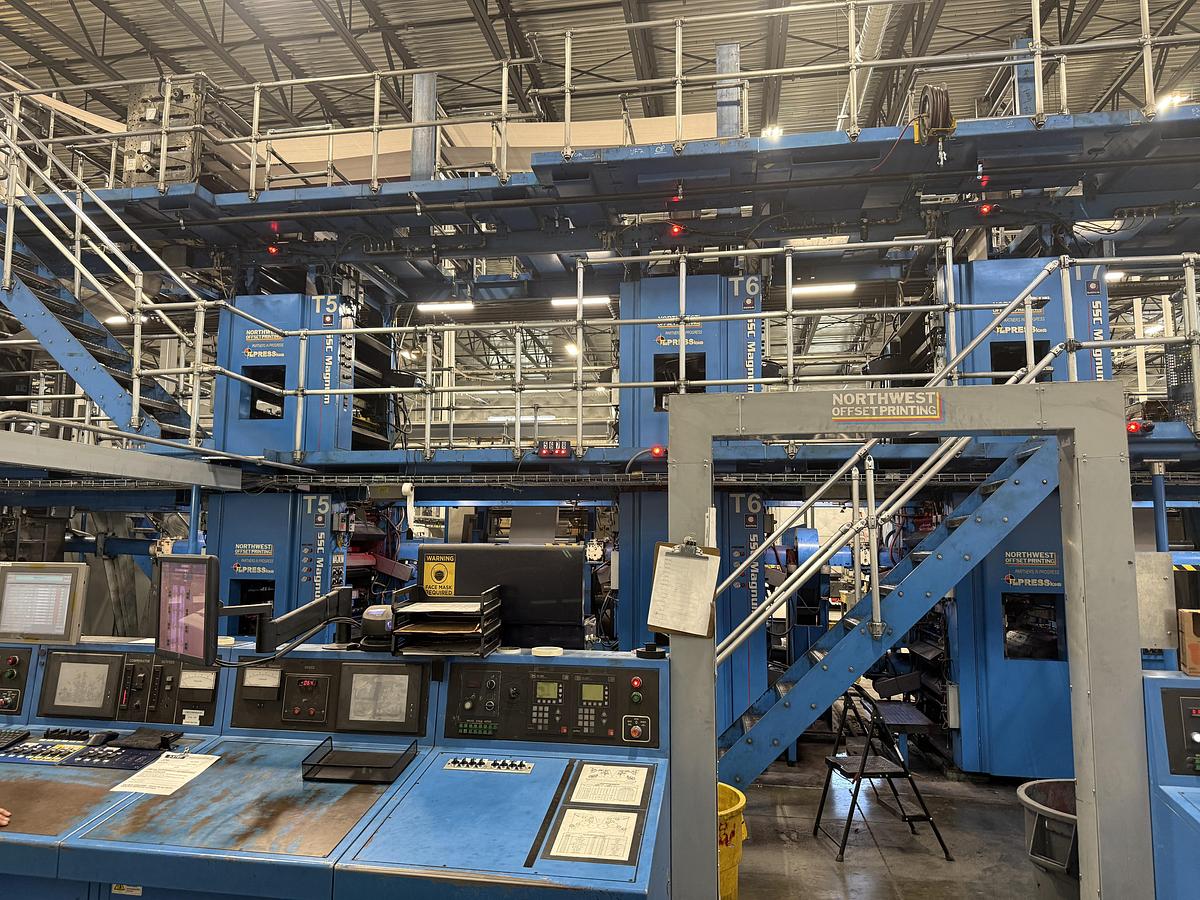

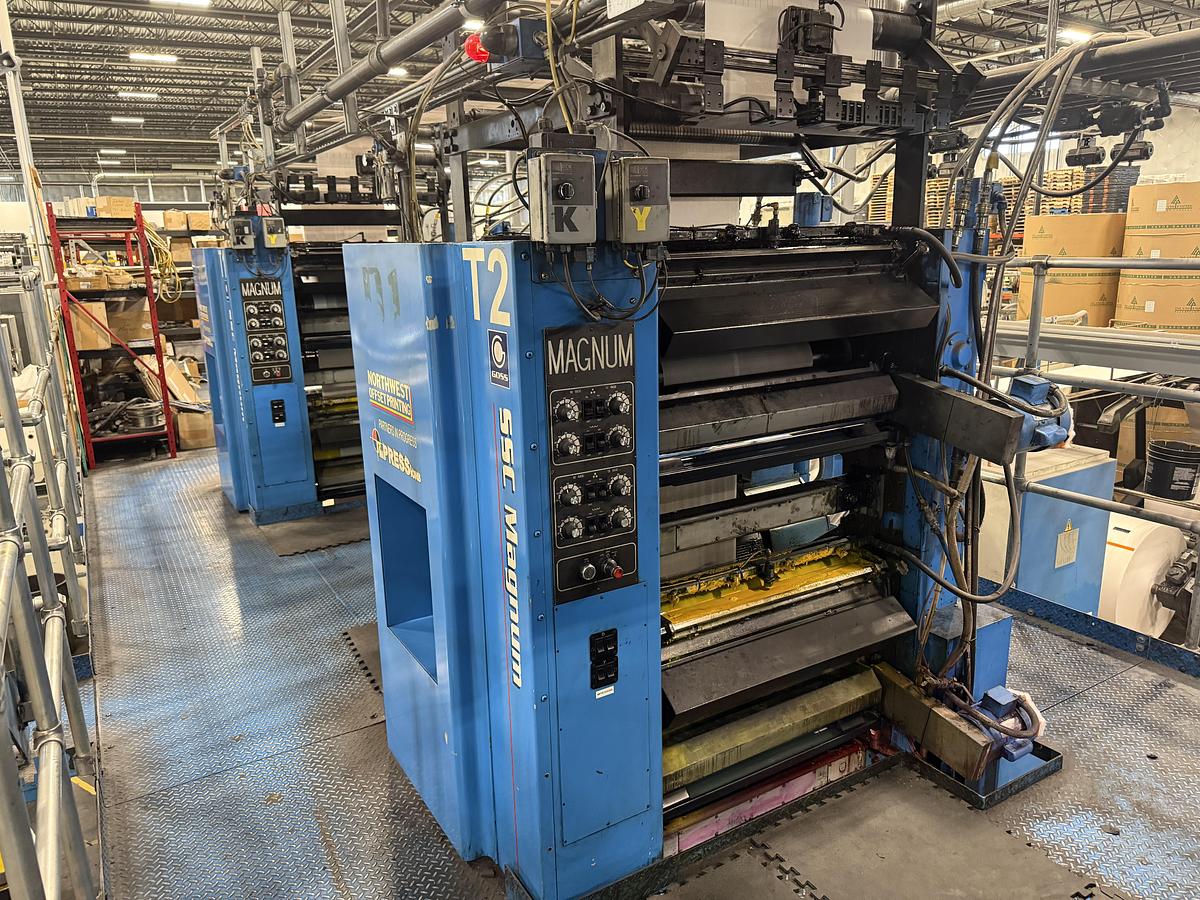

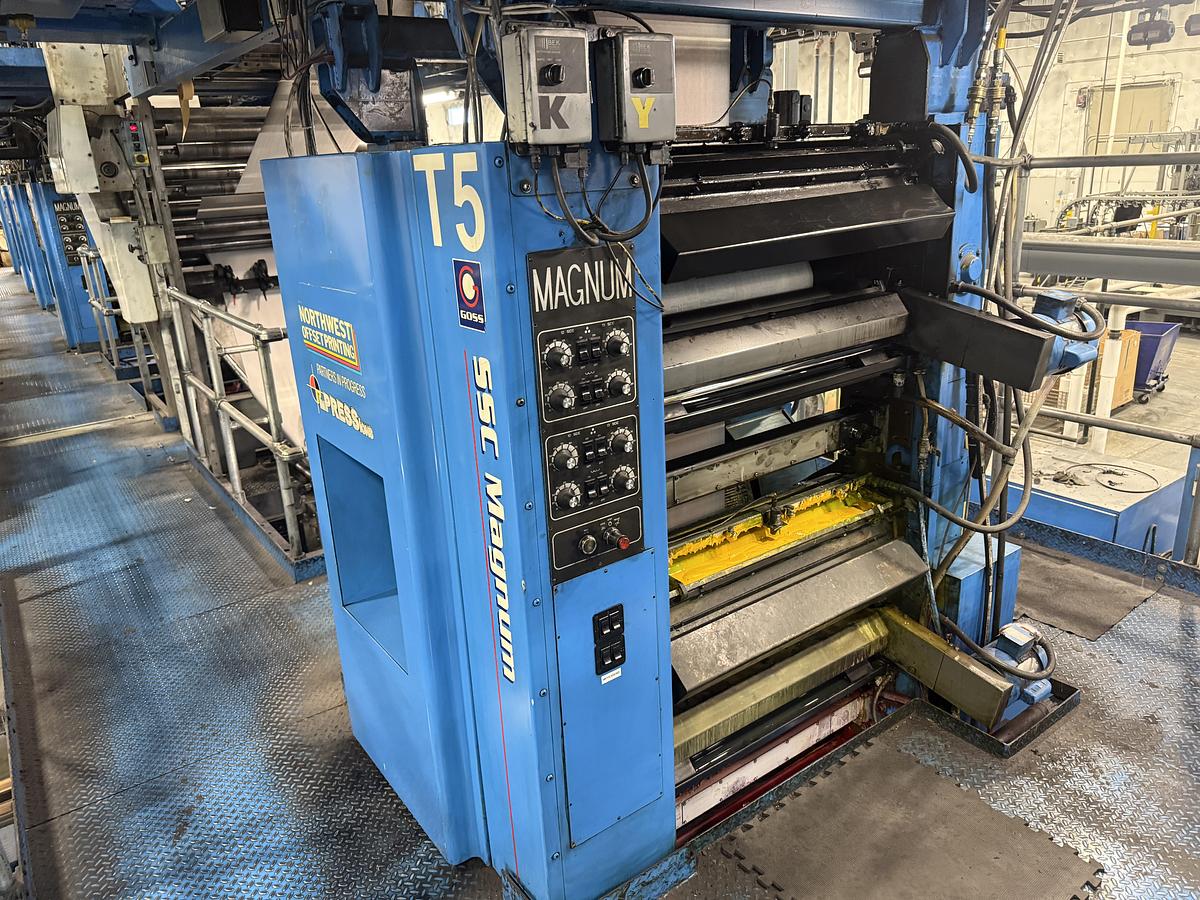

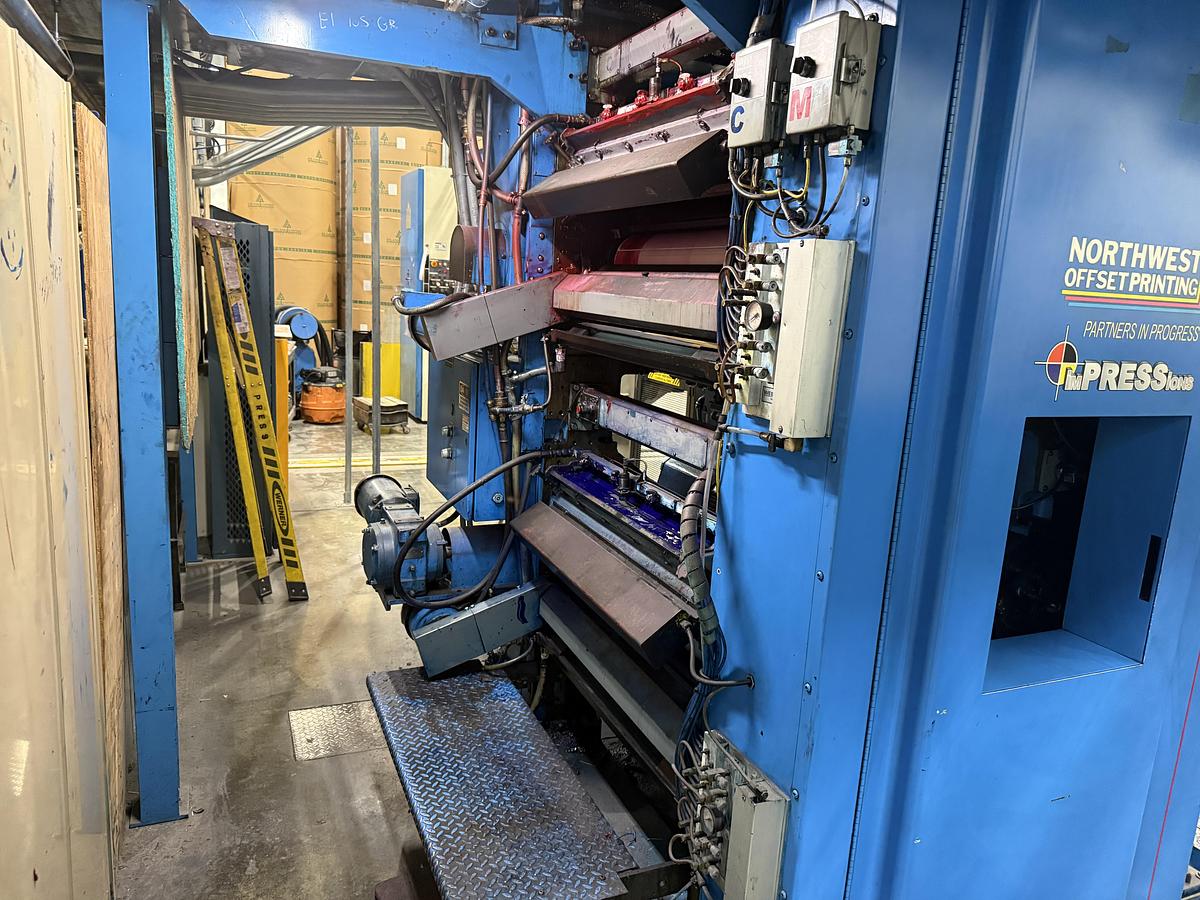

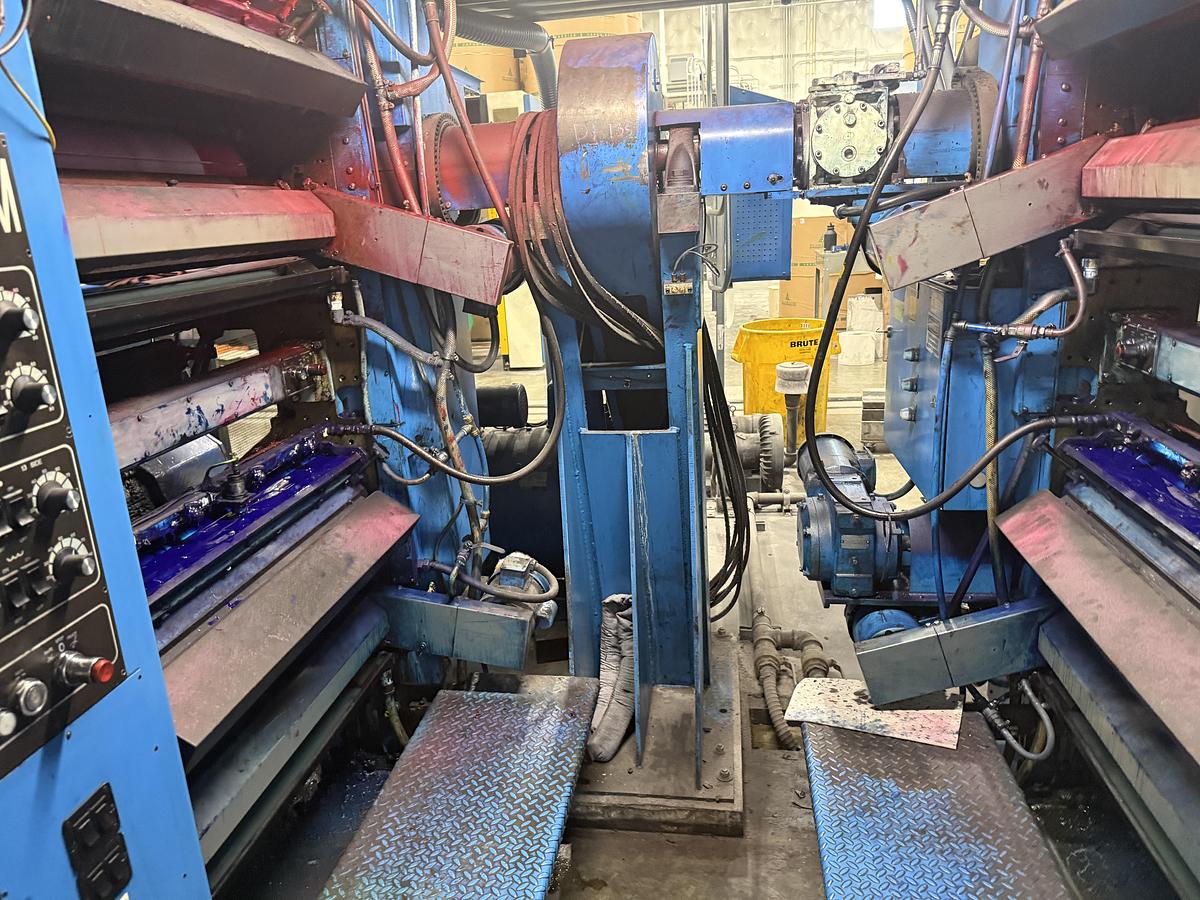

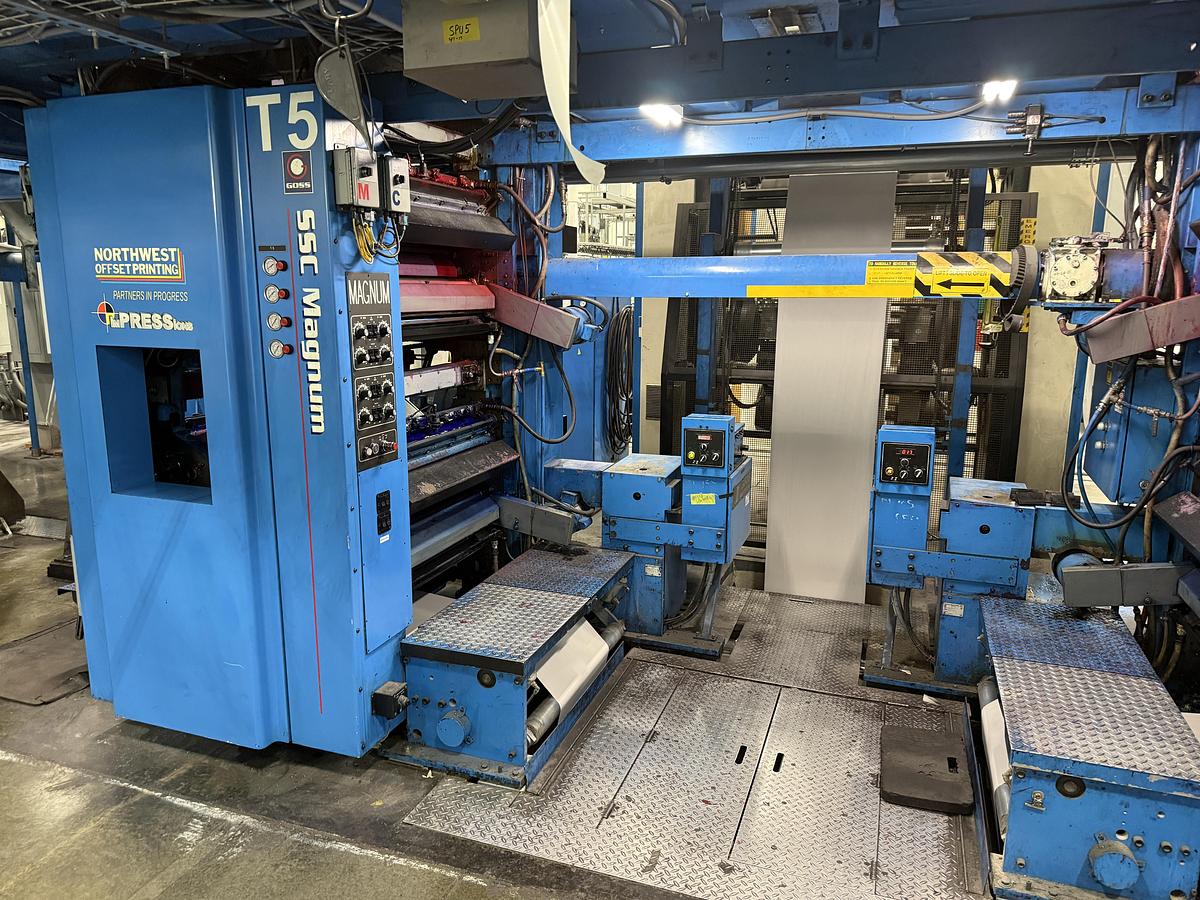

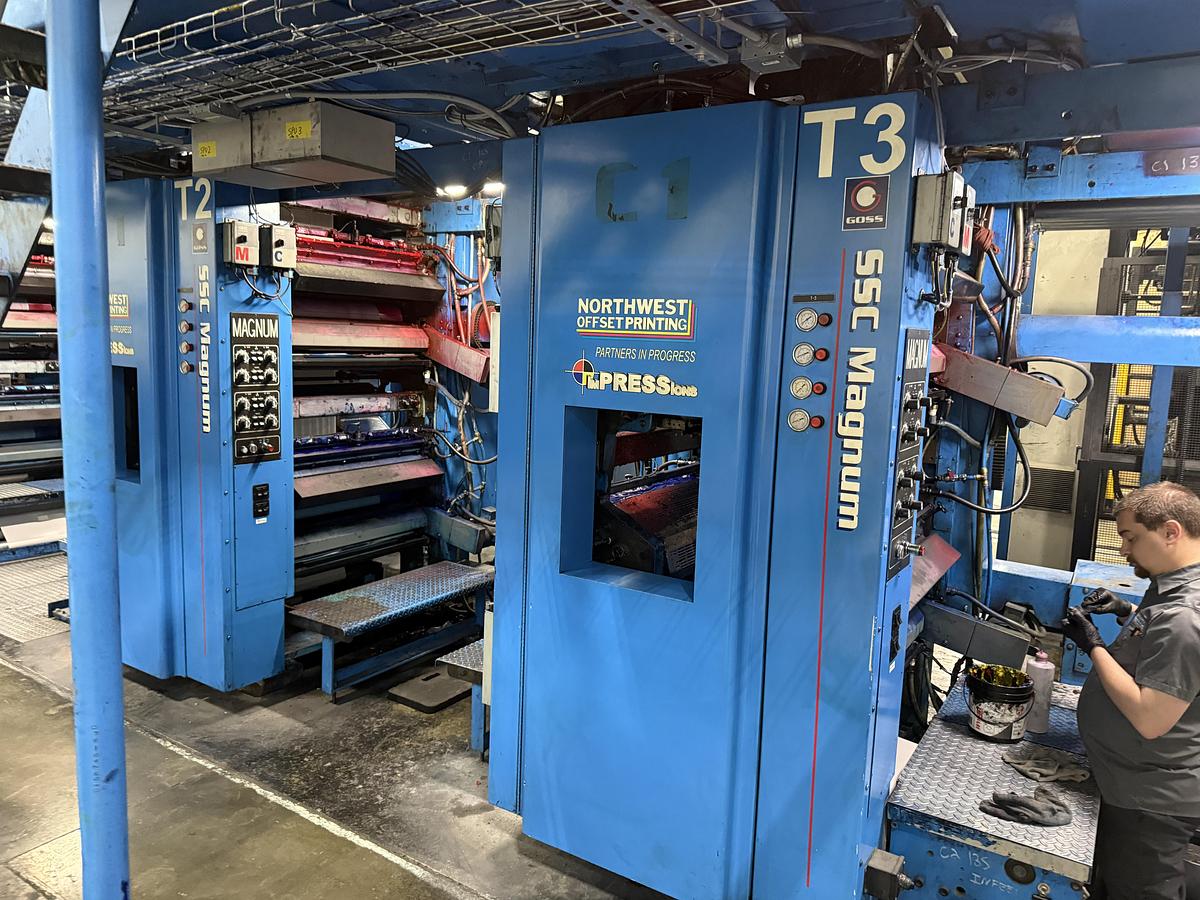

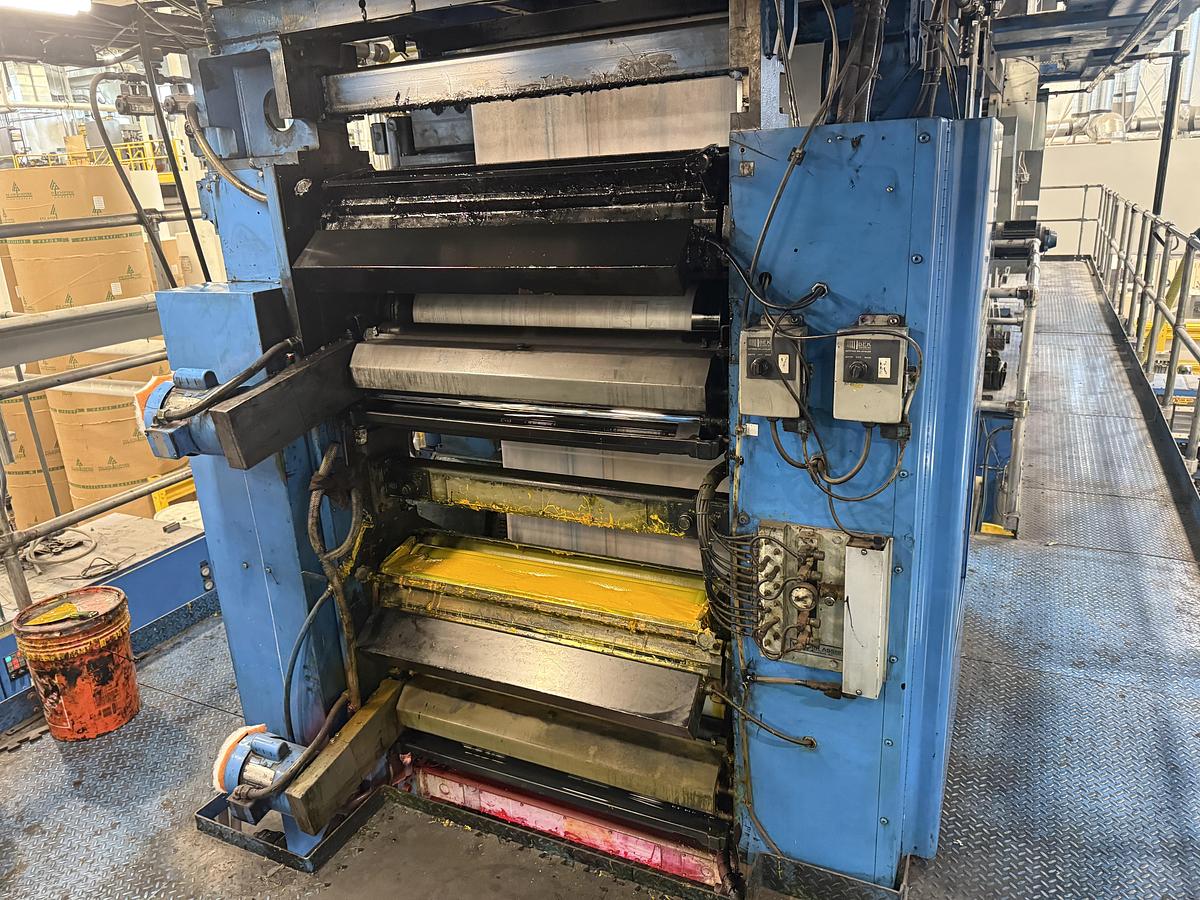

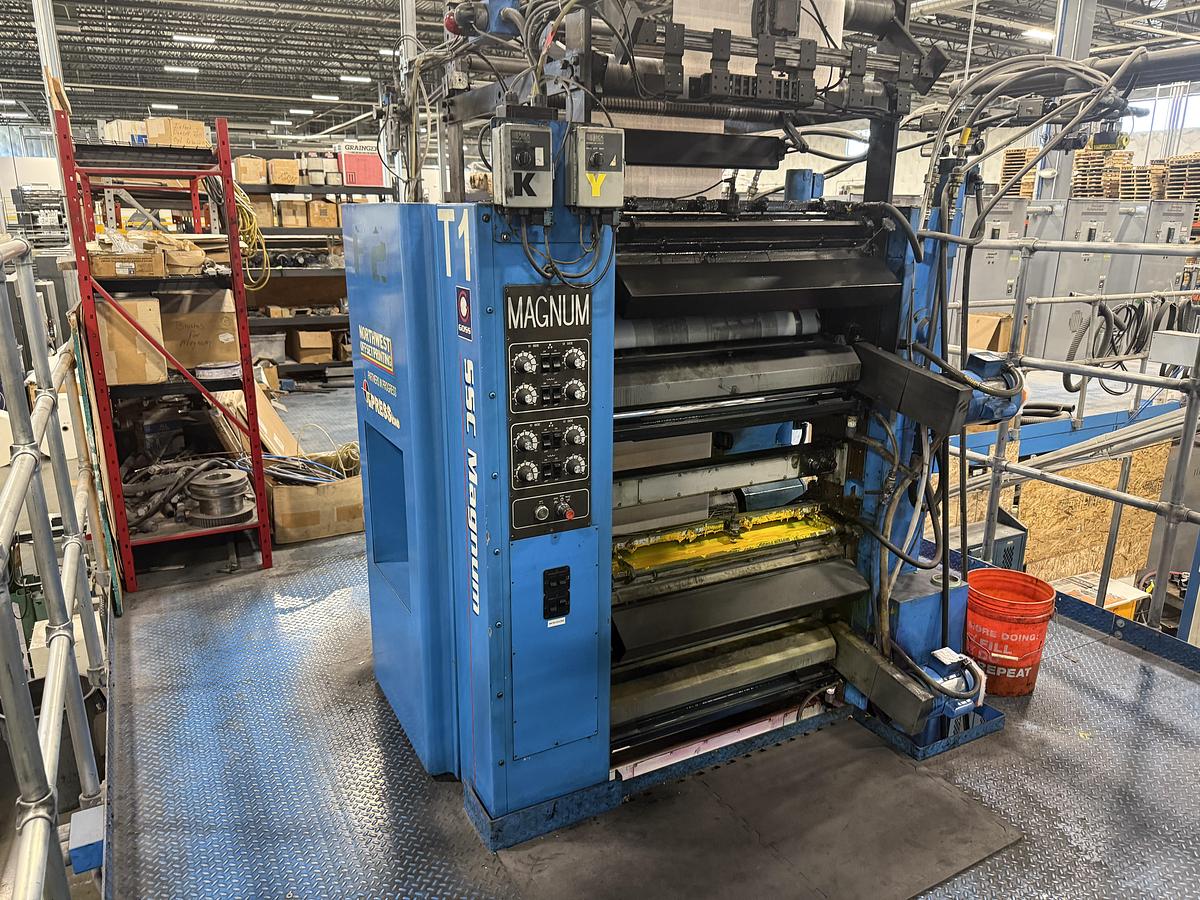

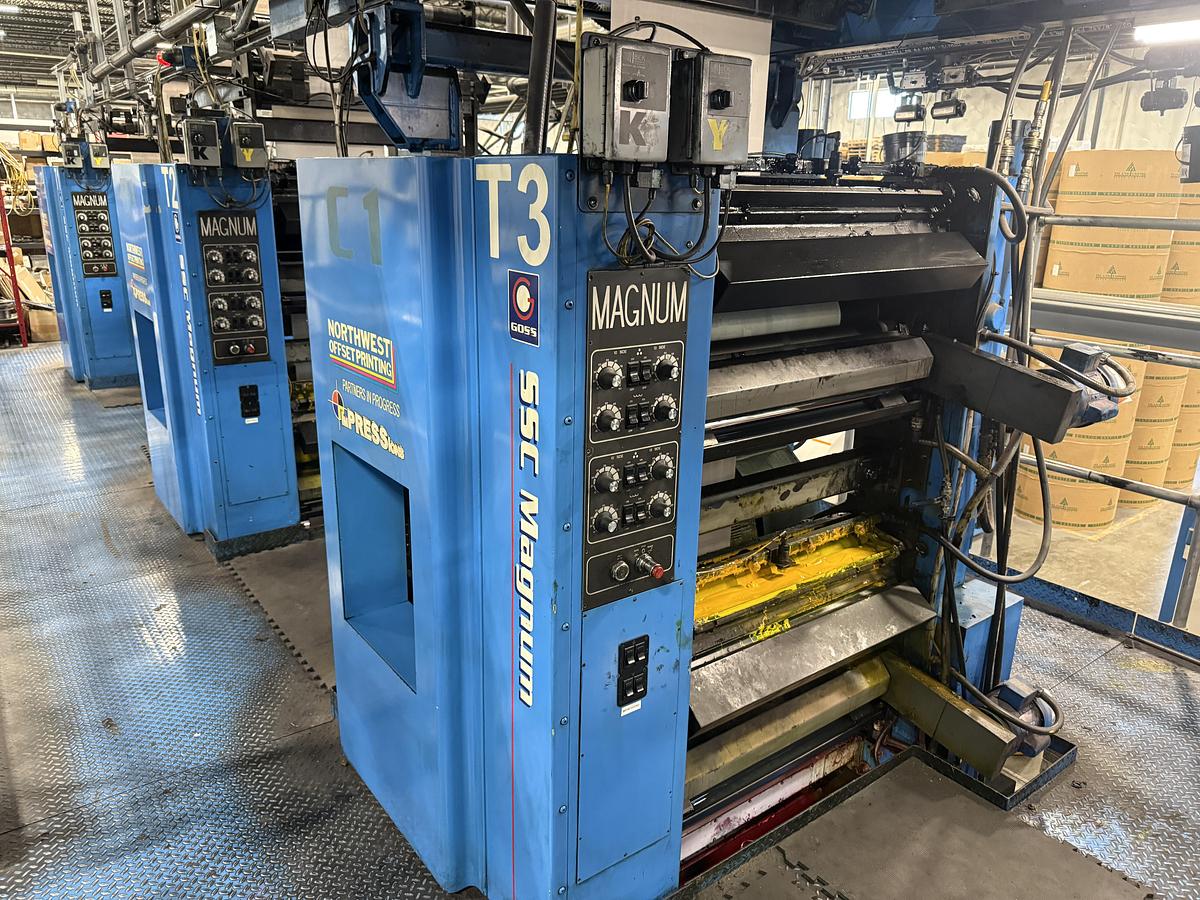

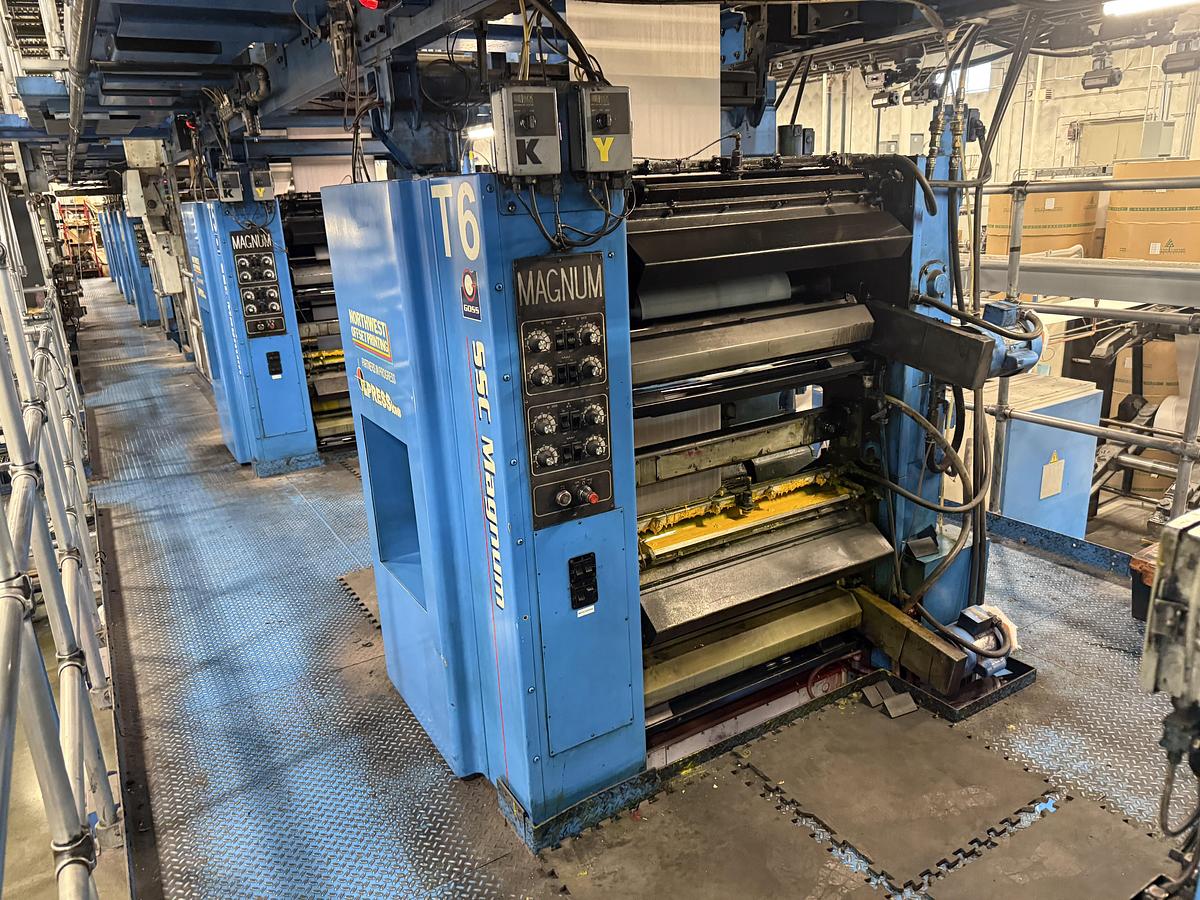

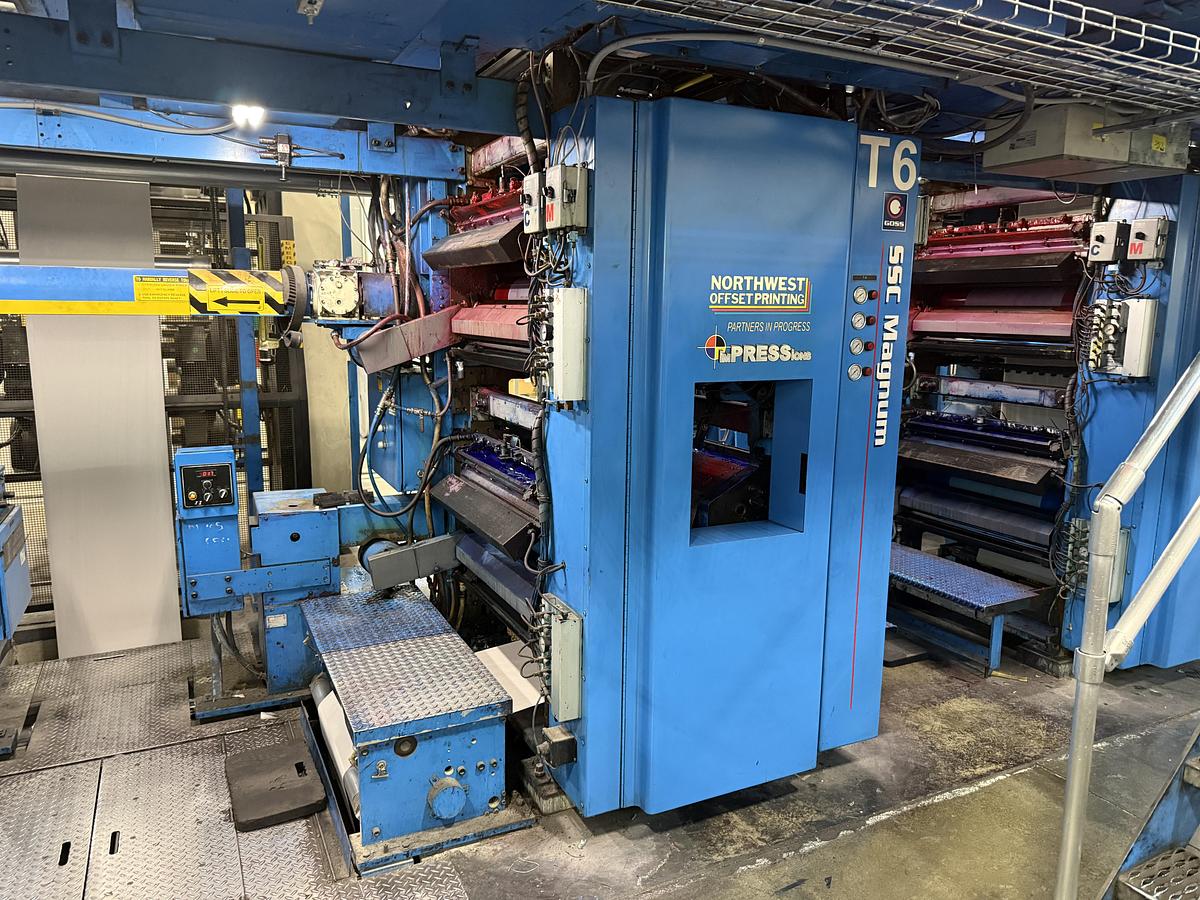

(8) 4 High Towers with (3) 3-Wide Units

• Baldwin Remote Inking w/ AVT Digital Preset Upgrade
• Baldwin Motorized Register Upgrade
• Baldwin Multi-Cam Auto Register Cutoff Control Upgrade
• Baldwin Ultra Sonic Web Detection Upgrade
• Pneumatic Throw-Off Functions
• Spiral Brush Dampening
• Slot Plate Cylinders w/ short Journals for 0.12" Plates (2 per cylinder)
• Reel Rod Blanket Cylinders w/ Bearers
• Motorized Ink Fountain Rollers
• Angle Blower Bars

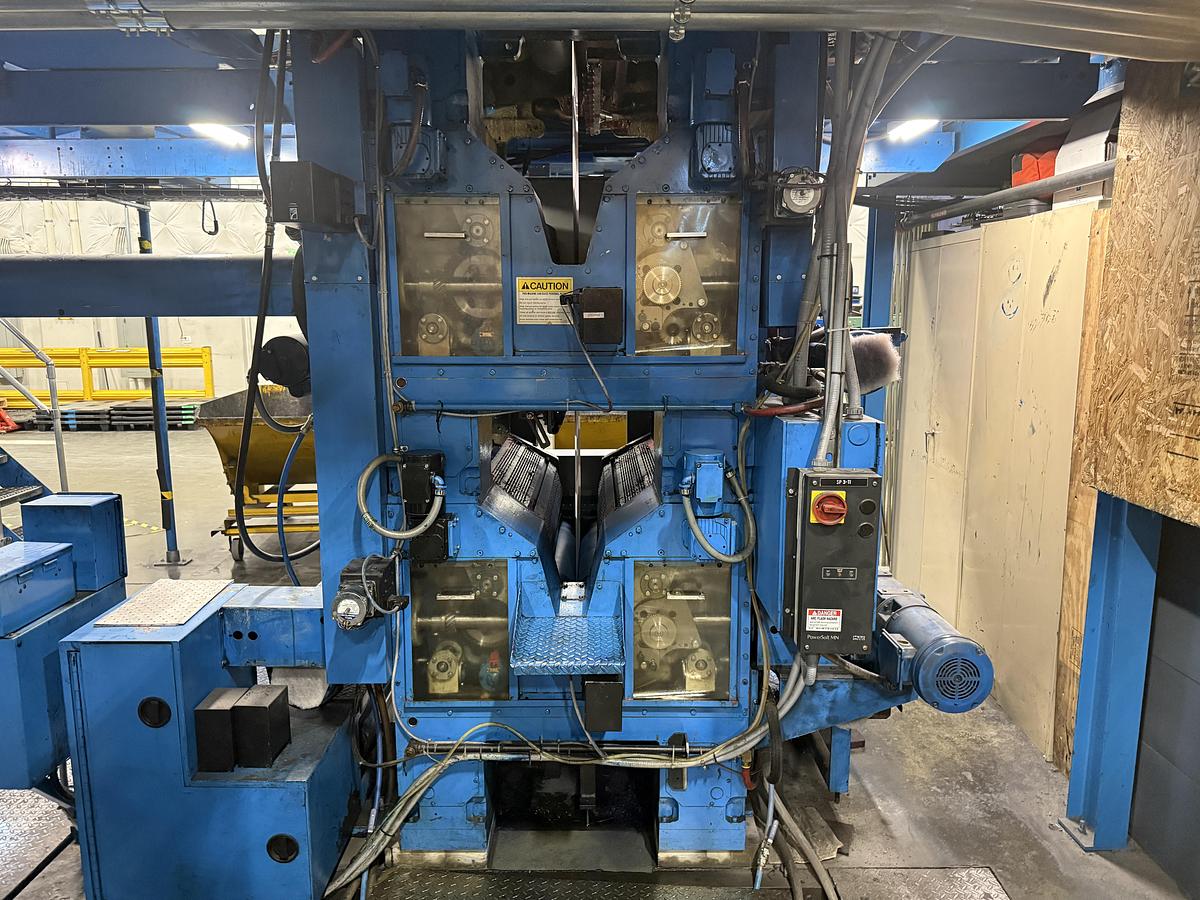

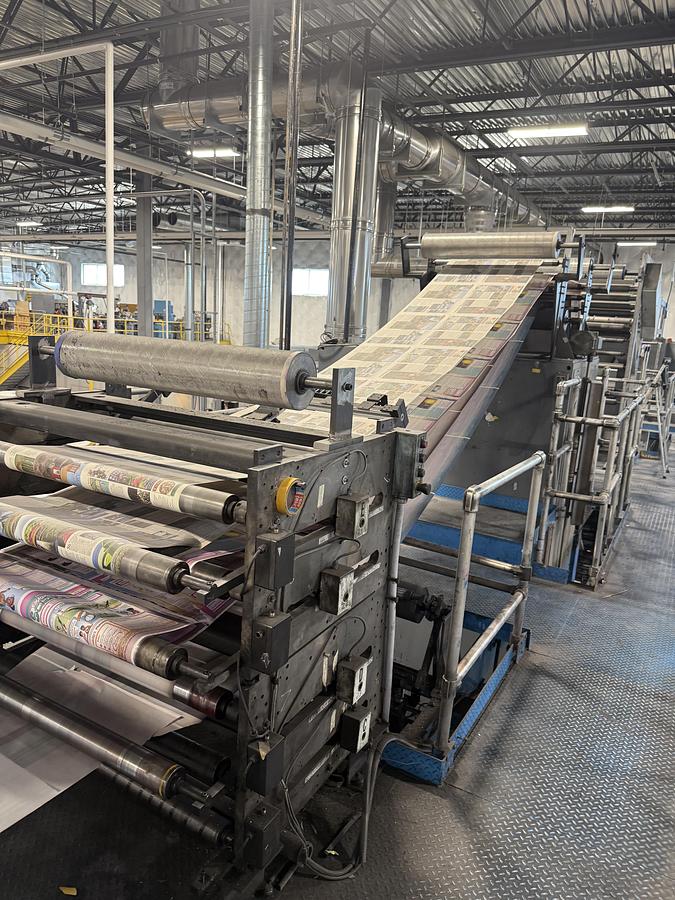

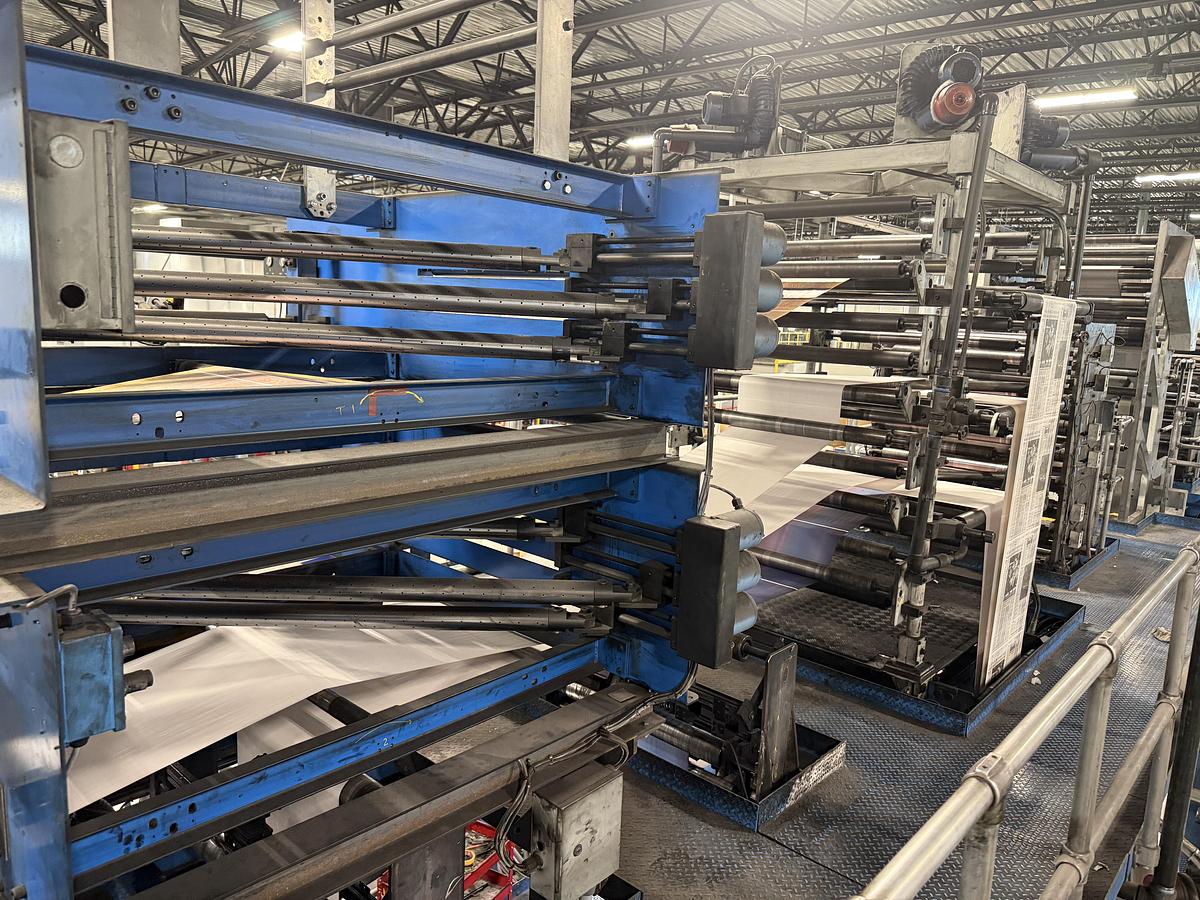

Folder #1 - Goss Universal 45 Folder w/ (3) Forming Sections

• Main Former, Second Former, and Side Former
• Driven Draw Rollers for (8) Webs
•

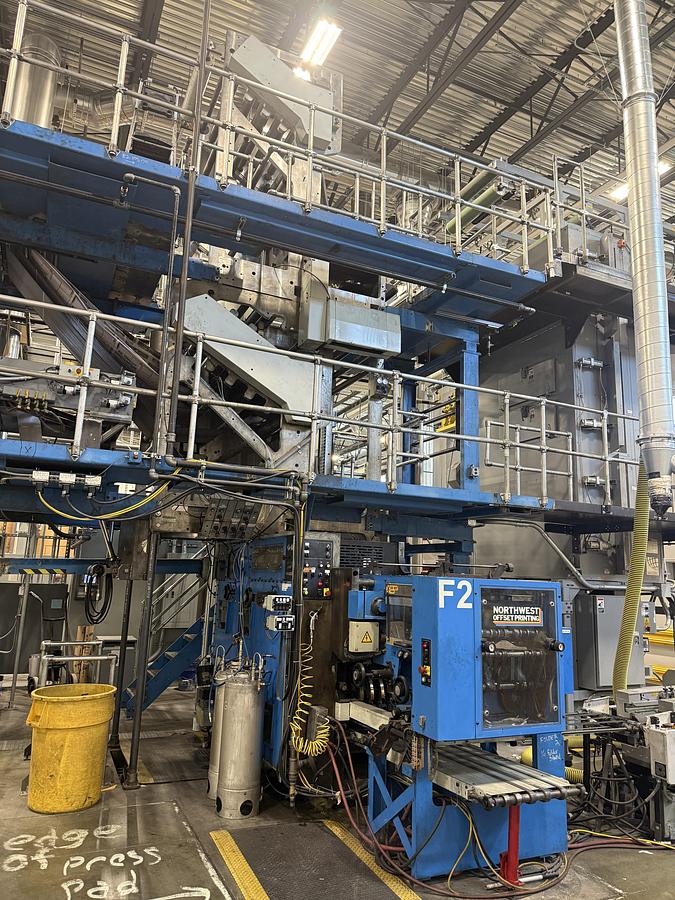

Folder #2 - Universal 45 Folder w/ (2) Forming Sections

• Half and Quarter Fold - Maximum (4) Webs
• Driven Draw Rollers for (8) Webs
• Cross Perforation Unit Upgrade

Folder #1 & #2 -

• Rated for 12 Webs Maximum Over Lower Former Boards
• 1:3:3 Jaw for Tabloids & Broadsheets
• Two Nip Sets
• 1-Around Cutting Cylinder; 3-Around Folding Cylinder; 3-Around Jaw Cylinder
• Manual On-The-Fly Lap Adjustment
• Manual at Stand Still Pin Cam Adjustment
• Quick at Stand Still Folding Cylinder Diameter Change Over
• 6-Blade Reverse Delivery System
• Electro-Pneumatic Clutch with Overload Protection
• Automatic Gear Lubrication with Low Oil Detection
• RTF with Adjustable Gain
• Chrome-Plated Air Formers w/ Blower
• Fricton-Driven Pneumatically Activated Tabloid Slitter

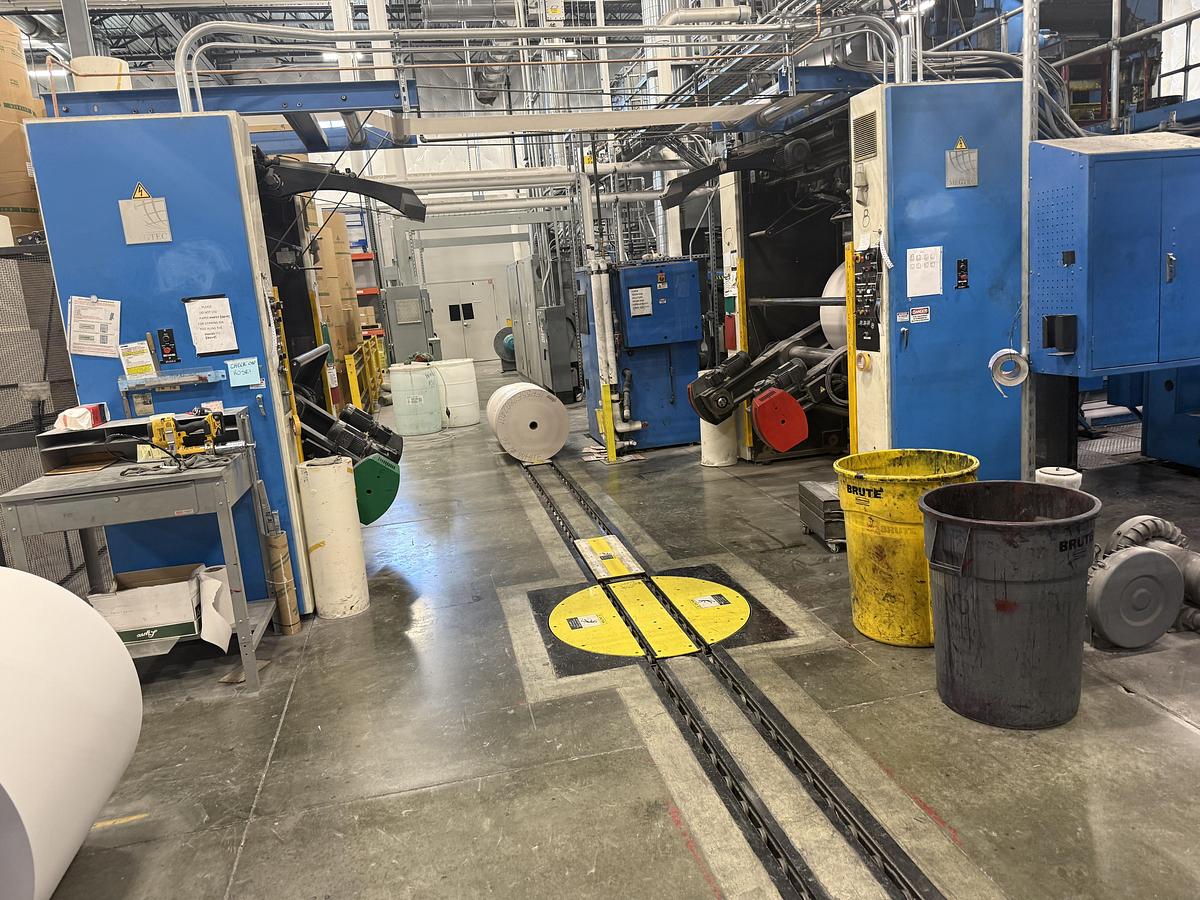

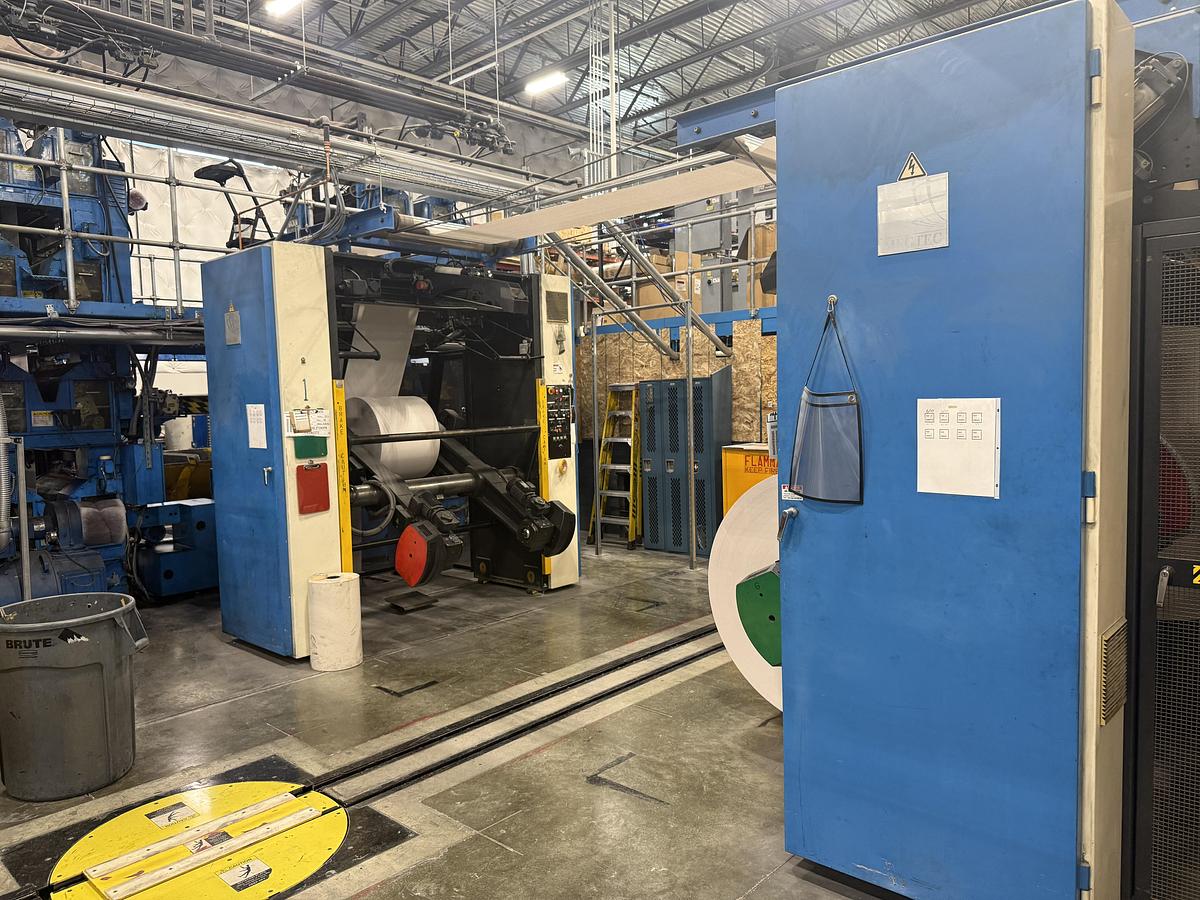

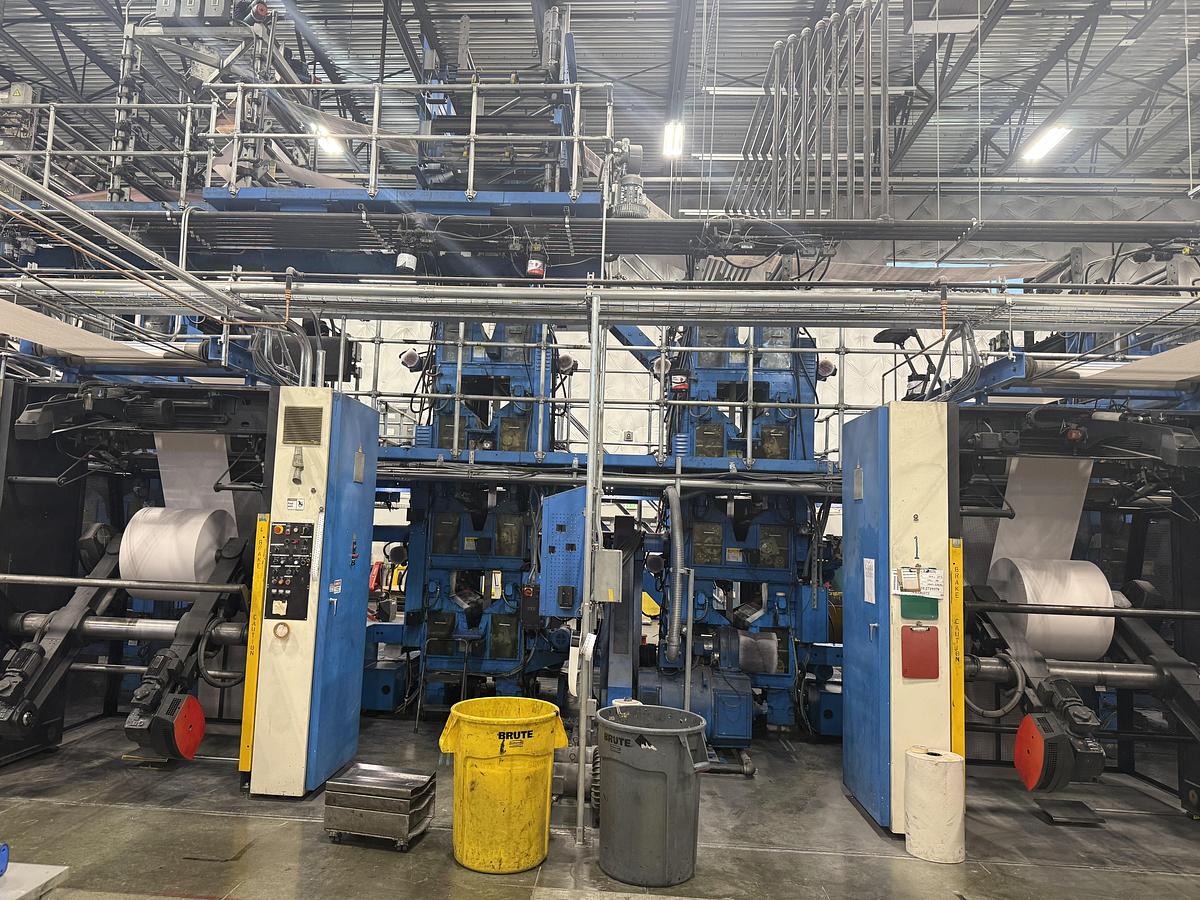

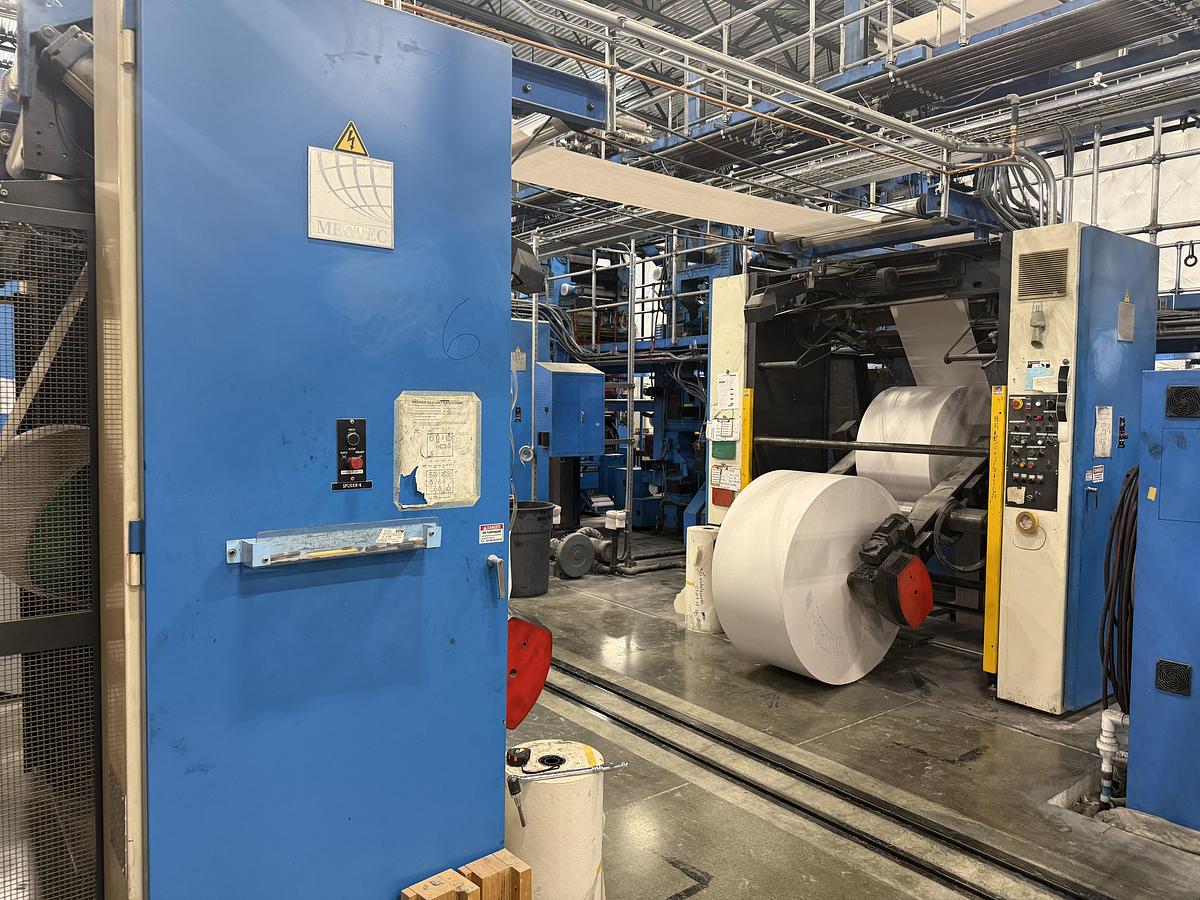

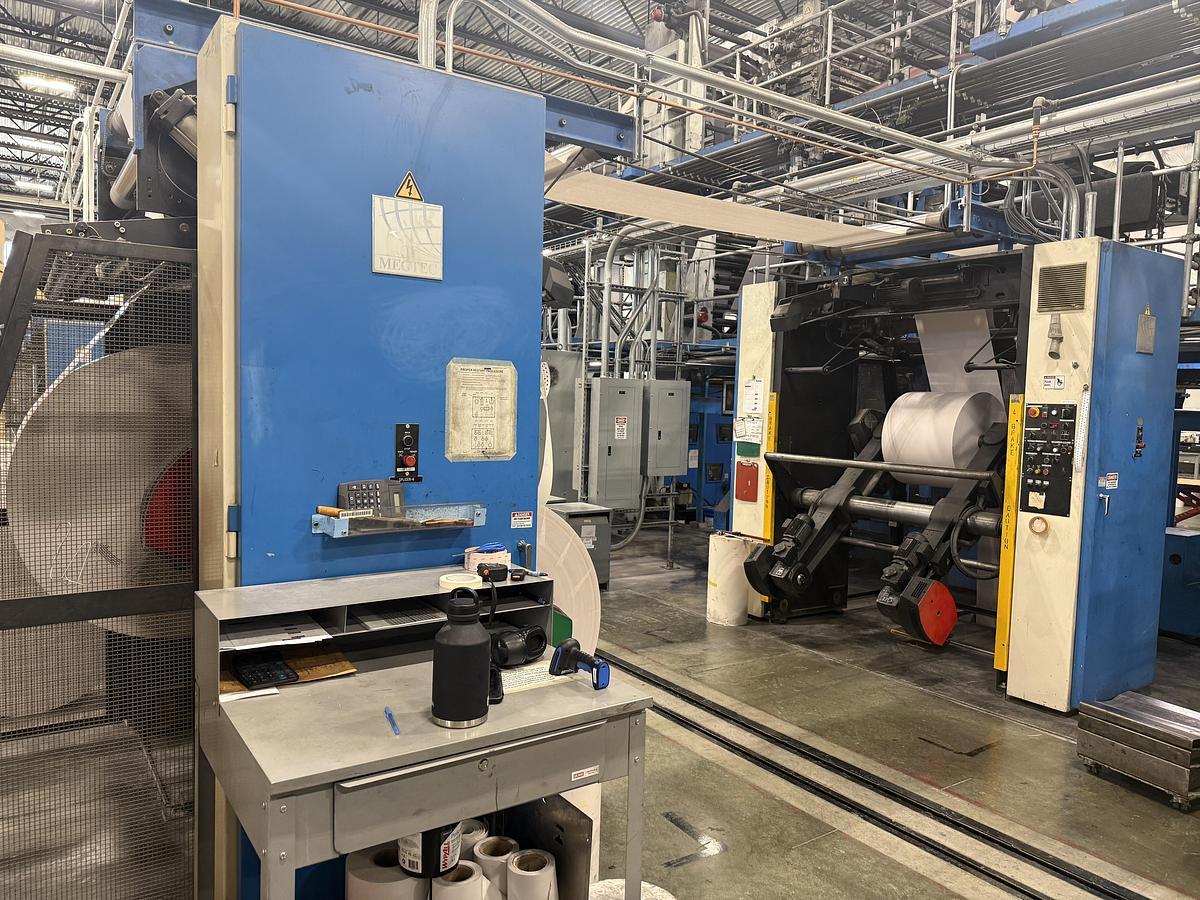

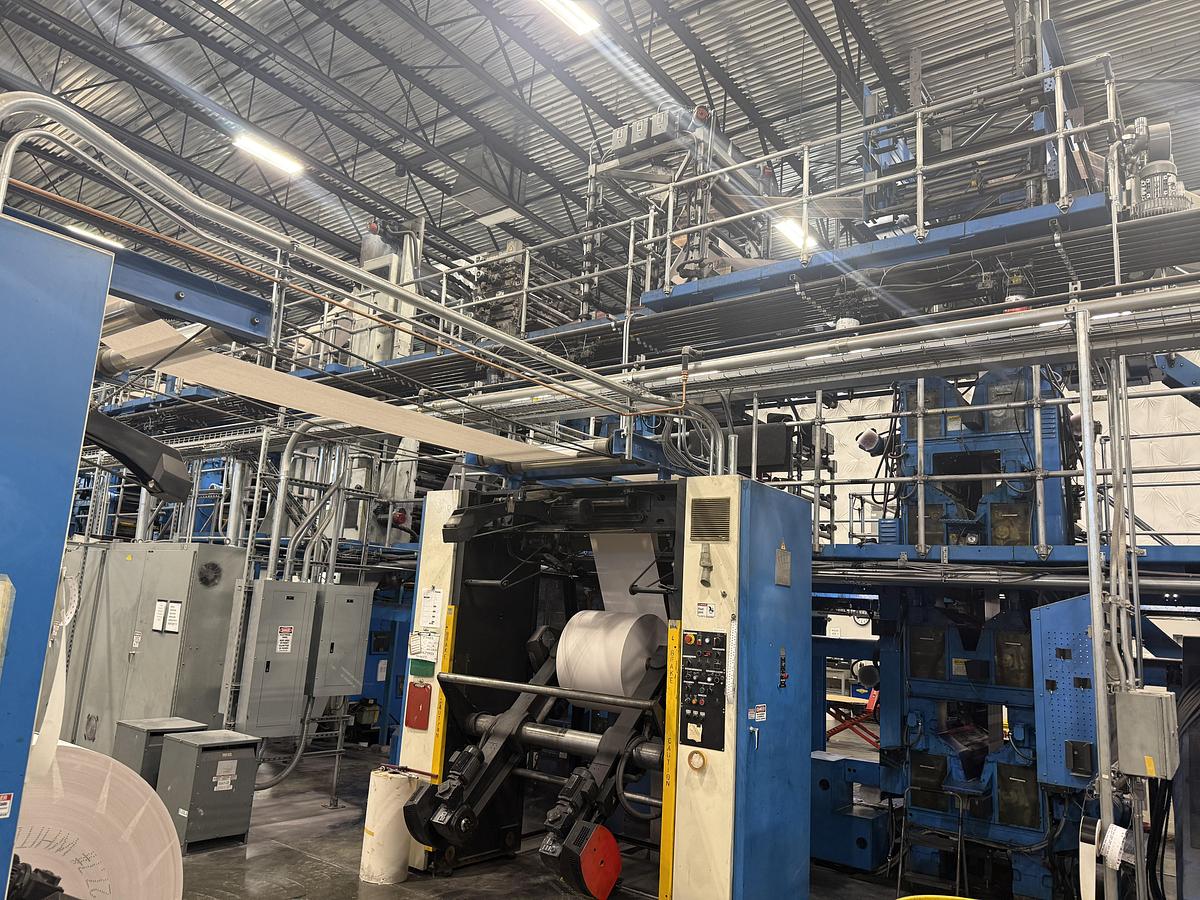

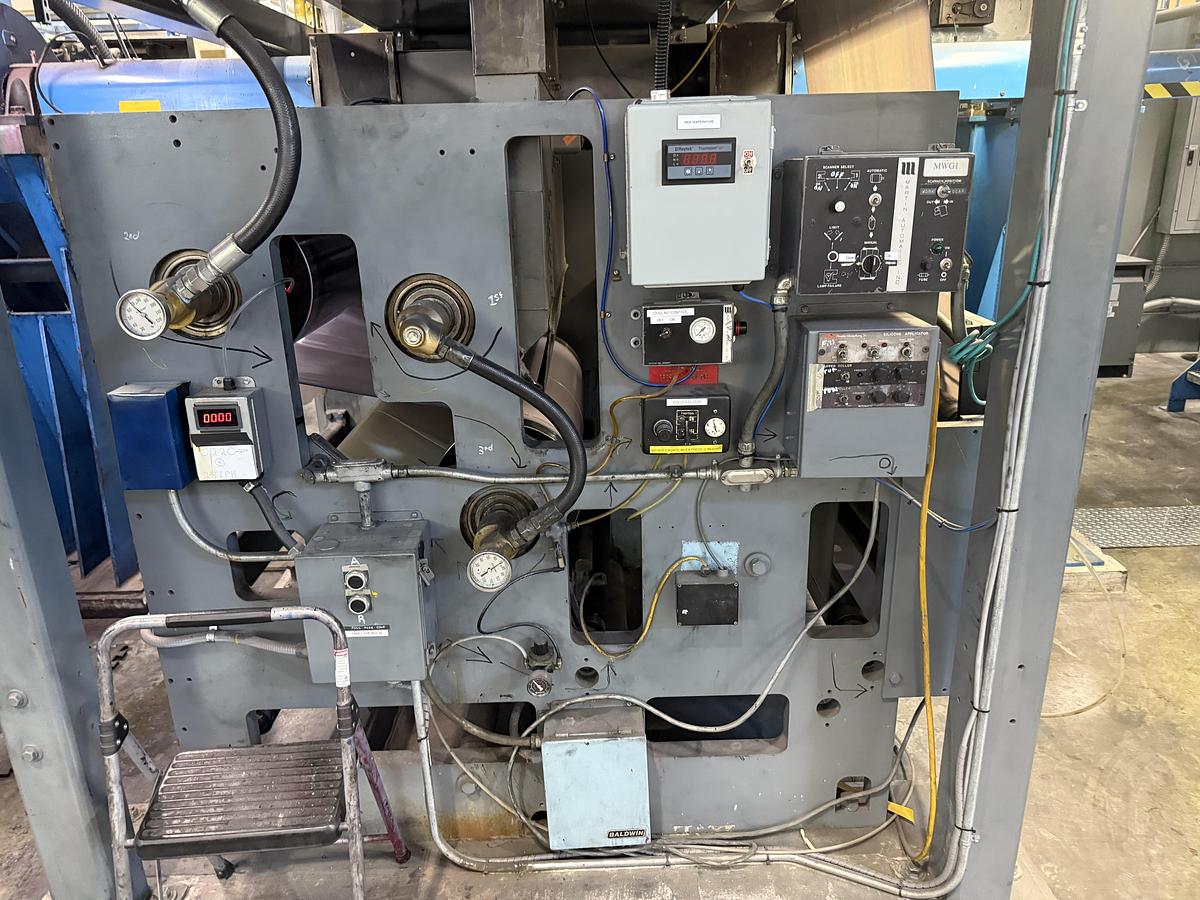

Eight (8) Megtec DLP 1000-40 Matched Speed Flying Slicers

• (4) Tanem Sets
• Motorized Web-Over Assemblies
• 50" Maximum Diameter
• Core Breaking, Programmable Controller, Local & Remote Push Buttons, Manual Arm Positioning, Internal Motorized Web, Remote Sidelay/Tension
• Remote "Selectability"

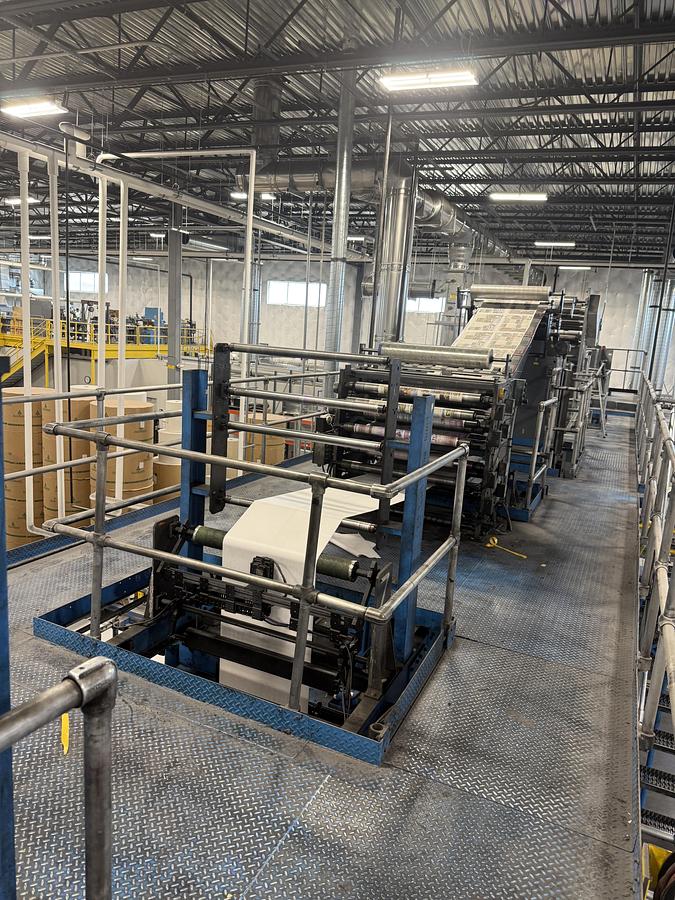

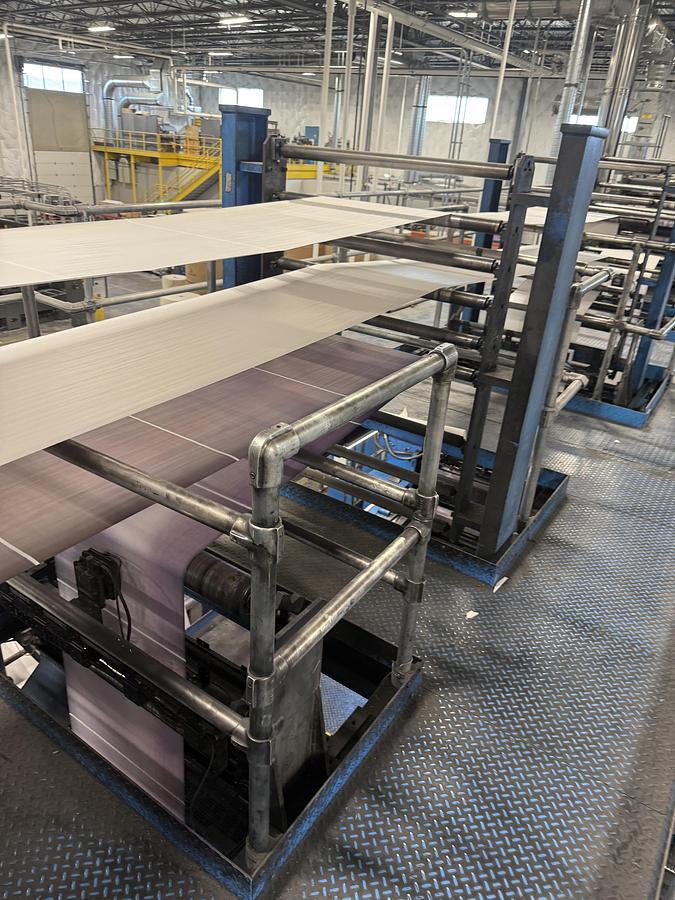

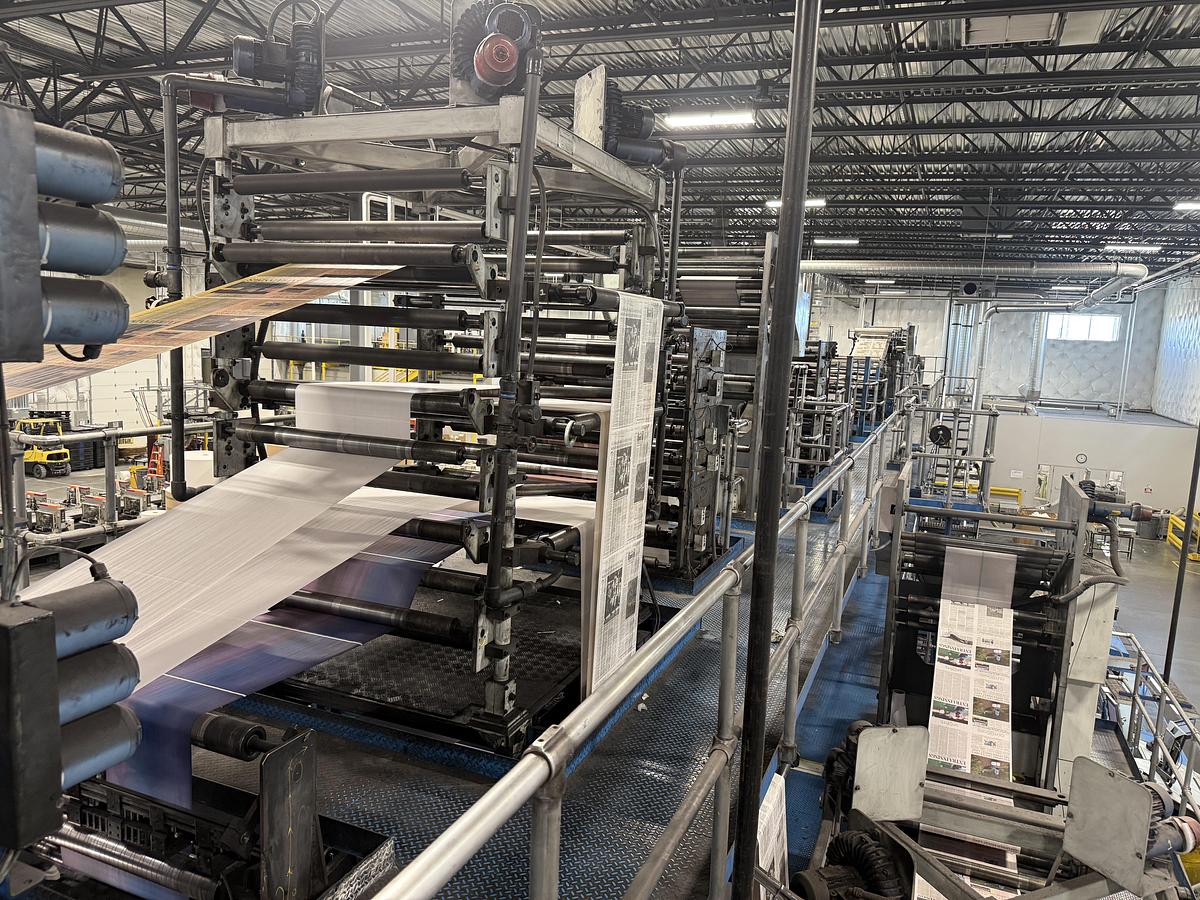

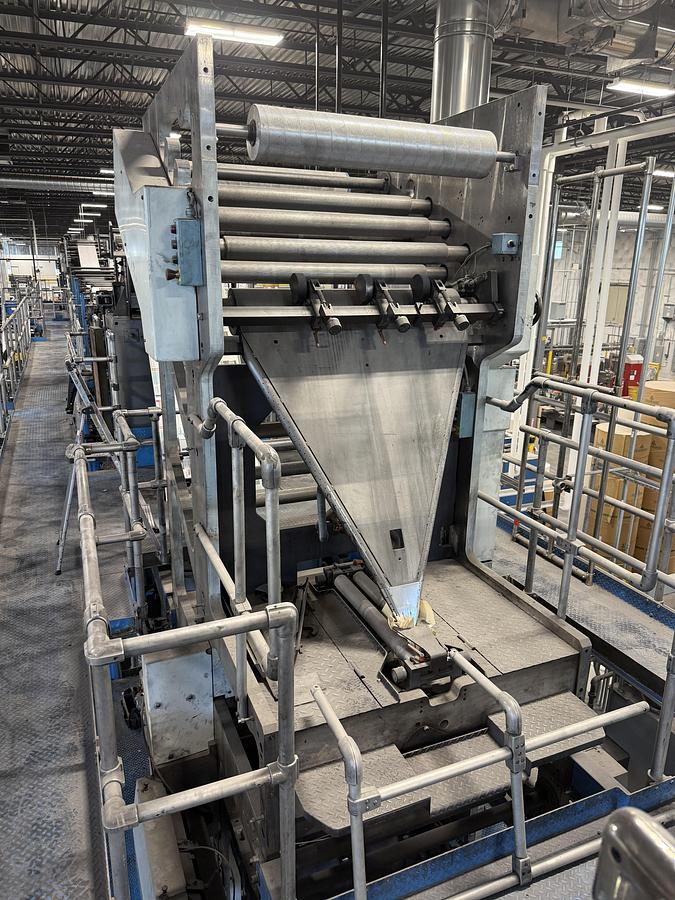

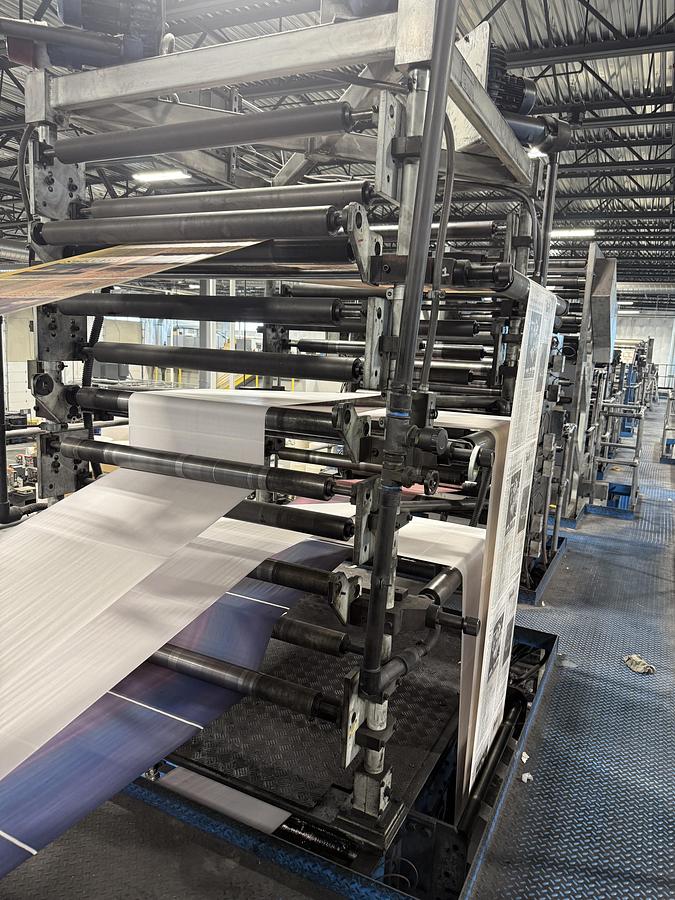

• (4) Megtec Pit-Mounted Angle Bar Assemblies w/ 2-Web Angle Bars & Blowers
• (5) 200 HP Harland Simon Drive System Upgrades
• (5) Between Unit Drive Assemblies for Motorized Placement between Footprints
• Pneumatic Driveline Clutches for "Selectability"
• Jardis J-150 Infeeds for 4 High Units
• Full-Page Motorized Compensators
• AWS Goss Oil Cooler Connections
• Footprint Inch Motors & Gearboxes
• 2 BEK Water Systems w/ Auto Mixer
• BEK Auto Max Ink Levelers

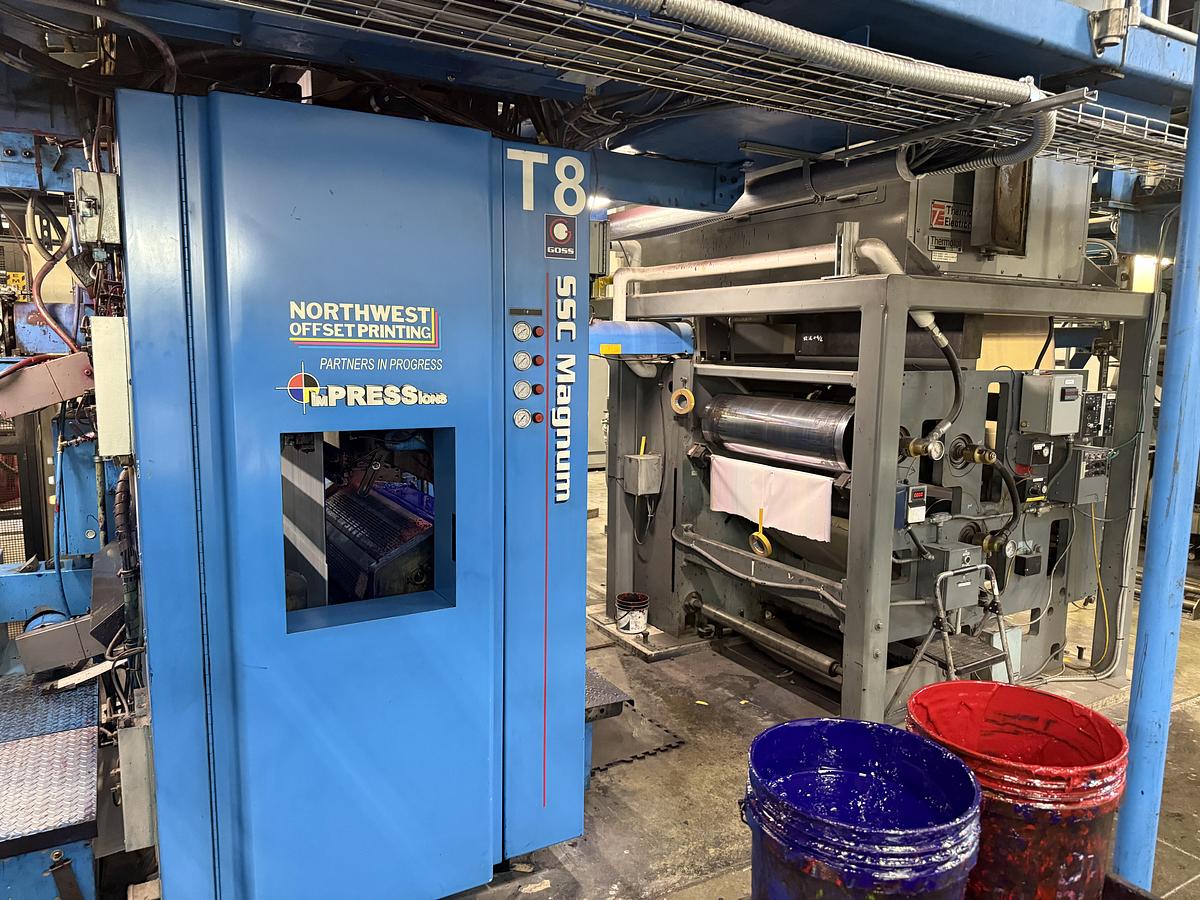

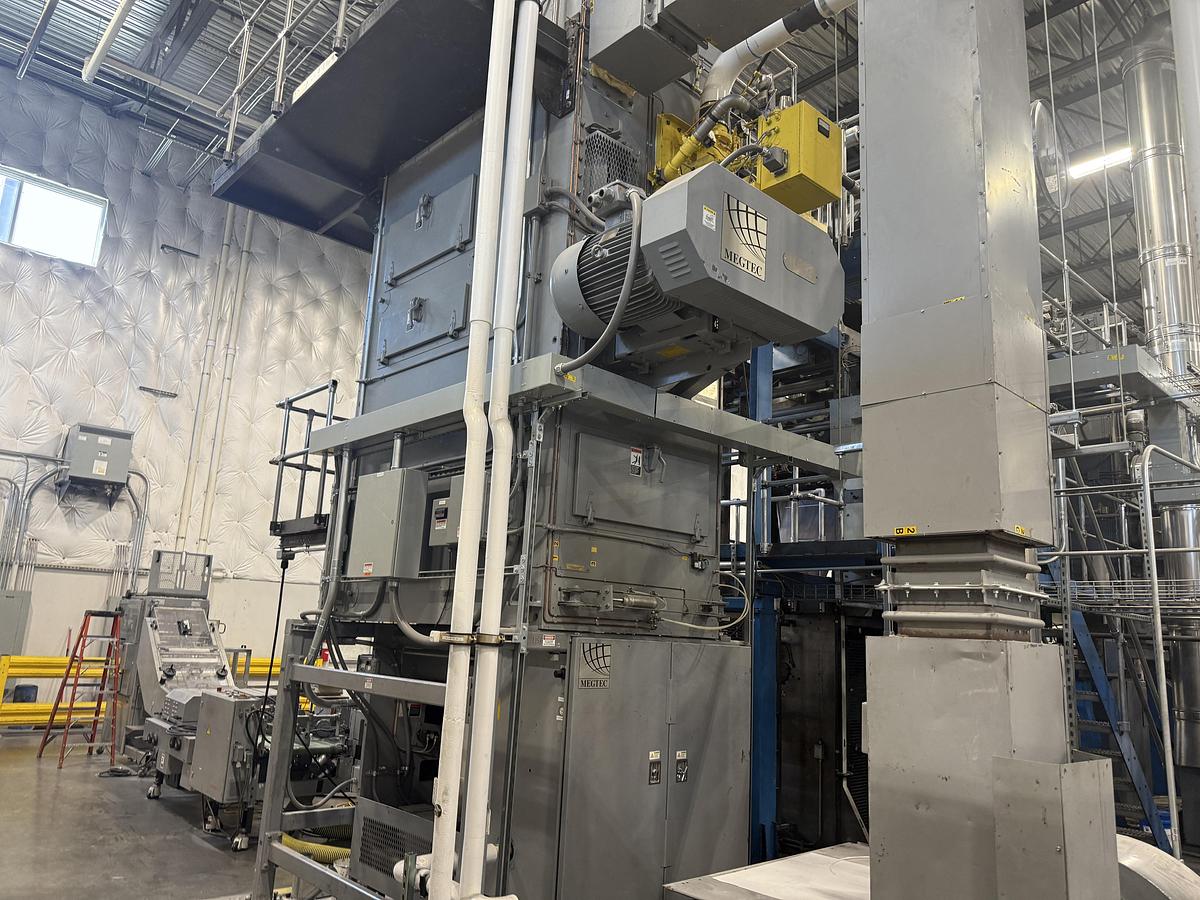

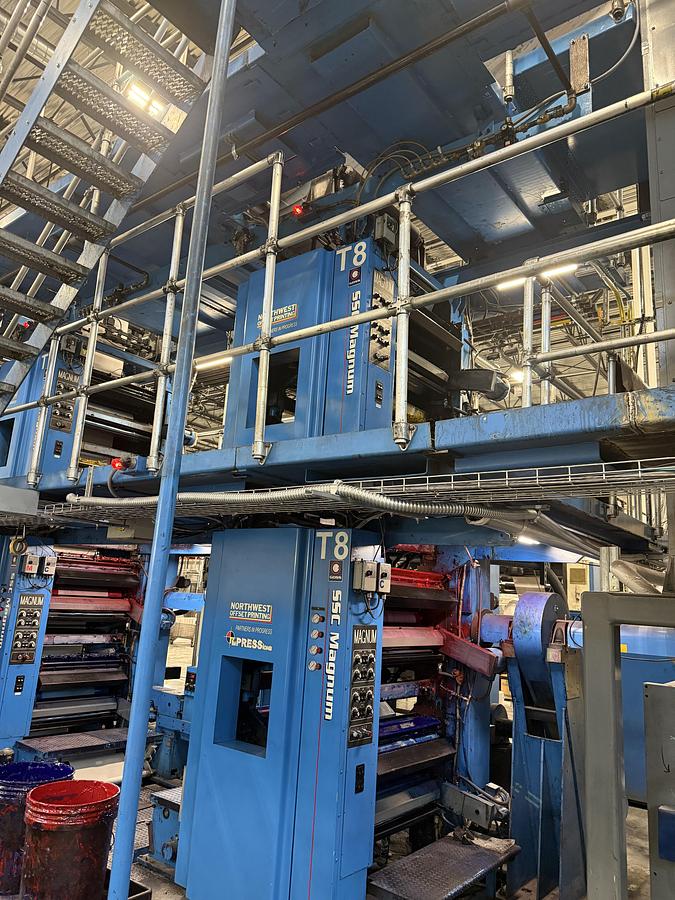

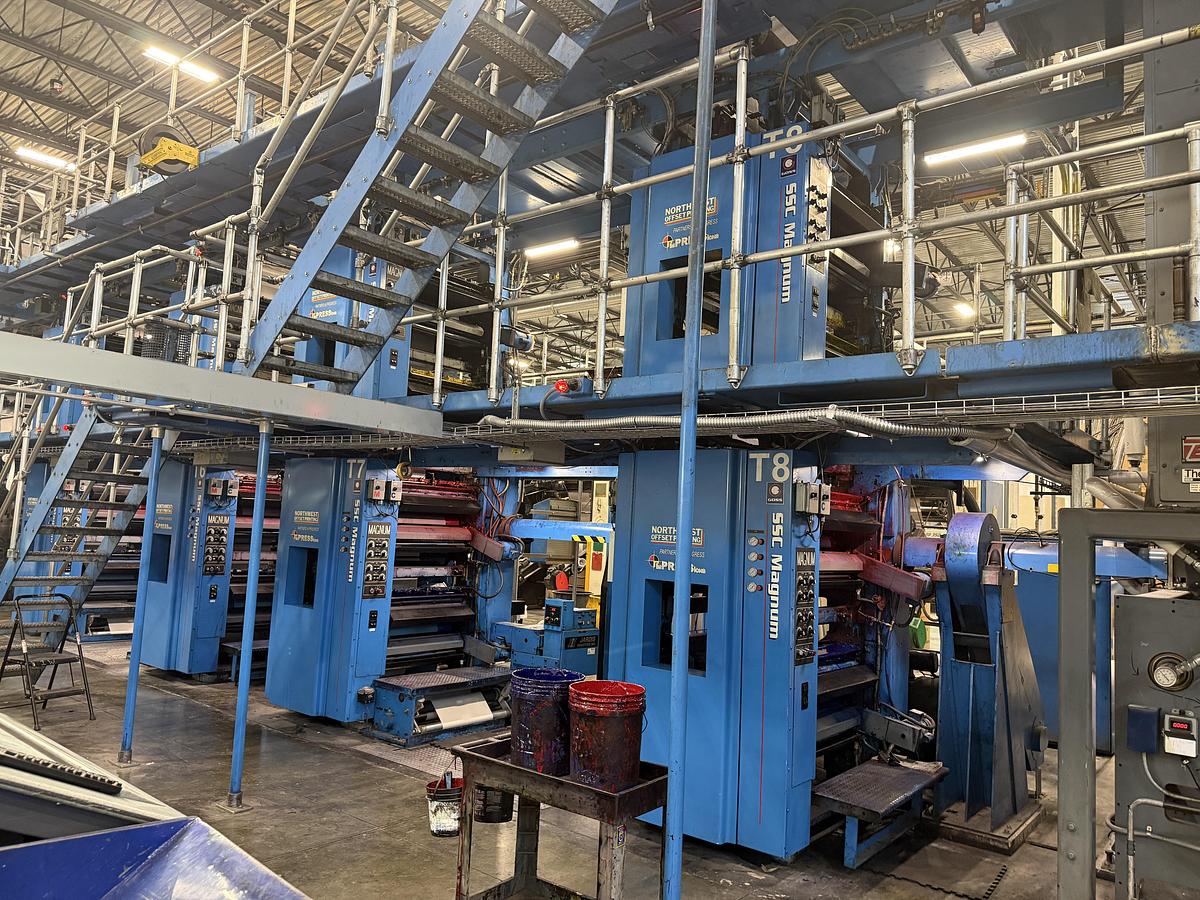

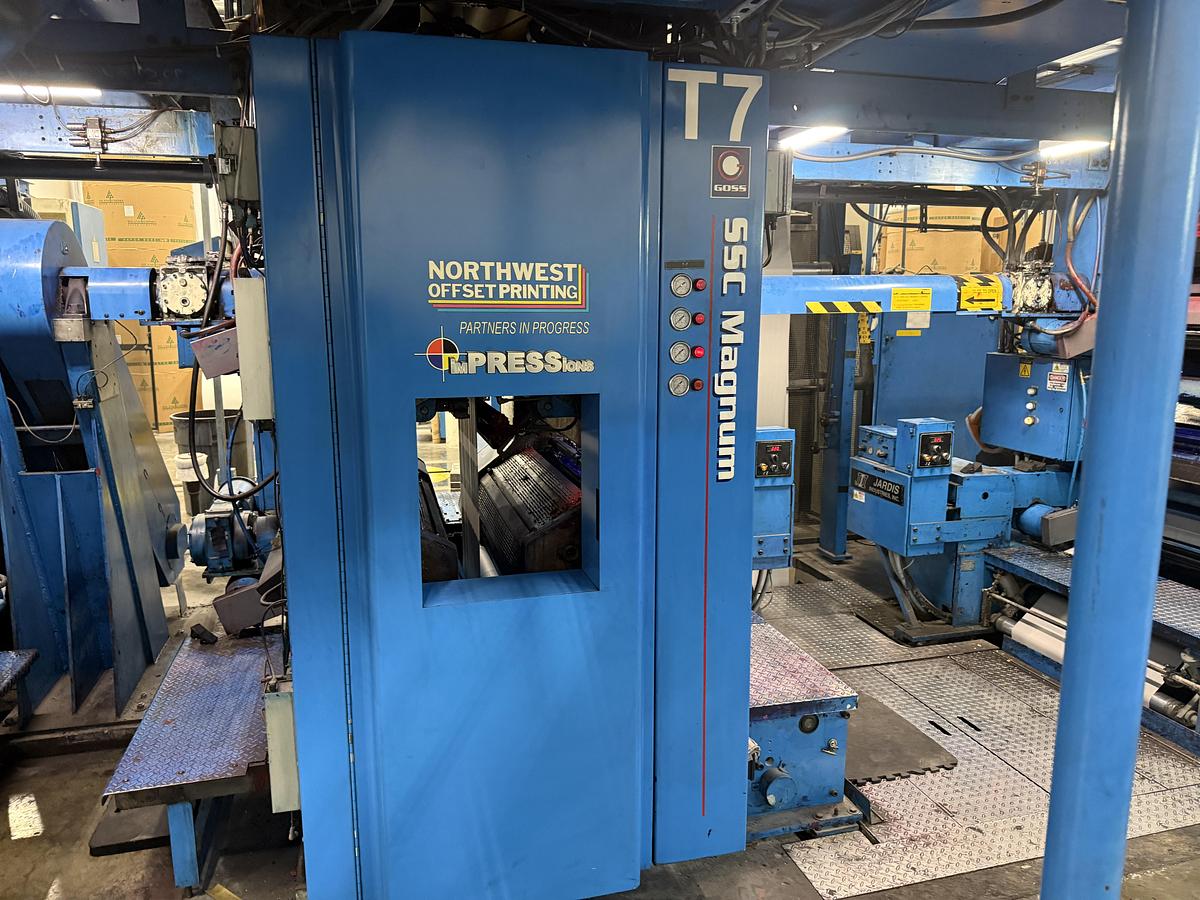

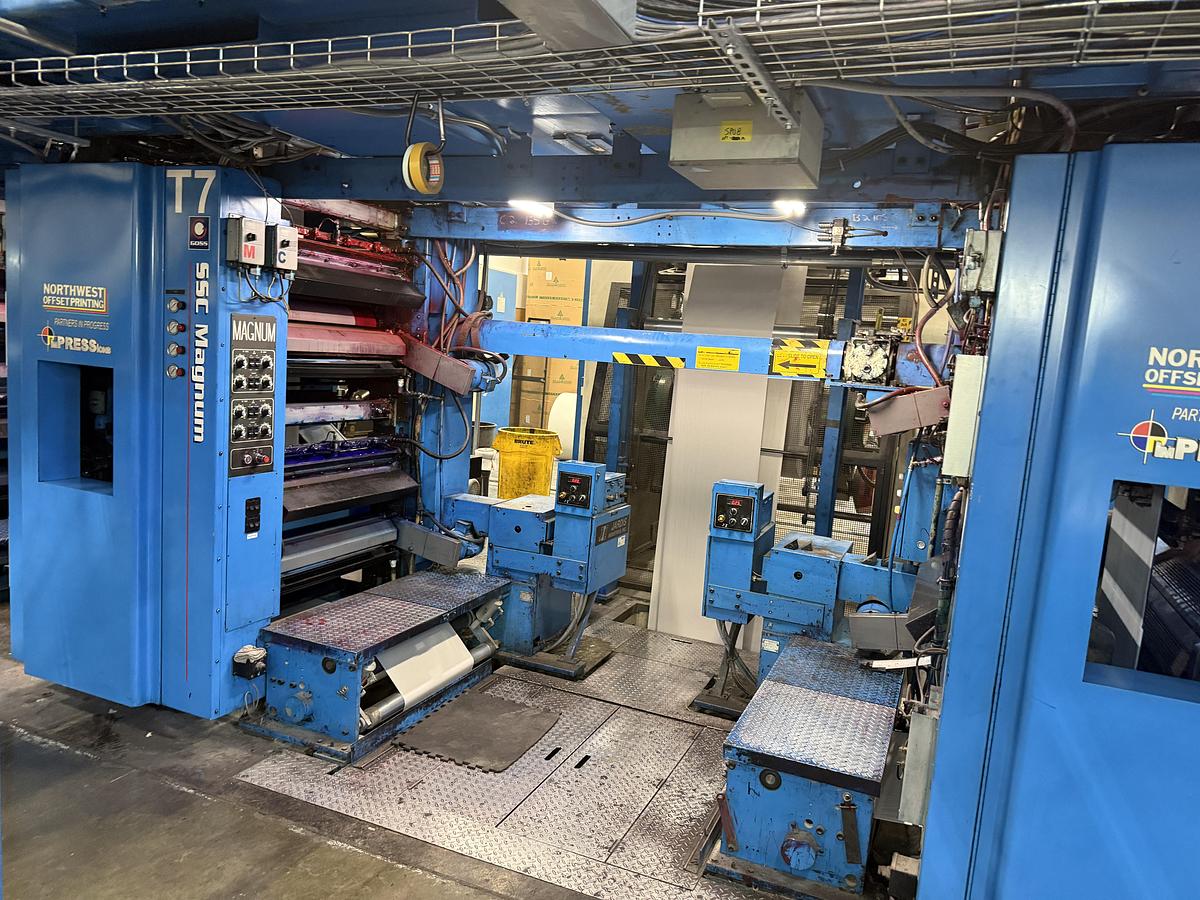

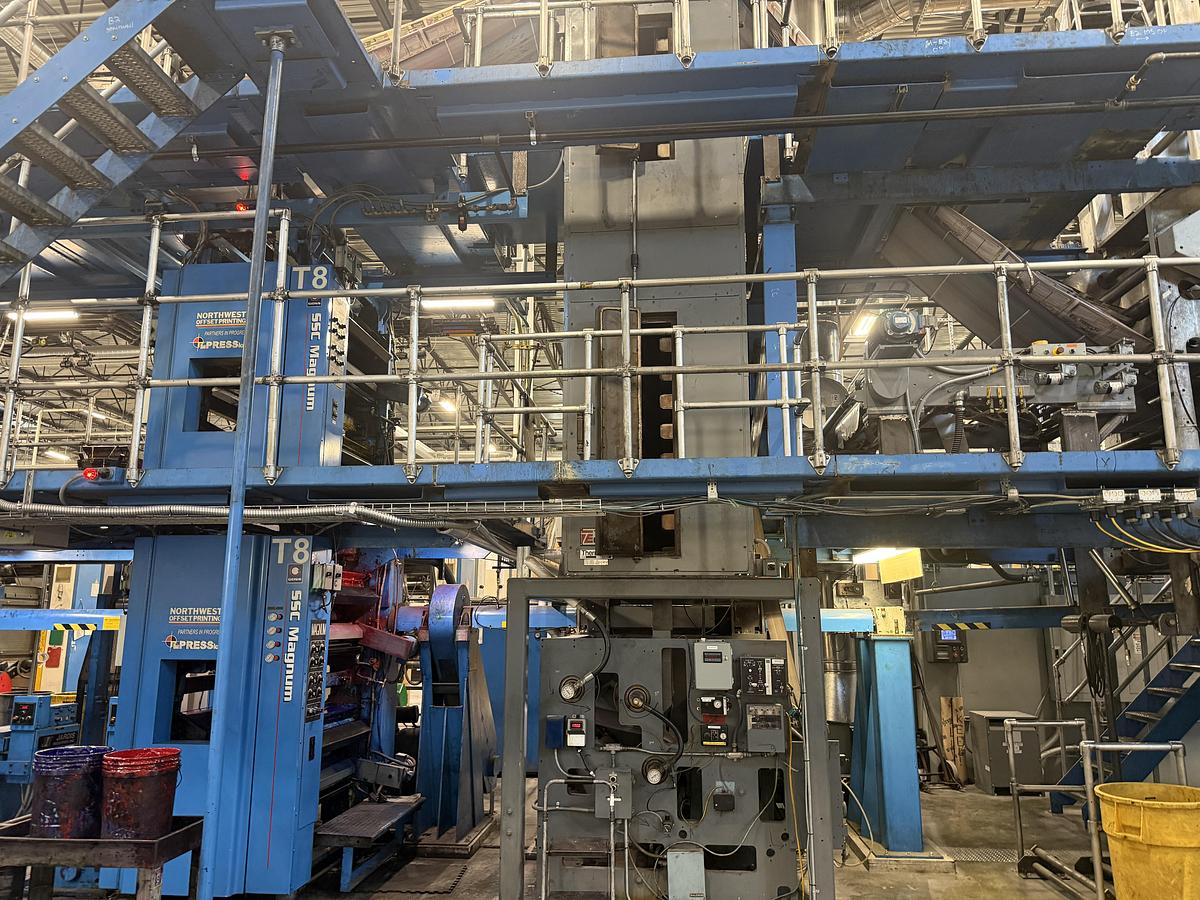

Towers 7 & 8 - (2) Megtec Oven Heatset Capabilities w/ Controls, Chill Rollers & Tilt Boxes

• Megtec 14t Thermo Electron Vertical 1 Web Heatset Dryer
• Martin Web Steering

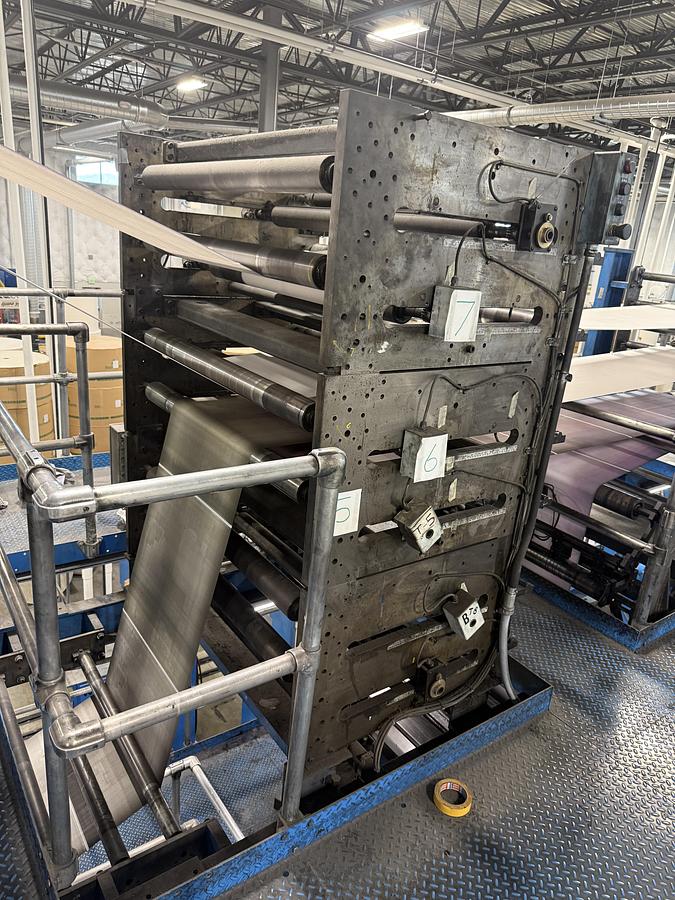

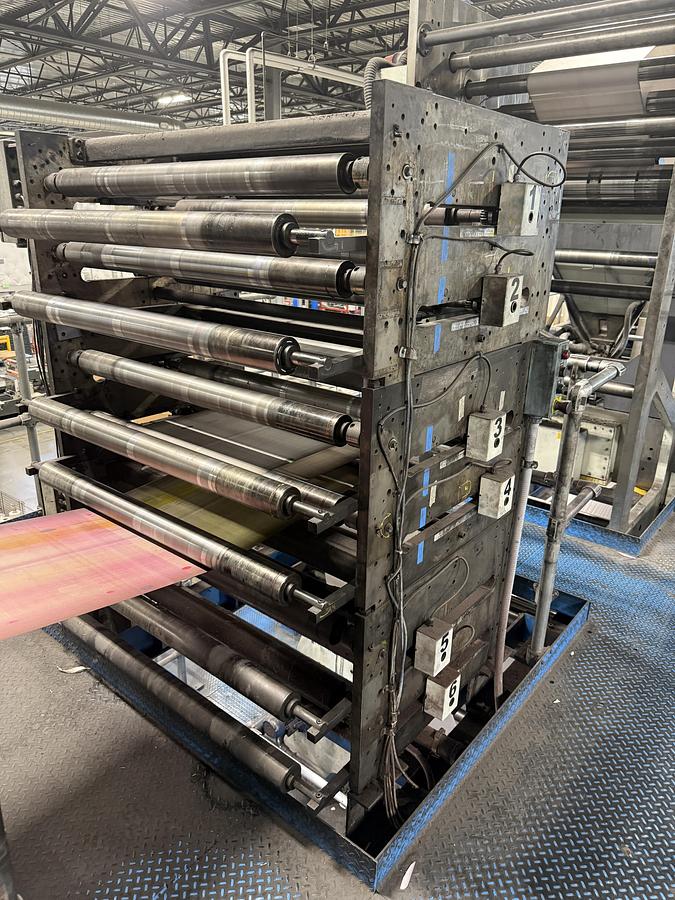

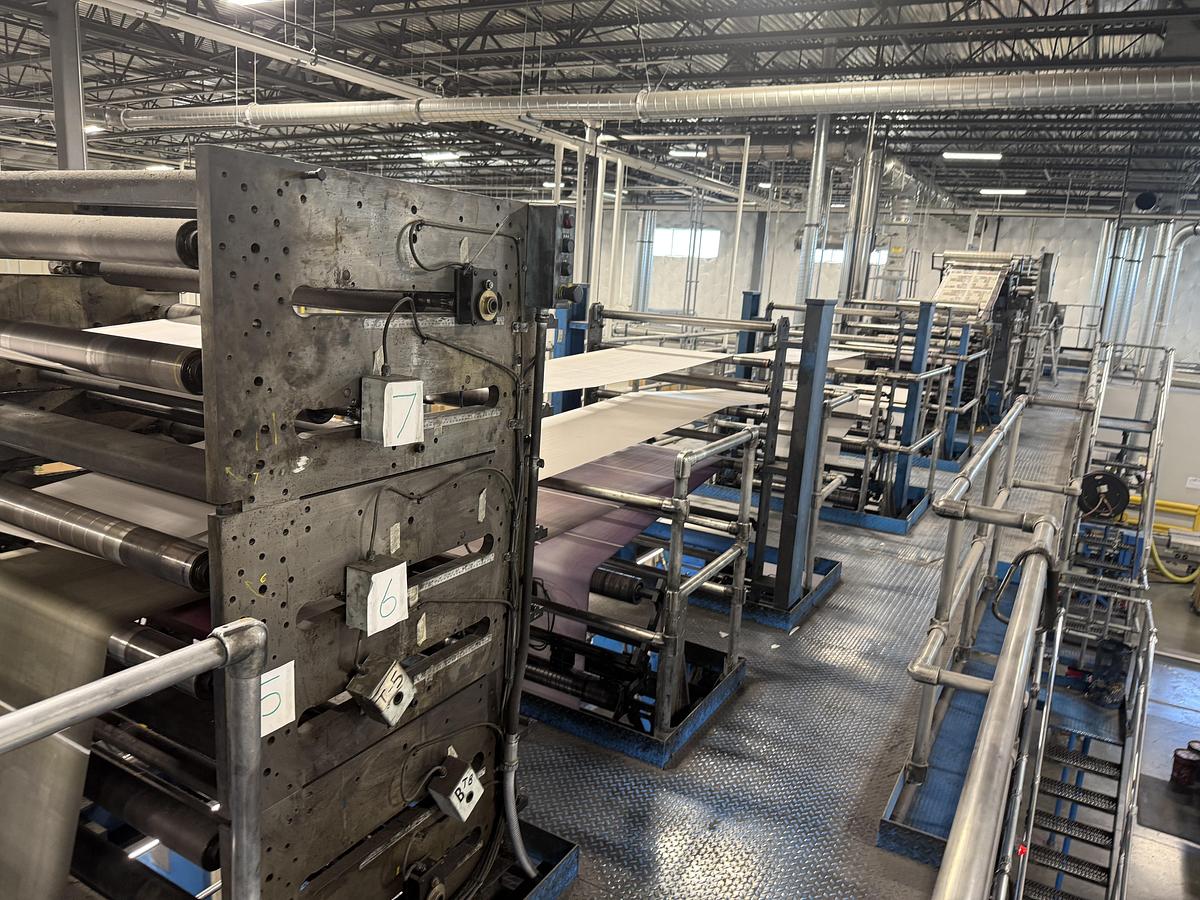

• (3) Underneath Chill Stands

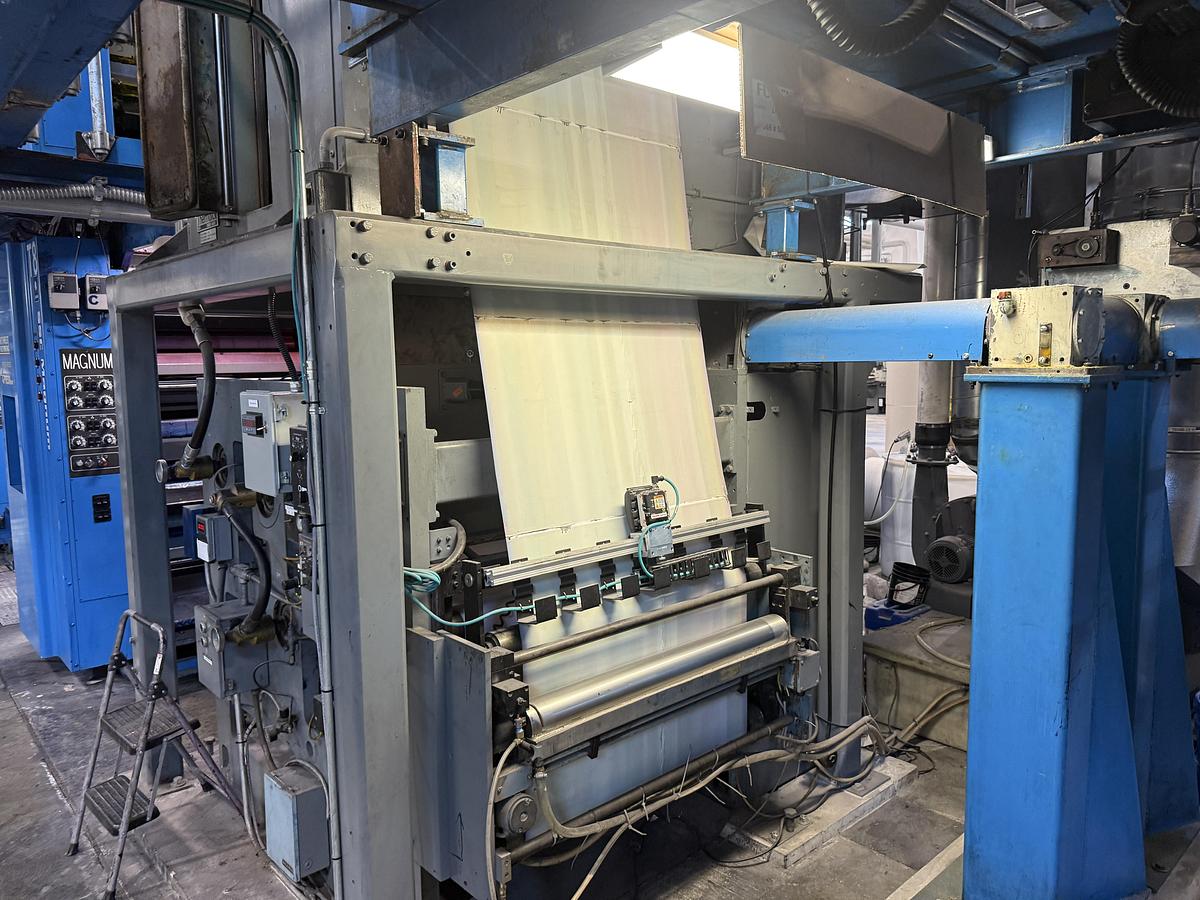

• Megtec VC-175-42 Vertical 1 Web Heatset Dryer
• Megtec CR1059 Chill Stand
• Megtec SC5000 Silicone Applicator
• Upgraded Siemens ProfiNet Drive & Controls
• Fife D-Max Web Guides w/ HMI
• Grater Roller Package
• Baldwin Compensator Compatible

(2) Gammerler Stacker Deliveries

Optional Rockbuilt or Gammerler RS 4 Knife Trimmers

Full Automatic CTP Systems Available
