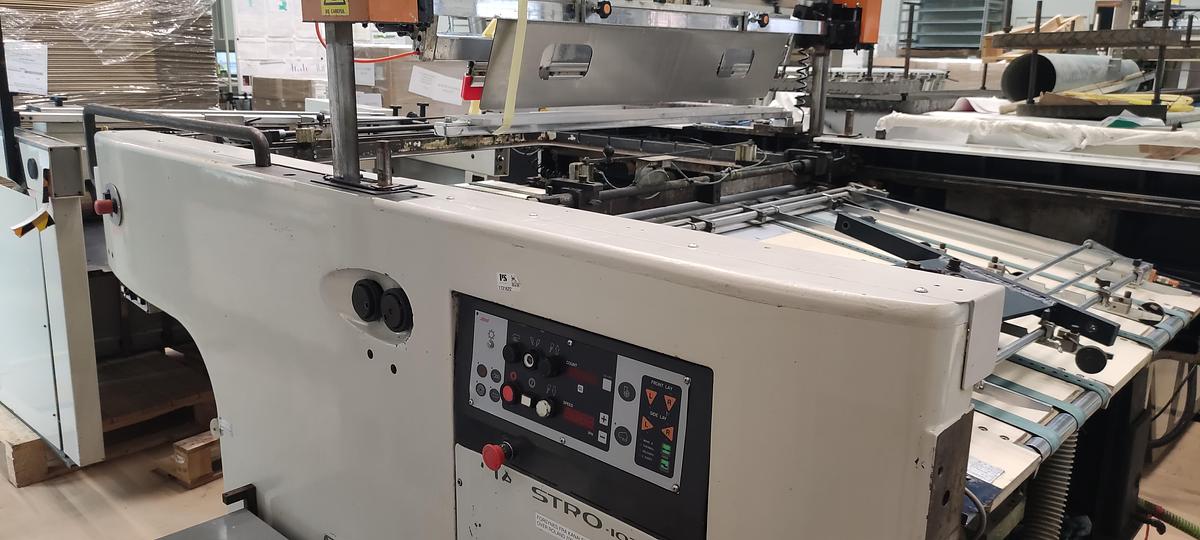

2001 Sakurai MS102A Automatic Screen Press

The combination of high precision and productivity - Fully automatic ultra-high precision rotary stop cylinder screen press.

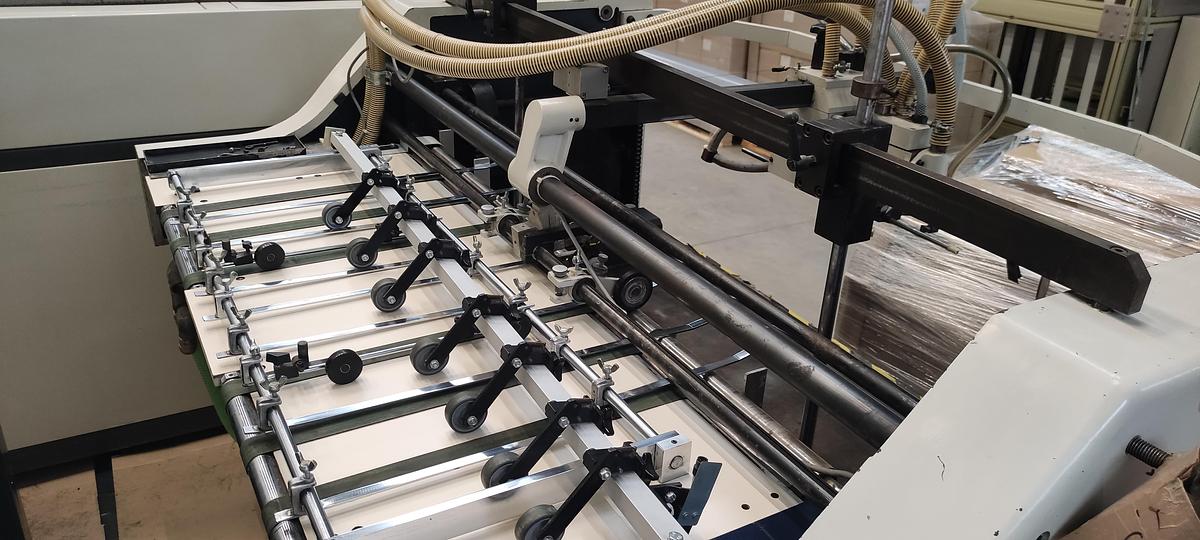

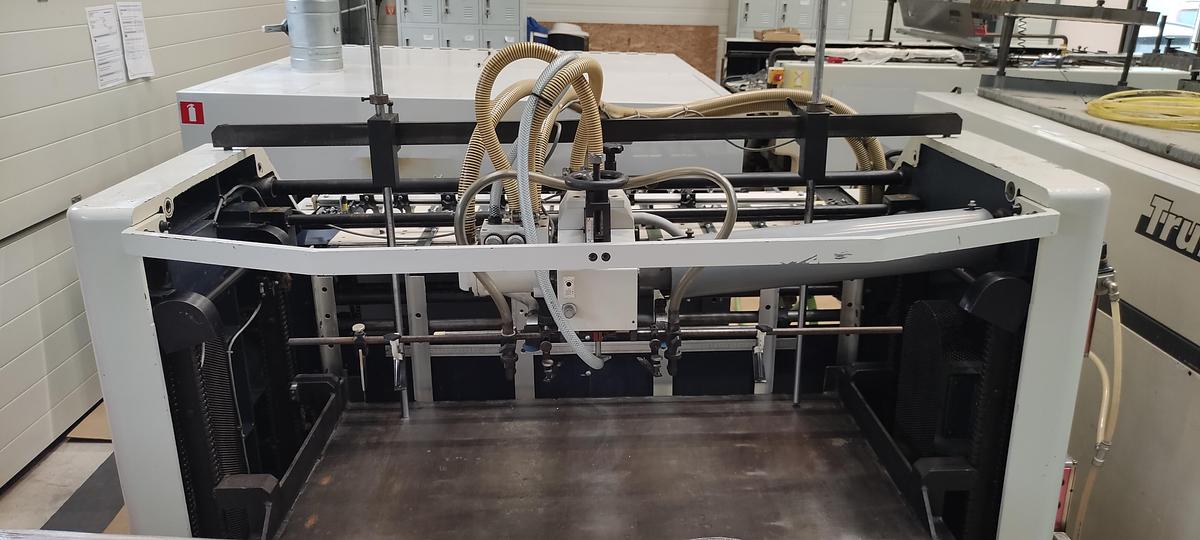

Automatic Feeder - Rear pick-up feeder which enables stable and smooth feeding of various substrates.

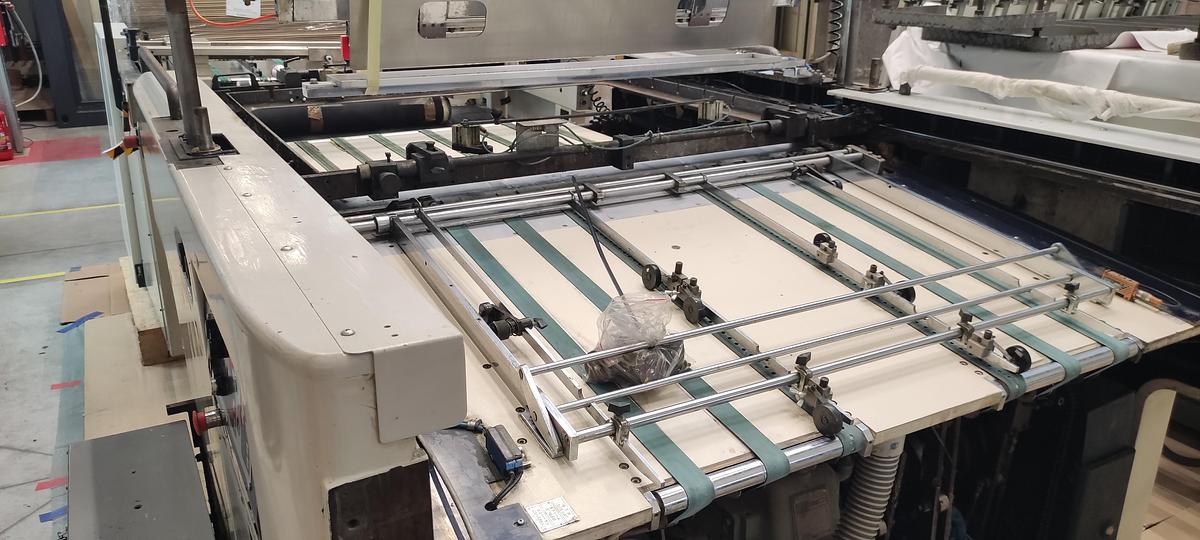

Feed Board - Designed to minimize scratching and static build up during transportation of the substrate.

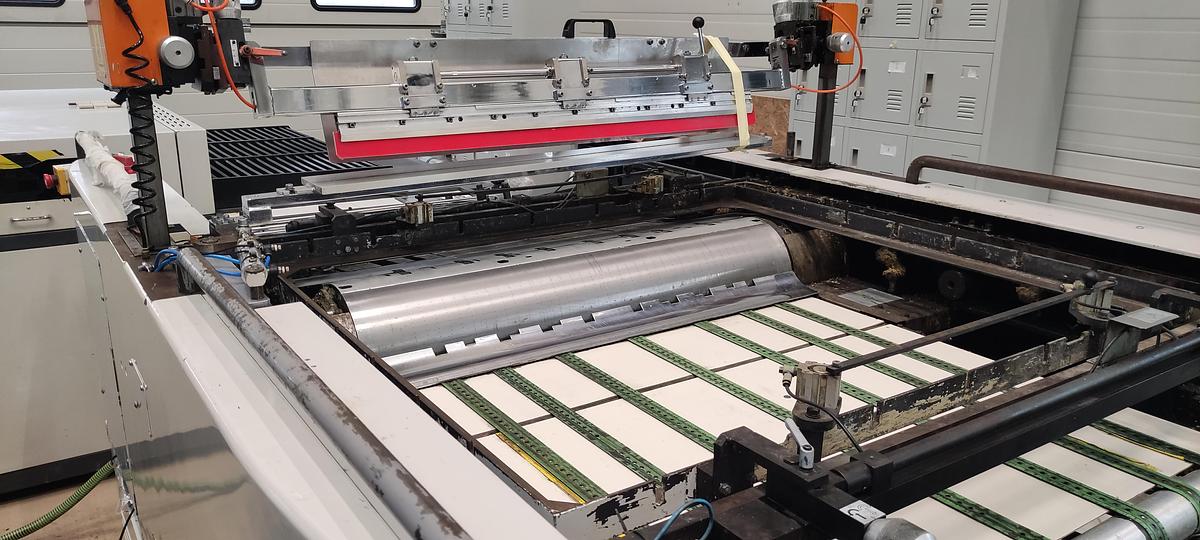

Stop Cylinder - Non-reciprocating, stop motion cylinder system ensures perfect registration and high quality printing.

Registration - A pair of linear bearings are used in the pull/push convertible side lays.

Screen Frame Pneumatic Lock Clamp - Simple toggle switch air cylinder clamps for holding the screen frame.

Squeegee Head & Cylinder - Driven by individual cams, and a two step action cam to help reduce shock on the screen mesh. Due to positive down cam action, pressure is evenly applied to the cylinder continuously, resulting in sharp dot reproduction and perfect solid printing.

Screen Frame Pull-Out - The screen frame can be unlocked and pulled out to the delivery end of the press so that the feed position of substrate can be checked, readjusted, and corrected.

Delivery Board Lowering Device - The delivery board can be lowered by 90 degree to allow easy access to the screen mesh for cleaning or to the squeegee and flood coater for fixing and unfixing.

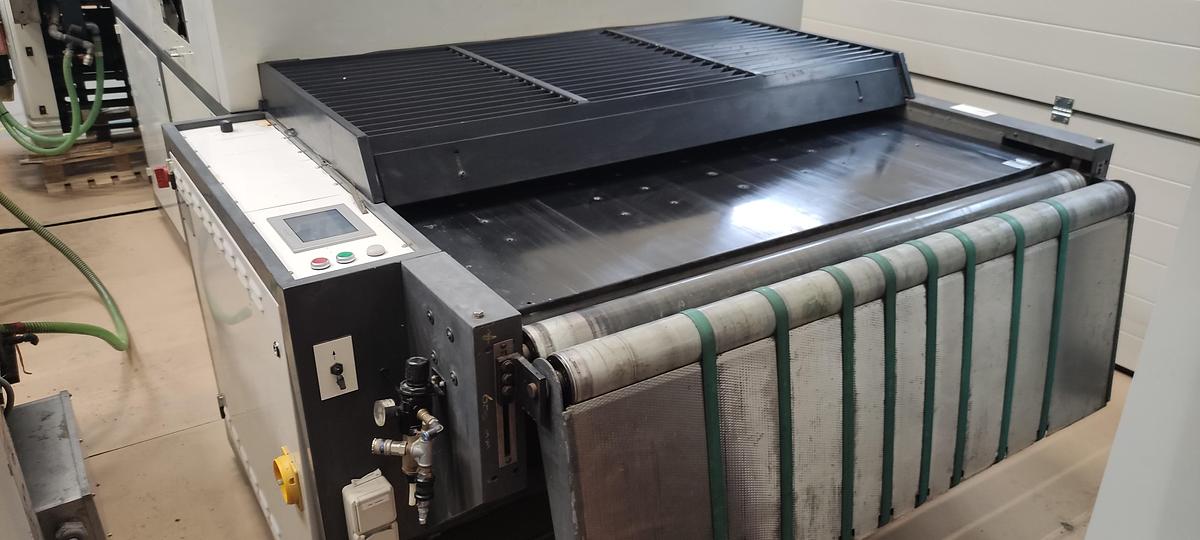

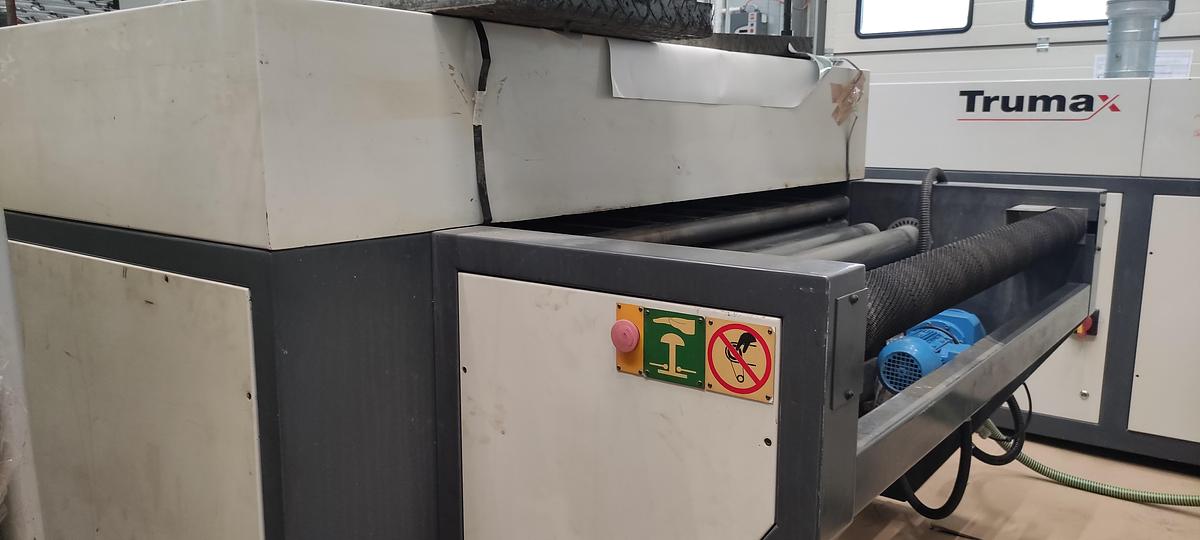

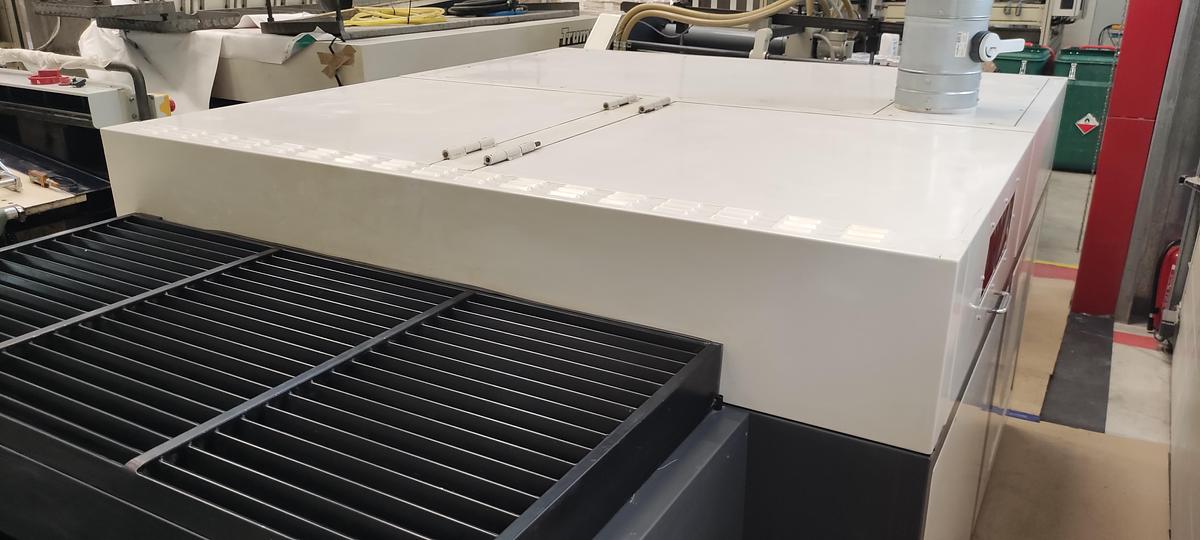

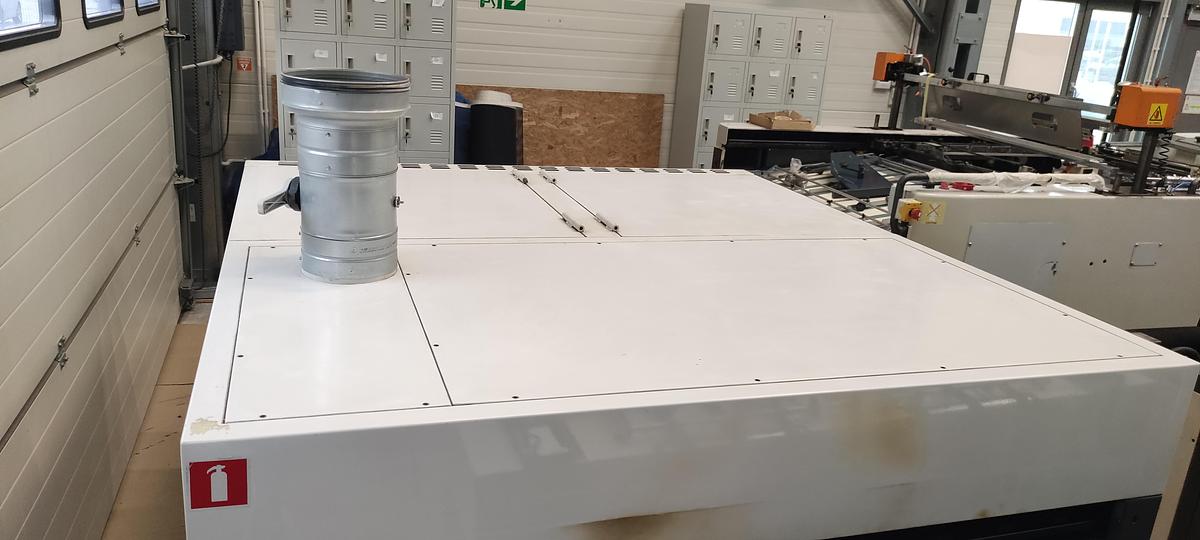

Natgraph UV Dryer w/ Hot Air Module

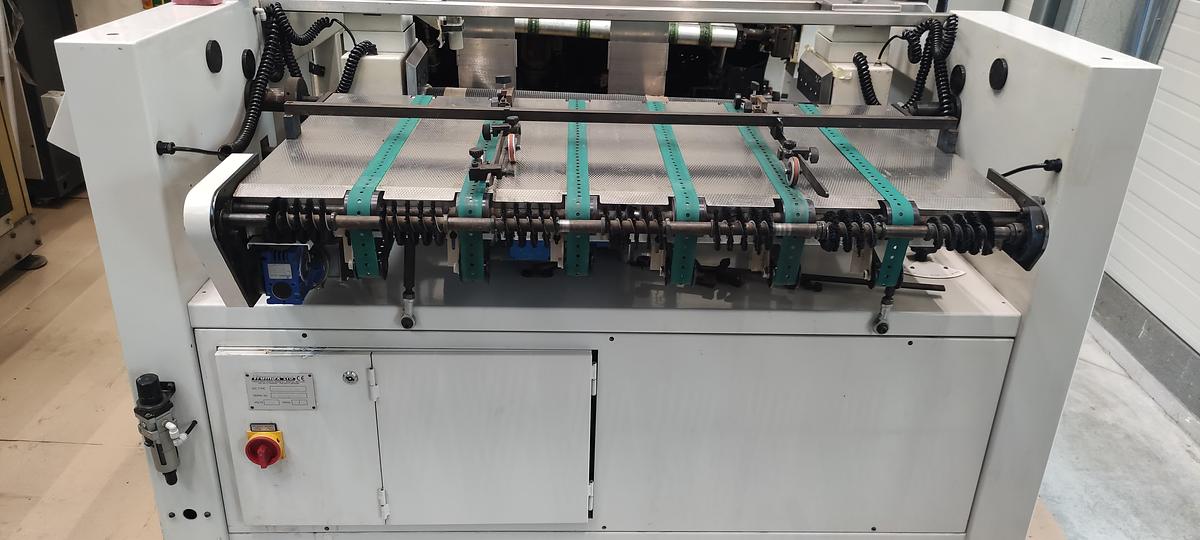

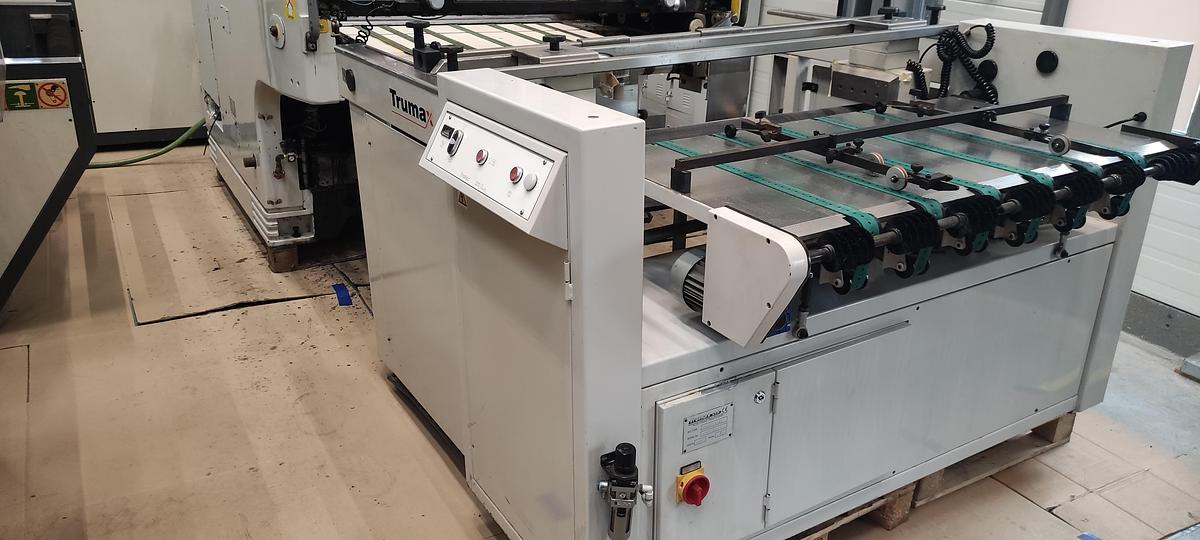

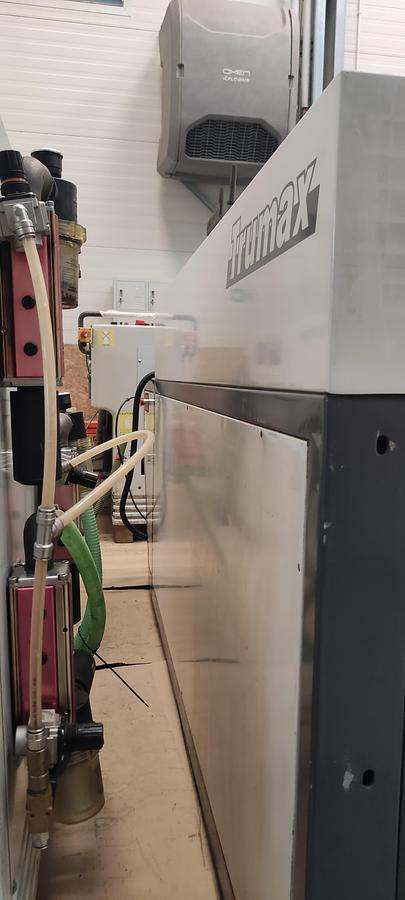

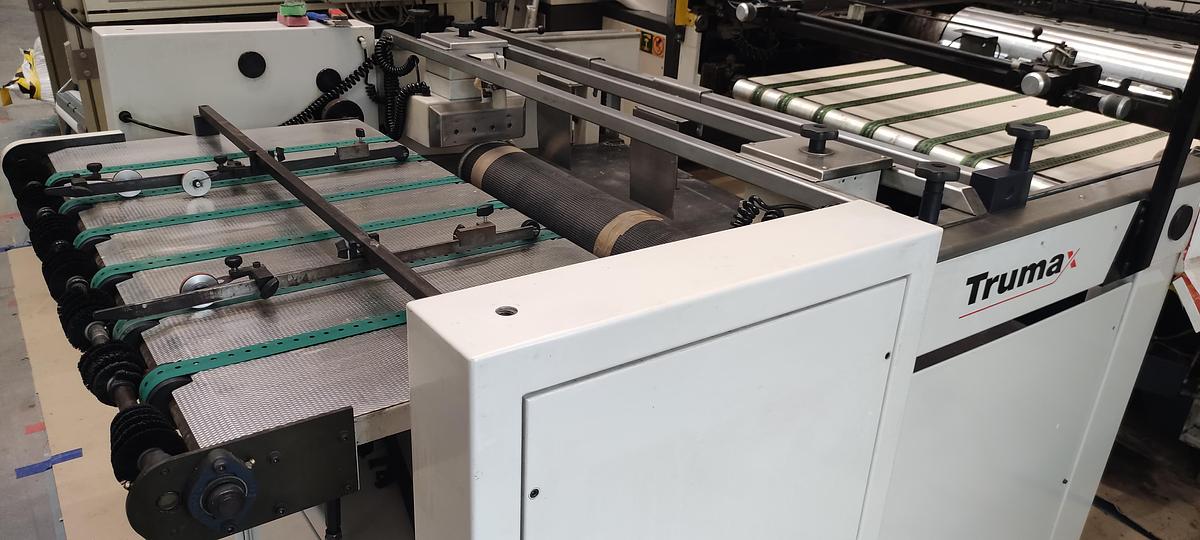

Trumax Hyperstack Stacker

Deep Pile Delivery

Specifications

Maximum Sheet Size: 41.5" x 29.625" (1,050 x 750mm)

Minimum Sheet Size: 16.625" x 11.75" (420 x 297mm)

Maximum Printing Size: 40.25" x 27.625" (1,020 x 700mm)

Printing Speed: 800 - 4,000 sheets per hour

Stock Thickness: 0.075 - 0.8mm
