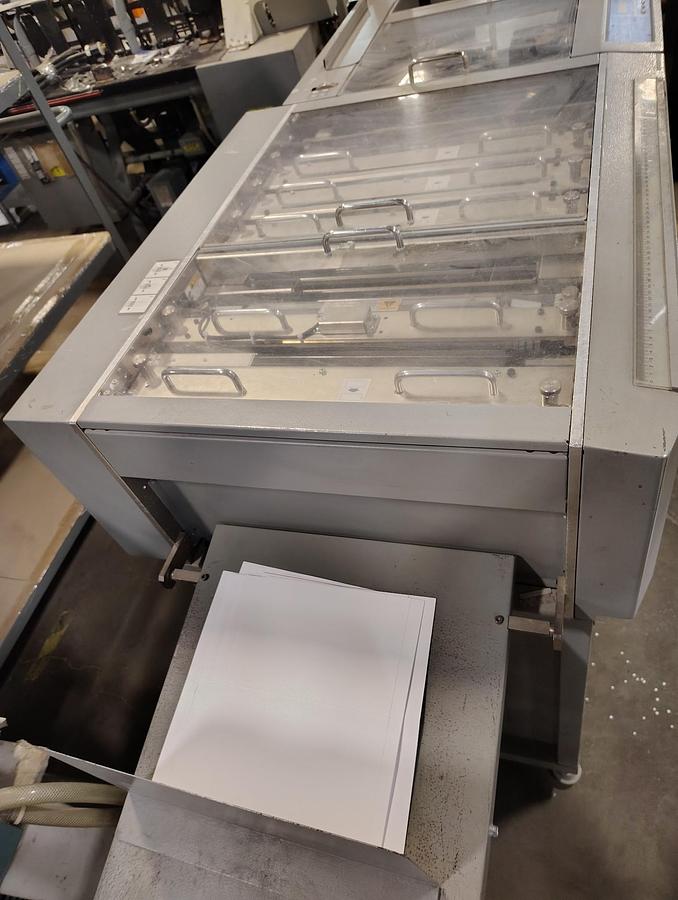

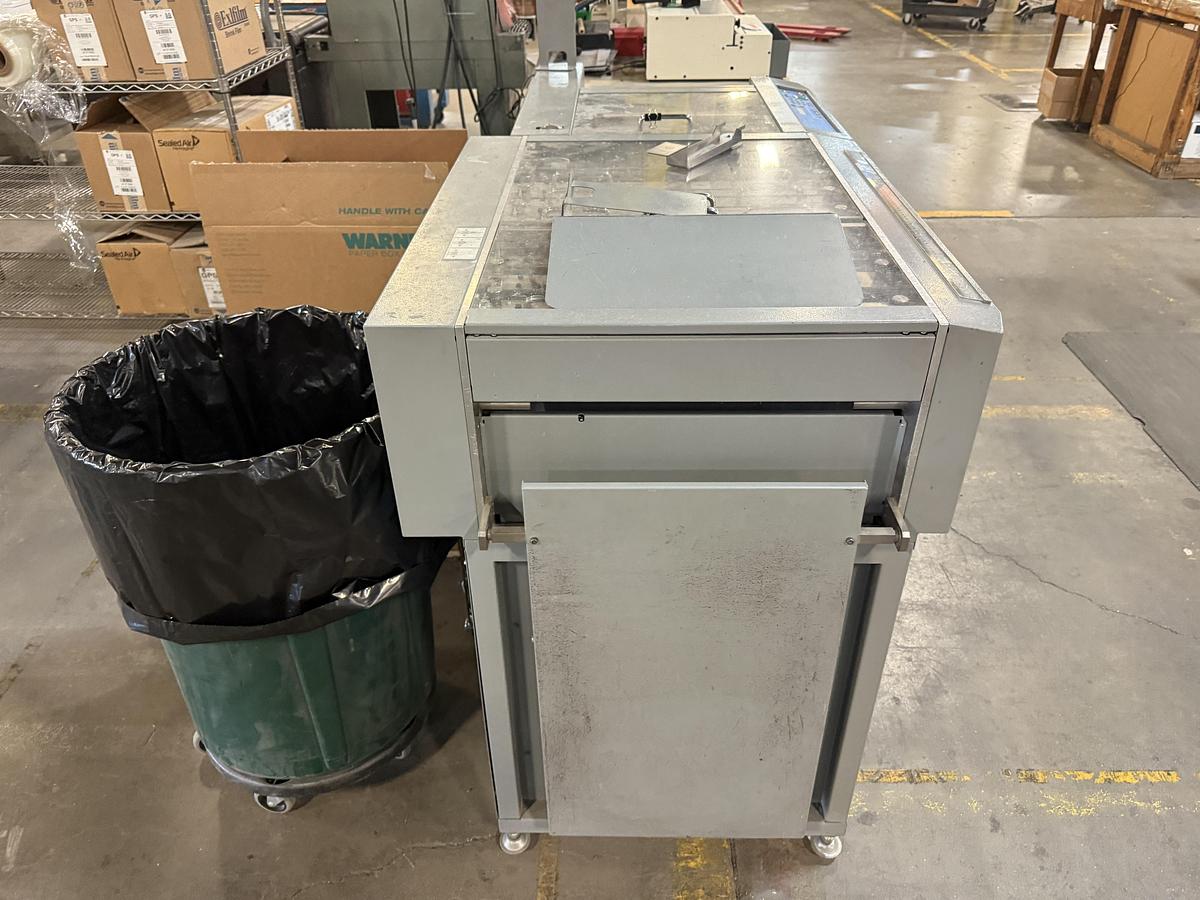

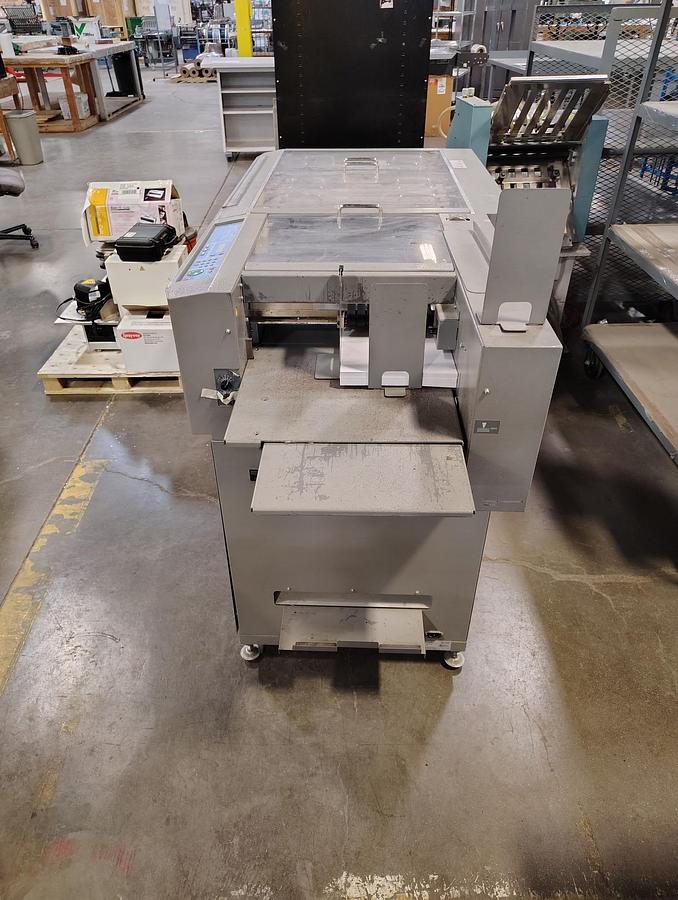

Duplo DC645 Slitter Cutter Creaser

The Duplo DC-645 is the ideal finishing solution for digital color documents. Unlike any in the industry, the DC-645 slits, cuts, and creases documents in a single pass at an incredible speed of 26 sheets per minute. Unattractive white borders and cracked spines of digitally printed documents are problems of the past as the DC-645 produces a wide variety of professional quality, full-bleed applications such as business cards, greeting cards, invitations, brochures, pamphlets, catalogs, posters, book/CD covers, photographs, and more by simply loading the automatic high-capacity feeder.

CONSISTENT ACCURACY

A barcode reader automatically sets up the system and reads the image registration mark so that all the operations of the machine are related to the position of the image on the paper rather than to the physical dimensions of the paper itself. This unique feature automatically corrects the problem of image drift inherent in many digital print engines. The system’s creasing capability eliminates image cracking problems also associated with digital prints. The DC-645’s vacuum feeding system minimizes the risk of marking or misfeeding, while an additional air knife compressor blows air with each feed cycle to aid sheet separation of heavier stock.

VERSATILE PRODUCTIVITY

Capable of performing 6 slits, 15 cuts, and 10 creases per sheet, maximizing productivity is guaranteed with the DC-645. This powerful digital finishing system features the ability to manage heavier substrates up to 350 gsm and larger sheet sizes, faster processing speed, easy customer-replaceable modules, and a rigid structure, making the DC-645 the ideal finishing product for heavy-duty production environments. Downtime is minimized when a built-in ultrasonic sensor detects double-feeds and automatically sends these sheets into a reject tray.

EASE OF OPERATION

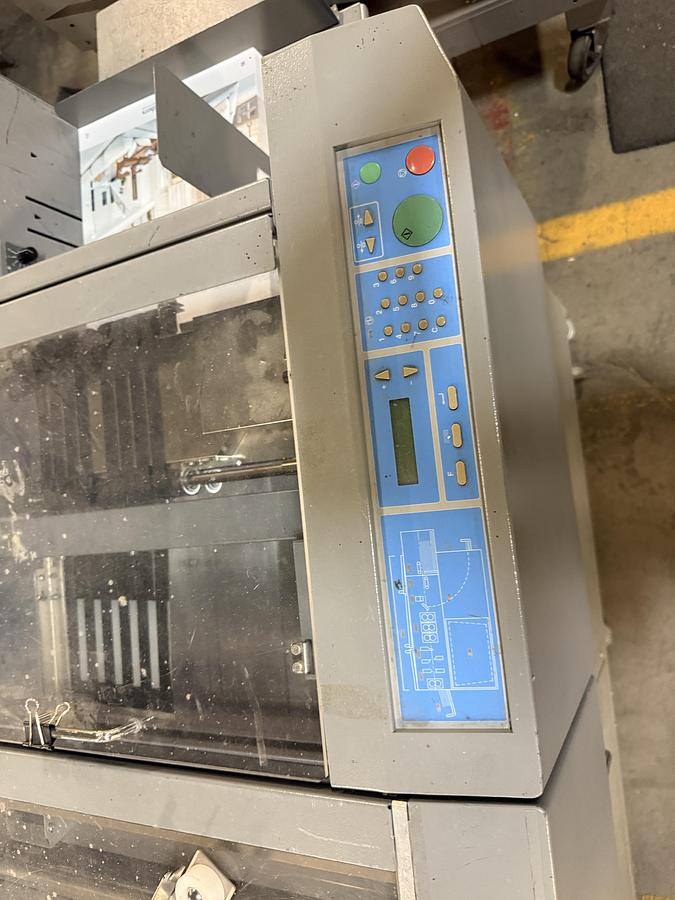

Job details can be programmed either on the control panel or via a computer with installed software. A barcode reader enables this unique system to automatically recall preprogrammed jobs for fast and easy operation. After each sheet is slit/cut/creased, margin, gutter slit, and gutter cut strips are automatically disposed into the waste bin as each finished sheet is neatly stacked on the output stacker.

SLITTER CUTTER CREASER SPECIFICATIONS

• Speed Up to 26 sheets per minute¹
• Paper Weight 80 lb. text – 130 lb. cover (110 gsm – 350 gsm)
• Paper Size Input: 210 mm x 210 mm (8.26” x 8.26”) to
• 370 mm x 650 mm (14.56” x 25.59”)
• Minimum output: slit width 48 mm (1.89”) x cut length 85 mm (3.35”)
• Paper Type Non-coated, coated, laminated²
• Input Tray Capacity 100 mm (3.93”)

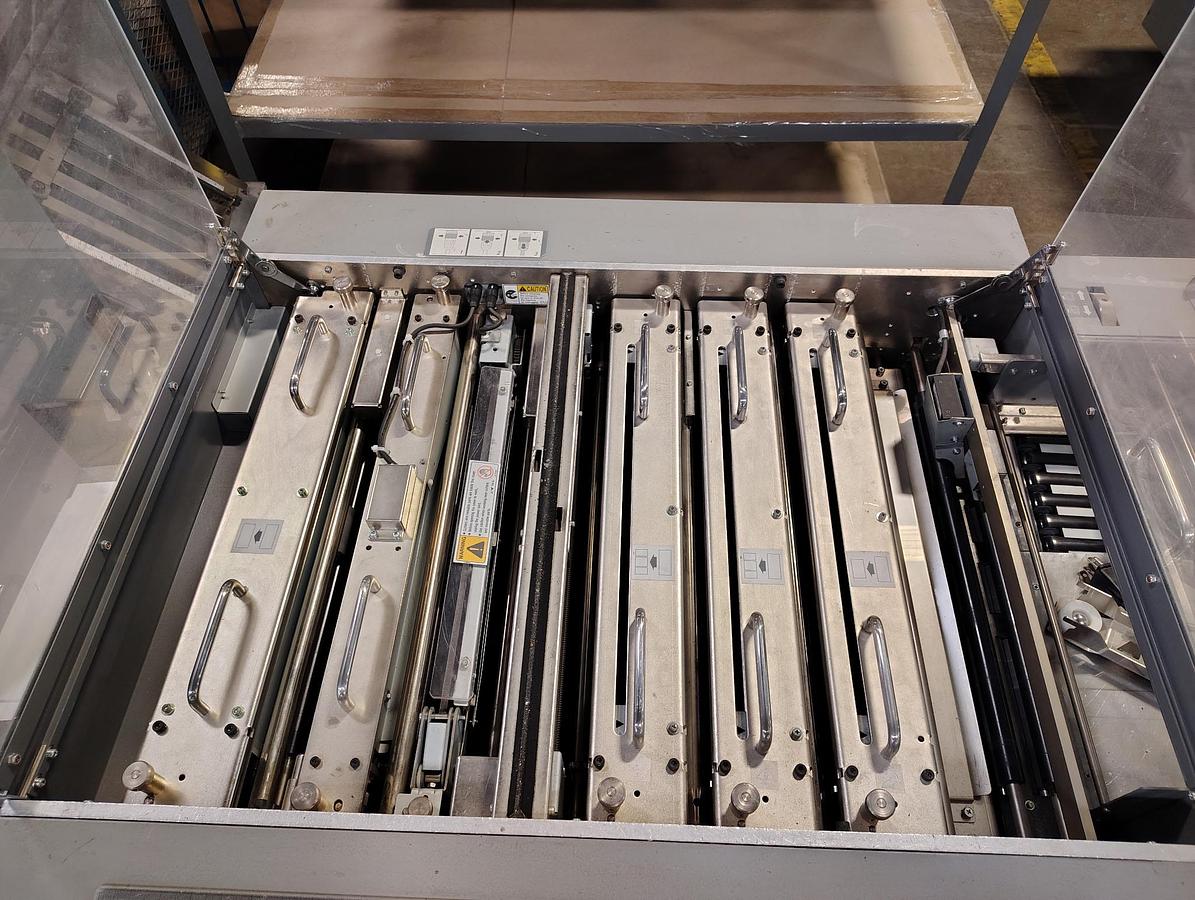

• Slitters Six rotary slitters (two margin and four center slitters)
• Slit Accuracy ±0.2 mm (±0.3 mm for business cards)
• Margin Slit Width 3.2 mm – 40 mm from paper edge
• Gutter Slit Width 5 mm – 15 mm (gutter strips wider than 15 mm will output on stacker tray)
• Cuts Up to 15 cuts per sheet
• Minimum Cut Length Lead edge cut: 3.2 mm
• Gutter cut: 4 mm
• Trail edge cut: 5 mm
• Cut Accuracy ±0.2 mm (±0.3 mm for business cards)³
• Creases Up to 10 creases per sheet
• Crease Accuracy ±0.2 mm on fi nished size³
• Crease Depth Adjustment Three steps
• Gutter Defl ector Up to two gutter slits per sheet
• Stacker Capacity 140 mm (5.5”)
• Standard Features Maximum 80 job program memory; proof feed mode (process one
• sheet); job program computer interface (with software installed) via USB
