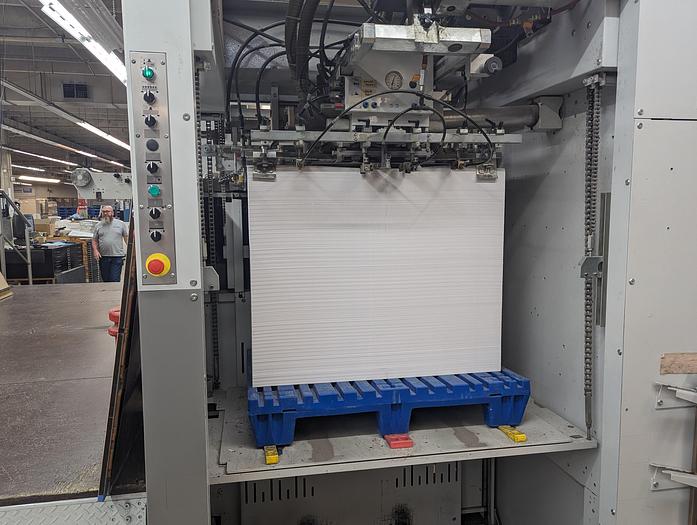

2012 Bobst Visioncut 106 LE Die Cutter w/ Stripping

Currently installed, under power, and in production. Exclusively owned by CES. Call or e-mail to schedule a demo and inspection.

The Bobst Visioncut 106 LE folding carton die cutter is fast, versatile, and easy to run. Capable of producing full die-cut and waste stripped sheets, this late model machine will transform your production floor. With recently replaced chains and grippers, this machine is ready to go.

BOBST Smart Feeder

Continuous Feed Table

Optical Lateral Register for Contactless Sheet Registration

Advanced HMI w/ Set-up Guidance

Autoplaten with Micrometric Adjustment, Quick Lock Die Cutting Chase, and Motorized Cutting Force Adjustment

Bobst Centerline

Stripping Station w/ Quick Lock Frame

Self-Cleaning Sheet Braking Device

Pile Delivery for Continuous Production

Maximum Run Speed: 8,000 sheets per hour

Maximum Sheet Size: 41.73” x 29.92” (1060 x 760mm)

Minimum Sheet Size: 15.75” x 13.78” (400 x 350mm)

Cutting Force: 286 Tons

Carton up to 200 g/m2

Corrugated up to 4mm

Machine Dimensions: 23.56' (7.18m) by 19.13' (5.83m)
