2022 Edale FL5 Carton Production Demo Press

2022 Edale FL5 Carton Production Demo Press

Contact us for price

orCall +1 847-450-0786


Maximum Web Width: 20.1" (510mm)

Maximum Print Width : 19.7" (500mm)

Print Repeat: 8" - 24" (203mm - 609mm)

Stock Range - 0.5 - 24 pt

Maximum Run speed: 660 Feet/Minute

Hours: Less than 100

FL5 XL Unwind & Infeed Unit – 60” (150mm) Maximum Roll Diameter

TEKNEK Double-Sided Web Cleaner

MEECH VacClean Contact Web Cleaner for Carton Applications

VETAPHONE Single-Sided Corona Treater (3.0 kW)

(8) FL5 Flexo Print Stations

  • UniPrint – Consistently high print reproduction whatever the format size
  • AiiR – Motorized print pressure & register control
  • Gearless Impression
  • Set & Forget Impression – Eliminates impression adjustments between format changes
  • On-the-fly setup – Reduces setup times by setting print stations on the run
  • Pre-Register – Minimal material wasted during register setting
  • Dual Axis Servo Drive – Precision tension control for exceptional registration
  • QC Ink System – Color changes in under 90 seconds
  • Print to Mark Register – Consistent print quality throughout the job

GEW ARC UV Dryer System

Chilled Impression Roller Assembly

Turn Bar Assembly for 4/4 Printing

(2) Lamination / Foil Modules

  • Laminate or foil unwind and driven rewind 23.5” (600mm) diameter
  • Moveable cold foil or UV lamination nip roller

EZ REG – Autonomous Print Register Control System

  • Automatic register set-up and continuous register monitoring in X & Y direction
  • Job data storage and recall
  • Ensures consistent quality and control through print run

BST Powerscope 5000 Web Viewing System

Edale FDC 600 Flat Bed Die Cutting System for Carton Production

  • Maximum Stroke Length: 28”
  • Maximum Cutting Force: 165 tons
  • Maximum Diverging Card Delivery: 4 across
  • Maximum Performance: 13,000 impressions/hour

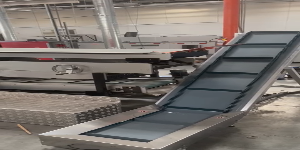

  • Waste Stripping & Waste Conveyor

Modular Rotary Die Cutting System for Label & Film Production

  • Servo Driven
  • Removable Anvil Roller for Top & Bottom Cutting
  • Motorized Linear Register
  • Automatic Cut to Mark Register Control
  • Waste Matrix Rewinder – 32” (800mm) Roll Capacity

FL5 Rewind Module for Label & Film Production

At Capital Equipment Solutions, we pride ourselves on being your go-to partner for new and pre-owned printing and packaging equipment, as well as turnkey solutions, including delivery and installation. Our extensive inventory features high-quality, late-model equipment from industry-leading manufacturers such as Muller Martini, Bobst, Brausse, Heidelberg, Komori, KBA, MANRoland Goss, and more. In addition to our turnkey services, our expert operations team can assist with insurance restoration, removals, relocation, and plant liquidation. We’re dedicated to providing you with personalized guidance and comprehensive solutions that cater to your unique production requirements. Don’t forget to explore our full range of offerings on our website, and feel free to reach out to our expert team for any questions or assistance.


ModelFL5 Carton Production Demo Press
